Main Stationary Tools

This is my selection. I’ve had the opportunity to retool once. The first time bought cheap and second time the best of breed. My advice to novice, get the best first and skip the frustrations and cost to replace later.

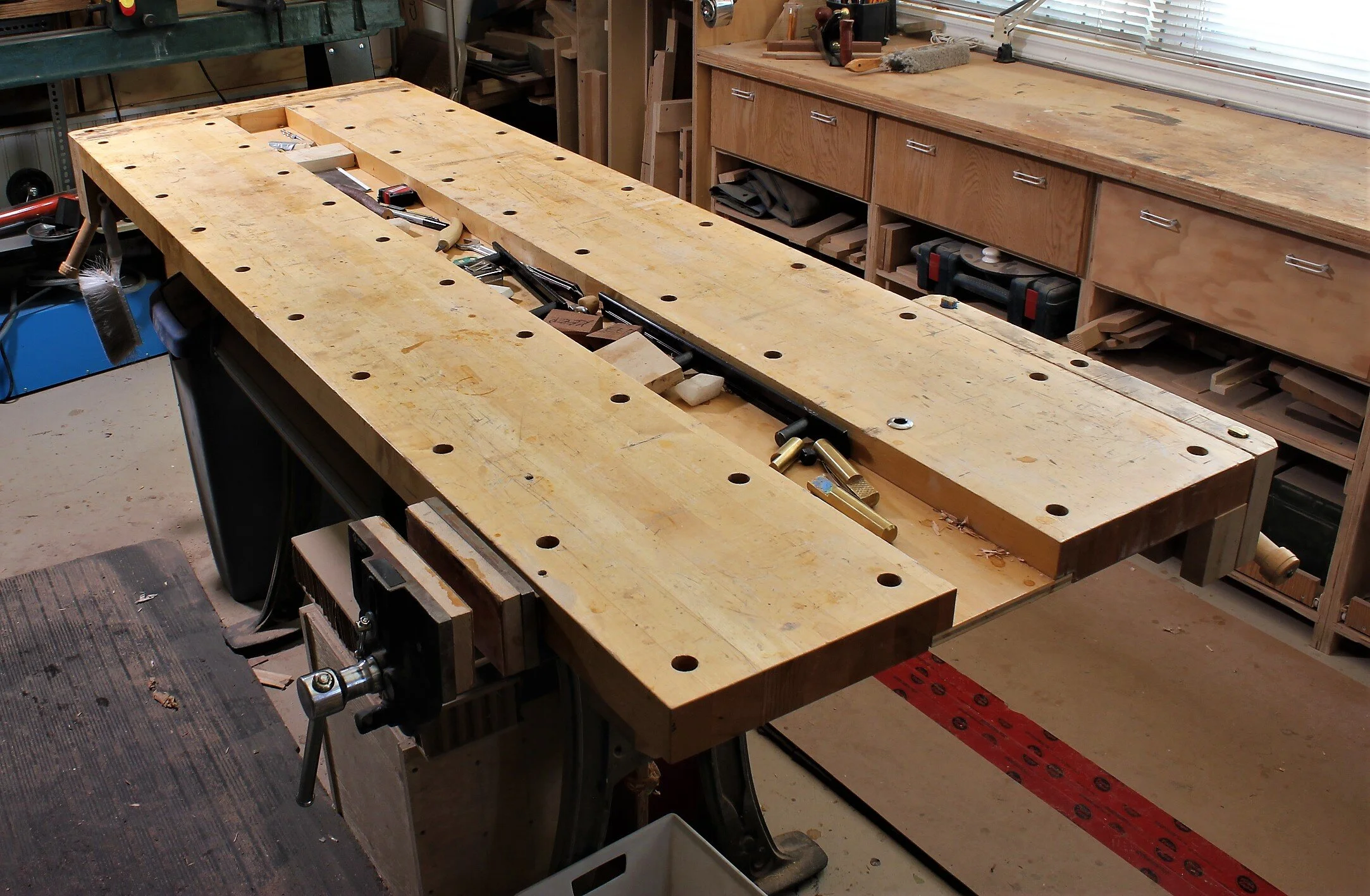

View fullsize The work bench is uncontestably the most important tool in your shop. This one is a Lee Valley with 3 vises.

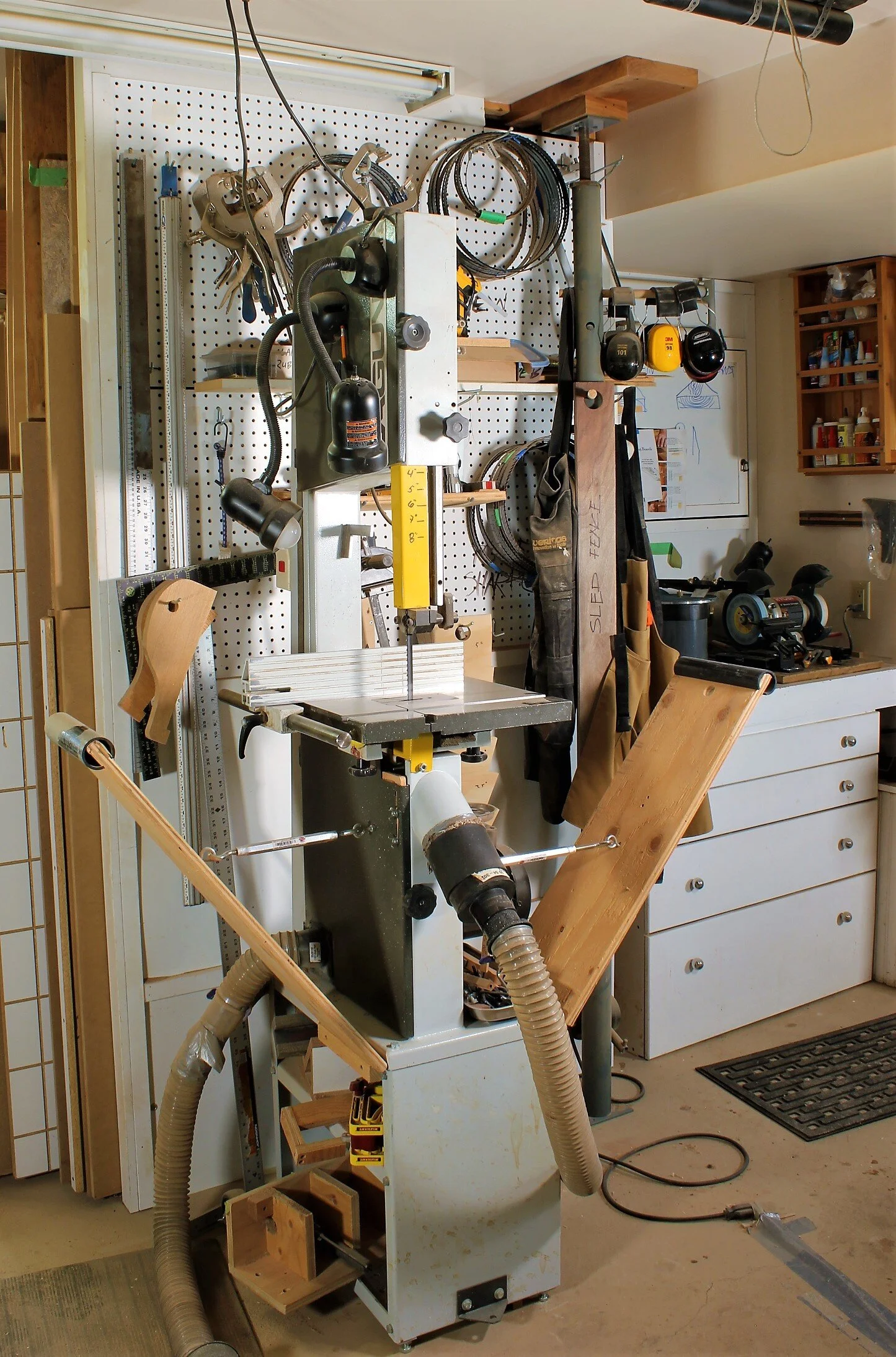

View fullsize My Laguna bandsaw is the most used power tool.  Ripping, shaping and resawing.

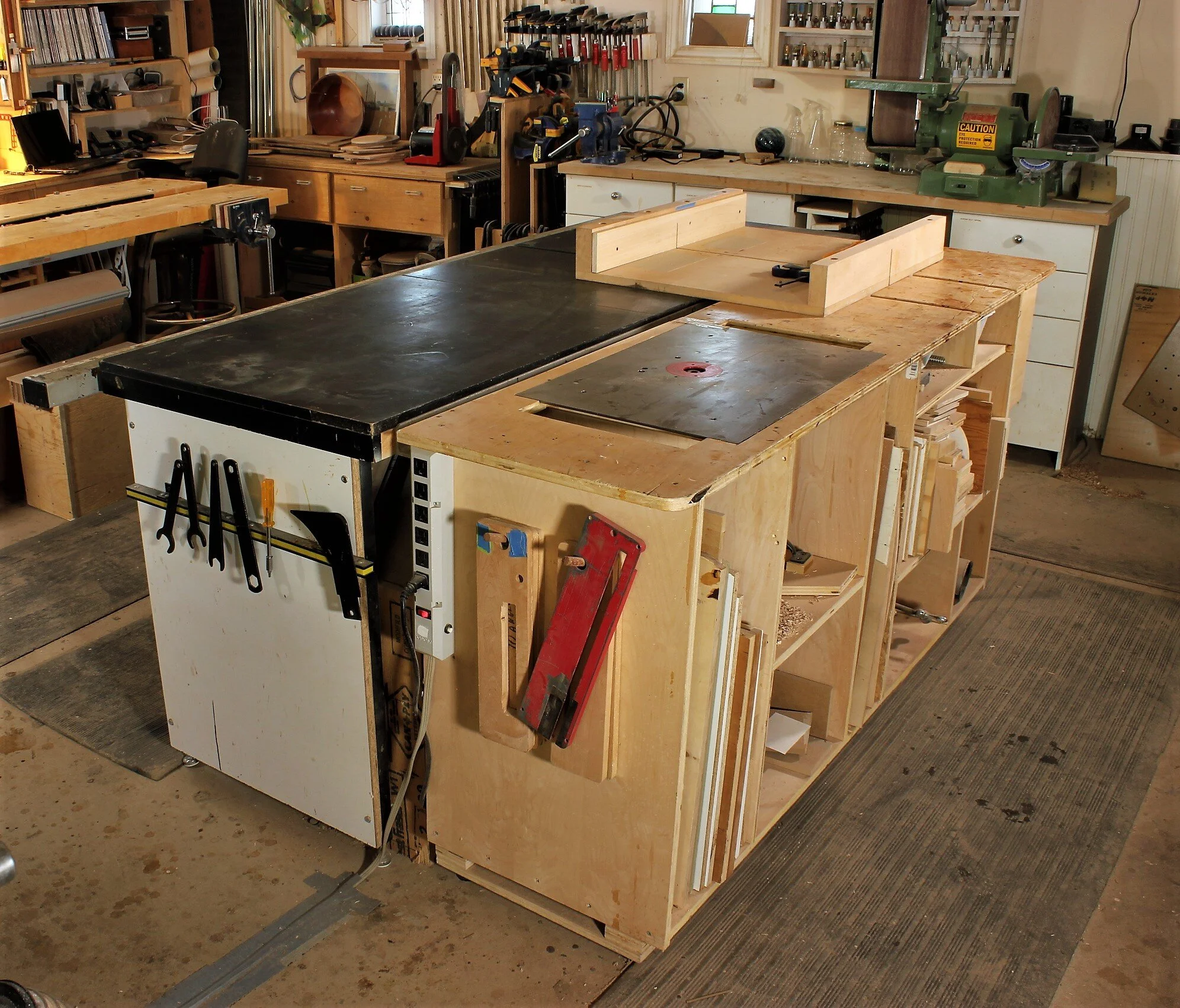

View fullsize Granite top table saw (Steel City 3 hp) with extension table, offcut storage and built in router table.

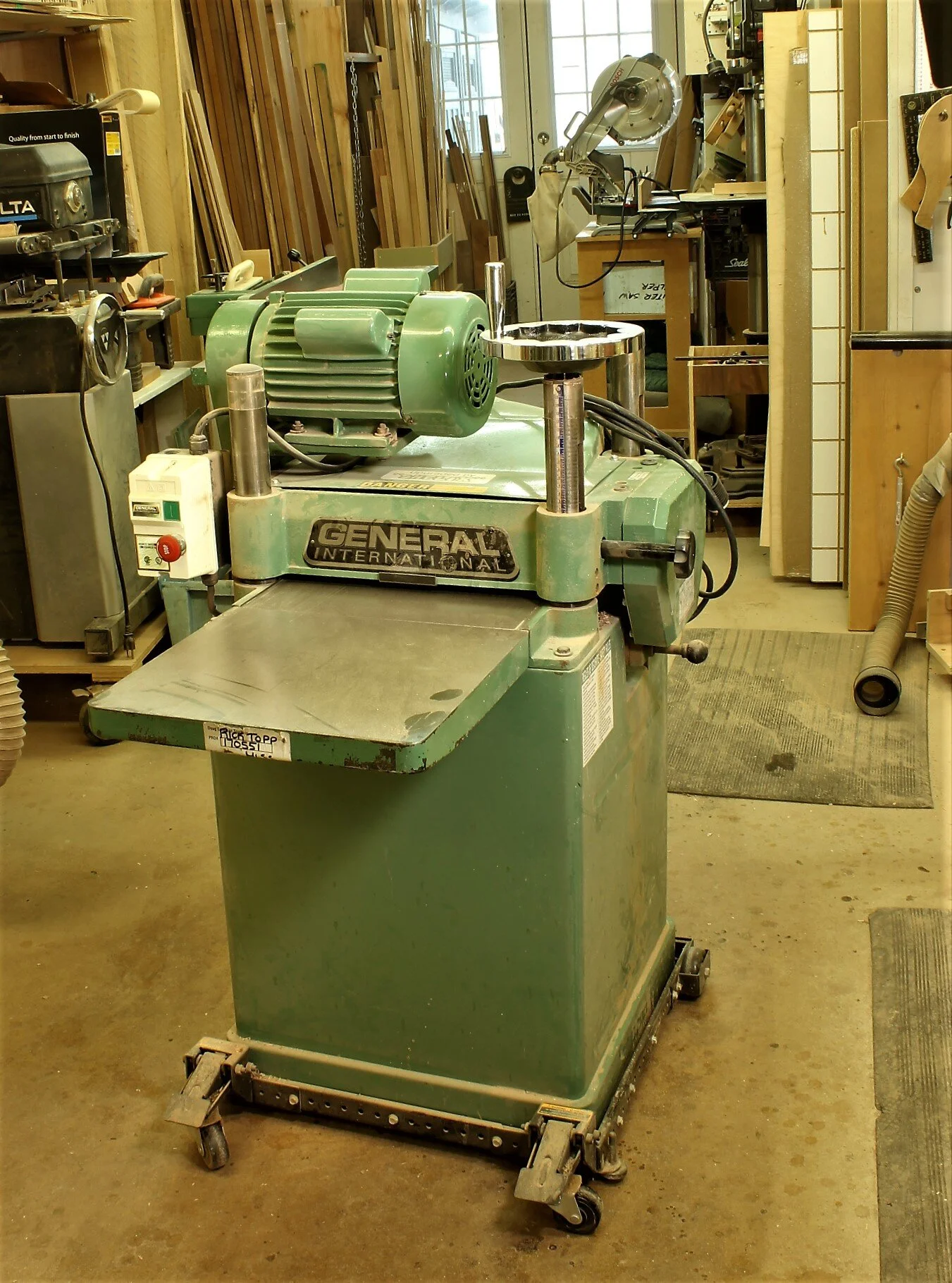

View fullsize I love this planer. General 15 inch on casters.

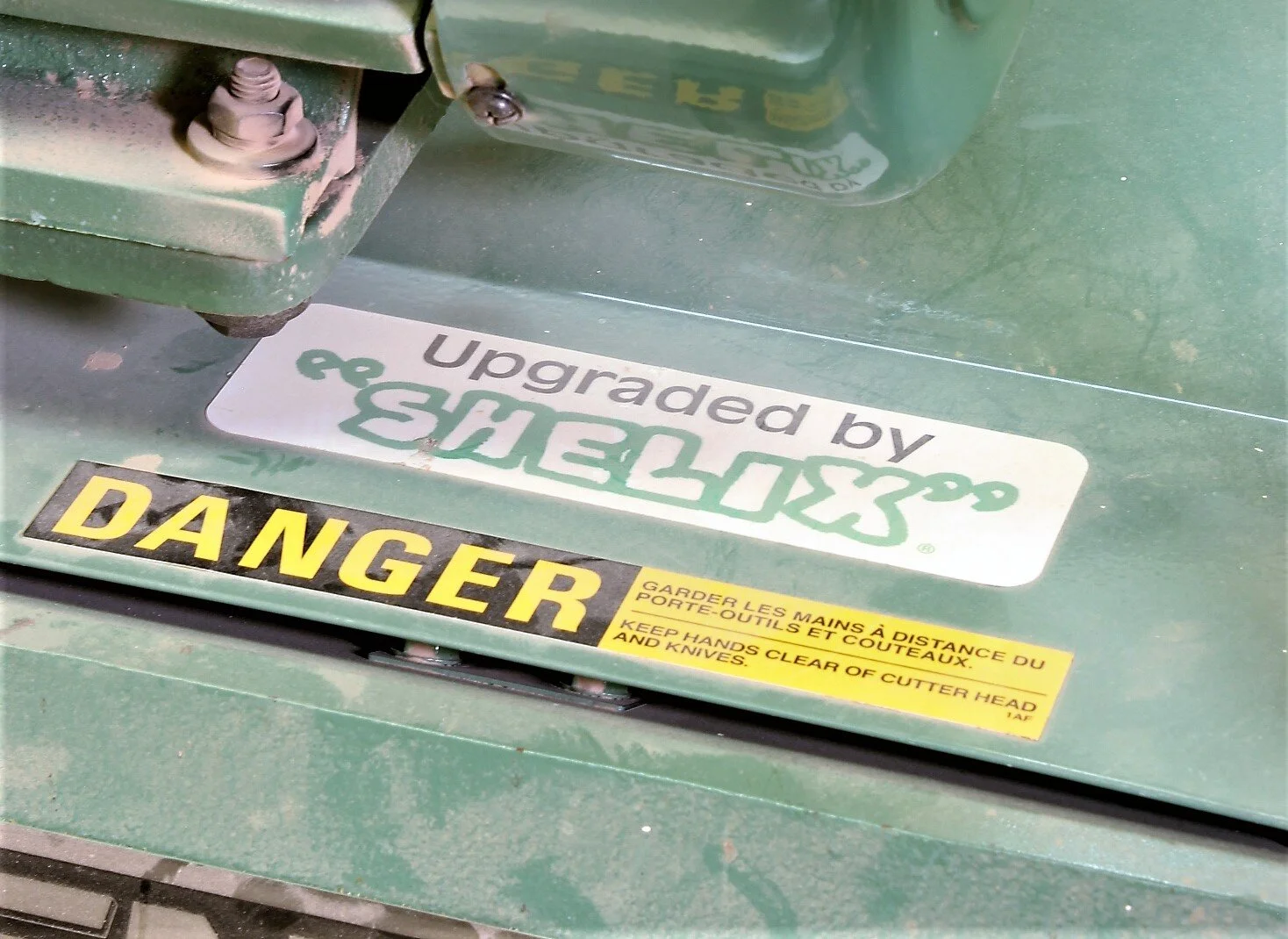

View fullsize Upgraded to Shelix helical blades. You will never regret it.

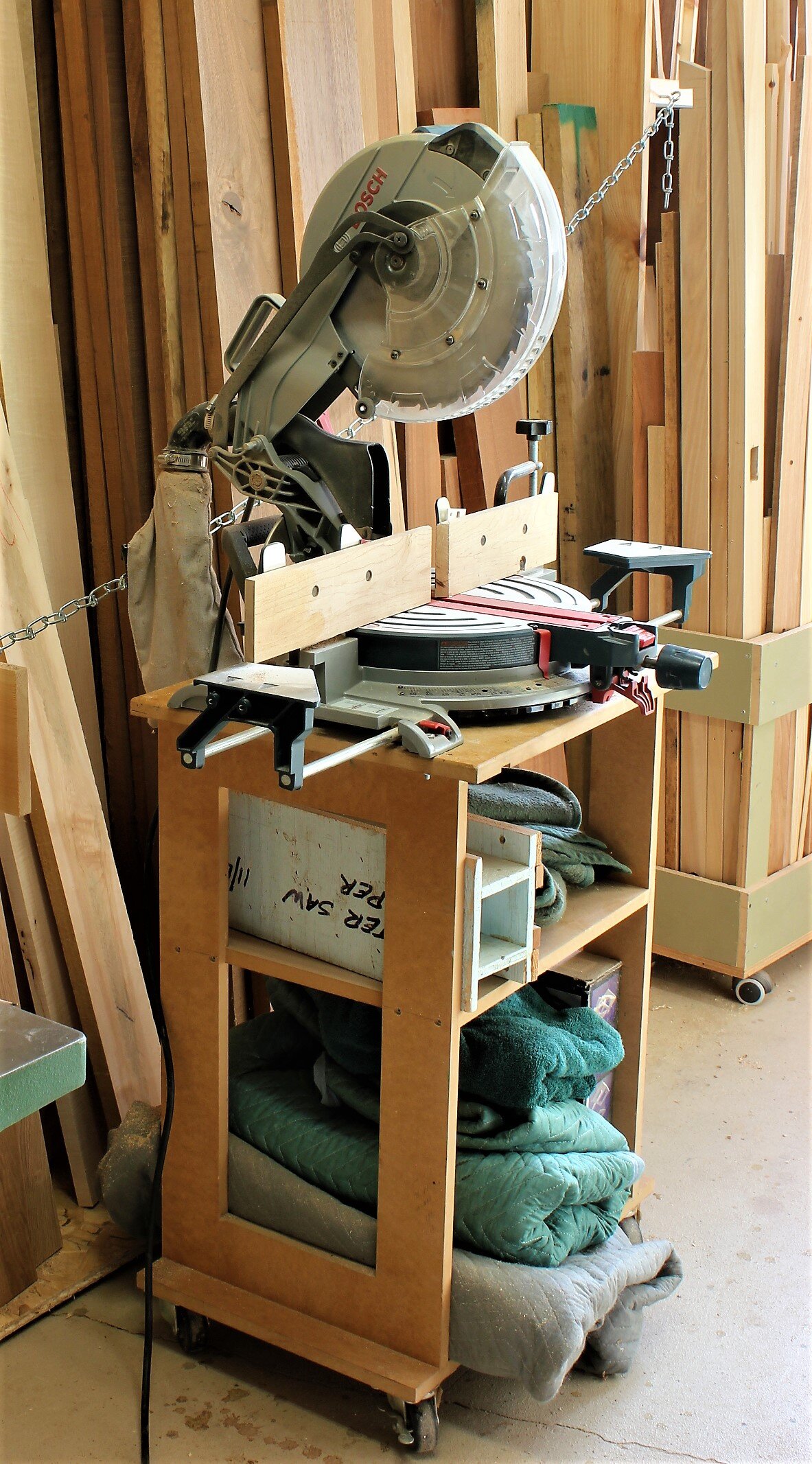

View fullsize Bosch 12-inch. Mostly used for cutting rough lumber to length.

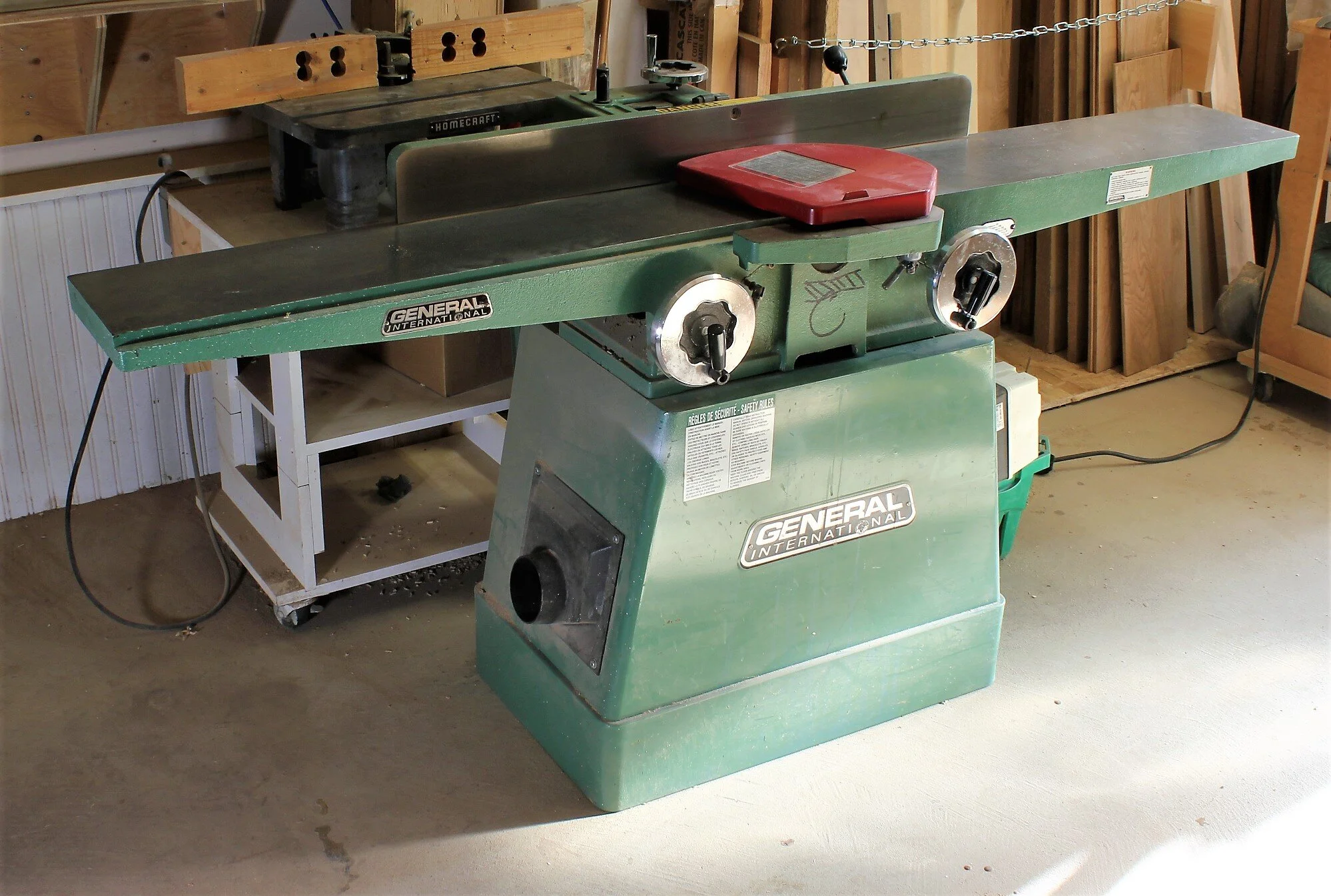

View fullsize General 8-inch jointer with helical blades.

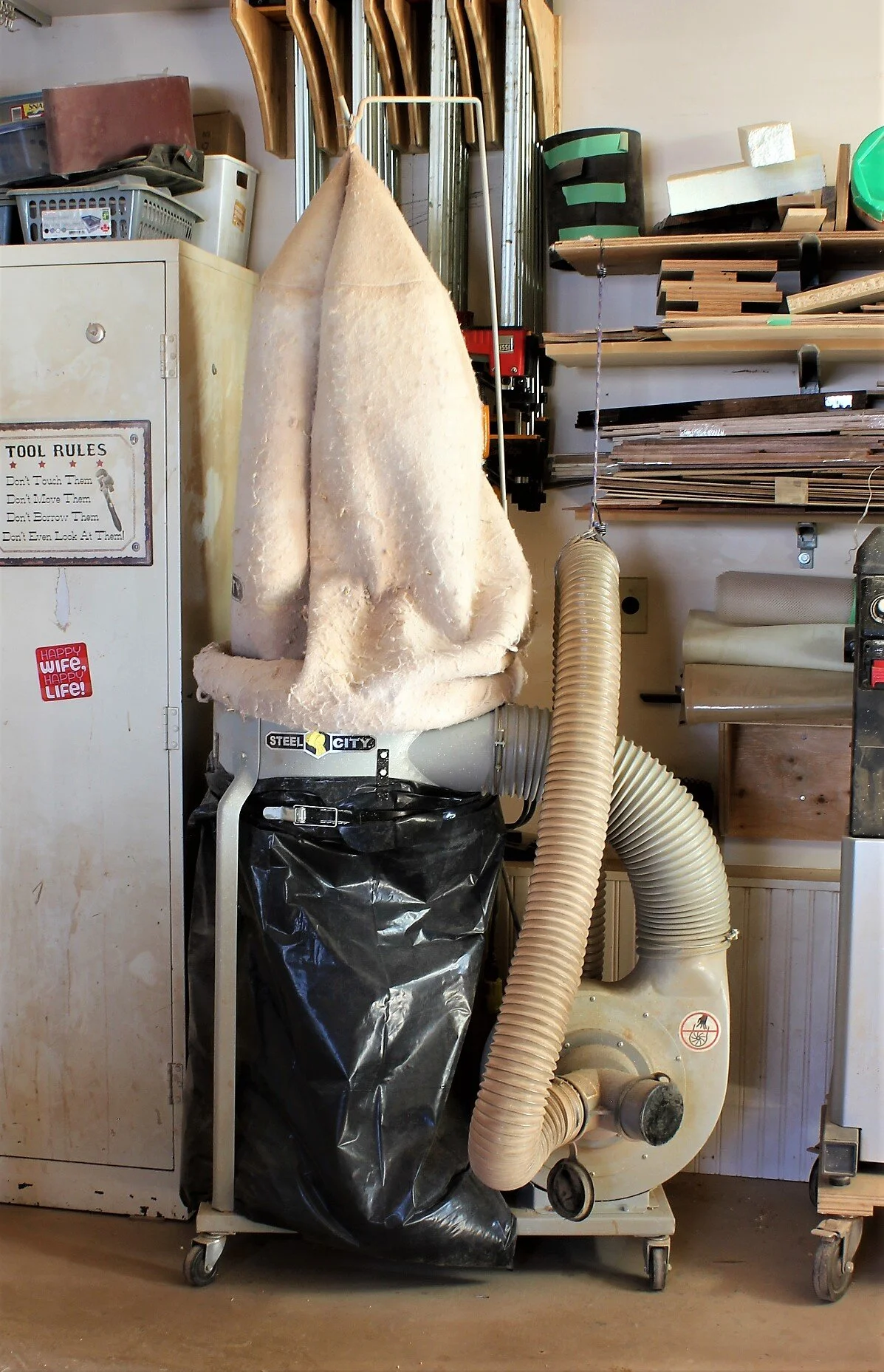

View fullsize Dust collector on casters using standard Husky contractor bags. 15 years old..

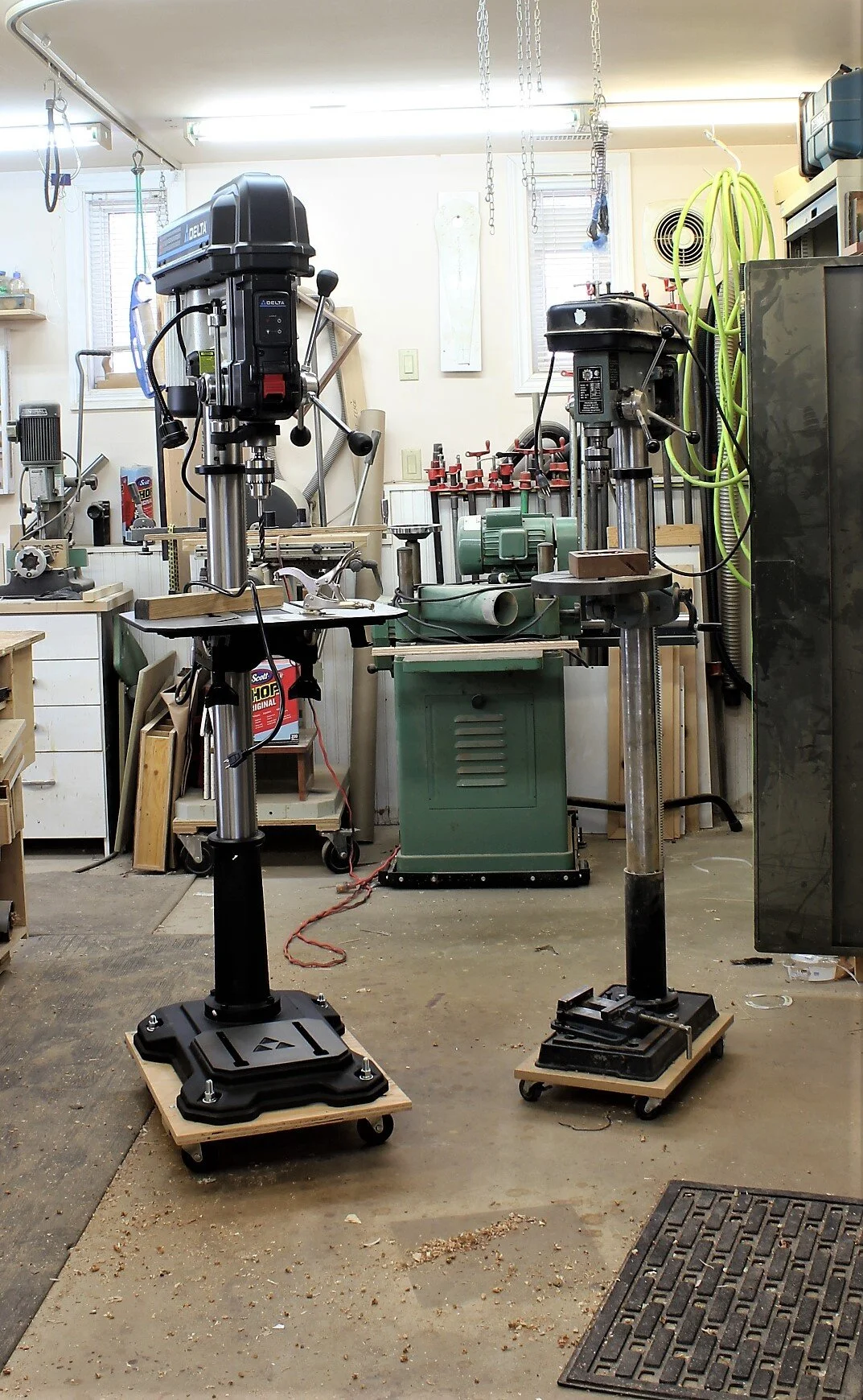

View fullsize The latest upgrade, a Delta drill press replacing the last King equipment.
View fullsize The VacuPress vacuum bag system. For veneering, laminating and bending, hands down the best.
View fullsize The beast, 1960’s BusyBee cast sander, 6-inch belt and 12-inch disc. Incredibly stable and accurate.

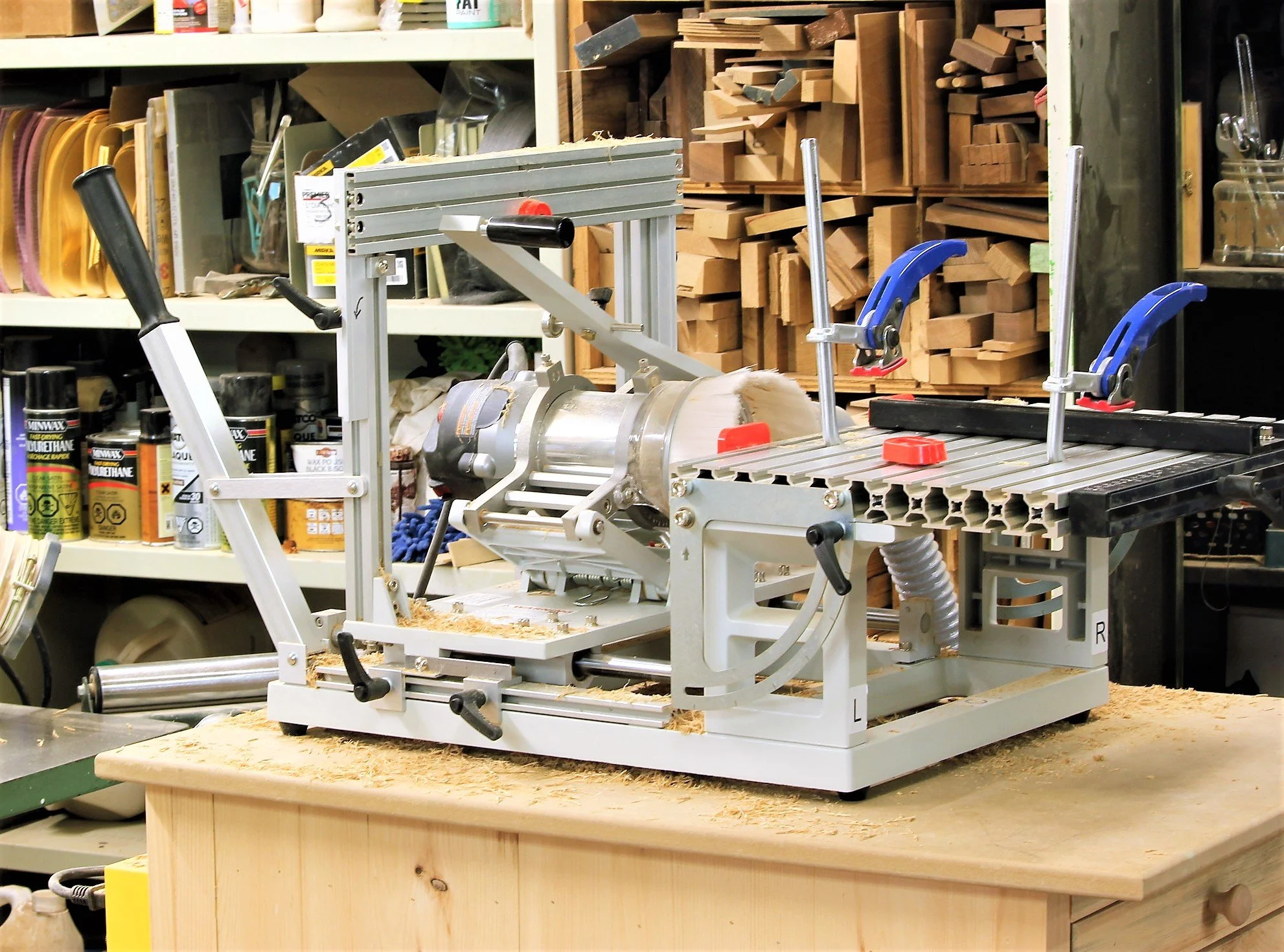

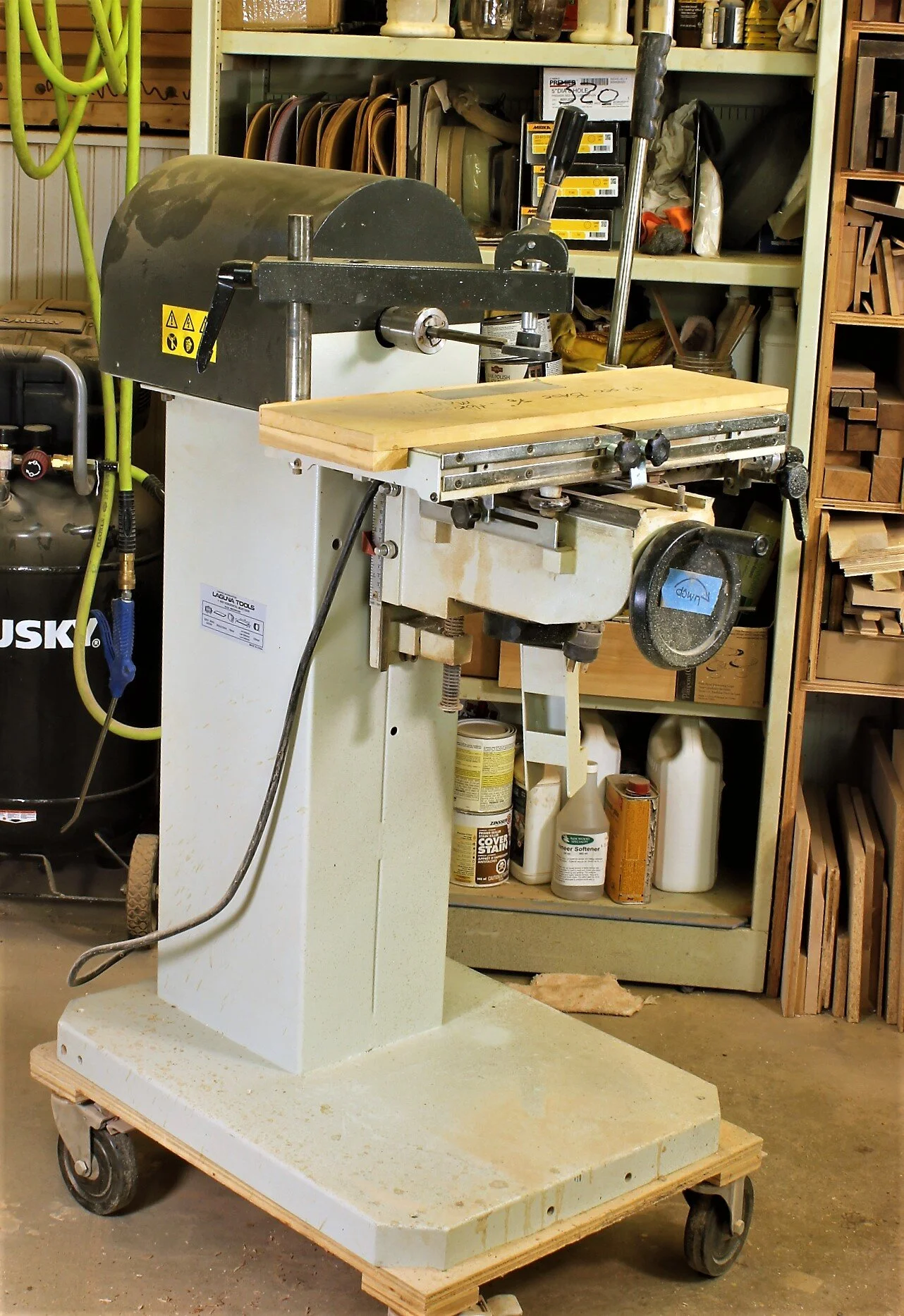

View fullsize Laguna horizontal mortiser

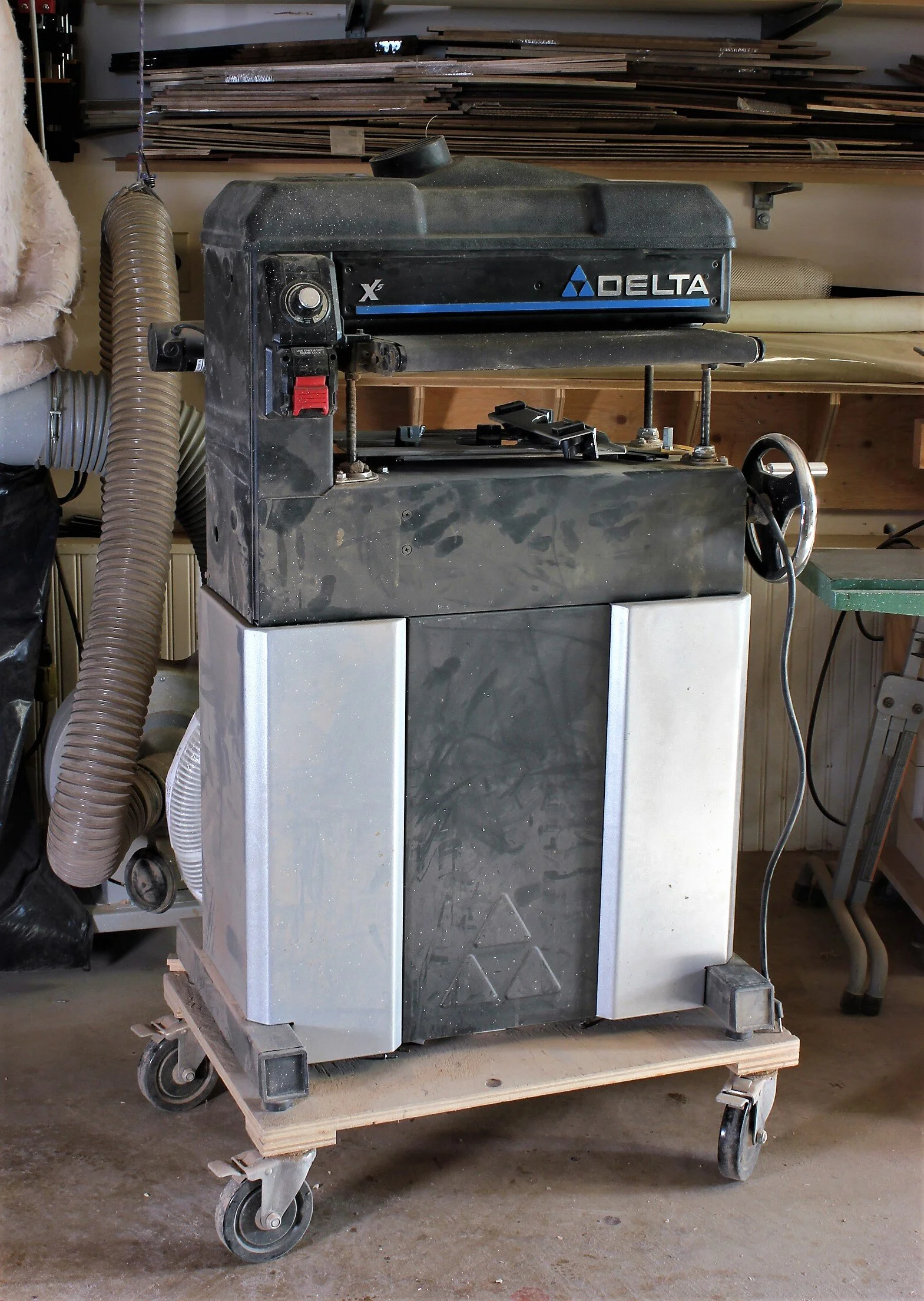

View fullsize Delta 18-inch drum sander

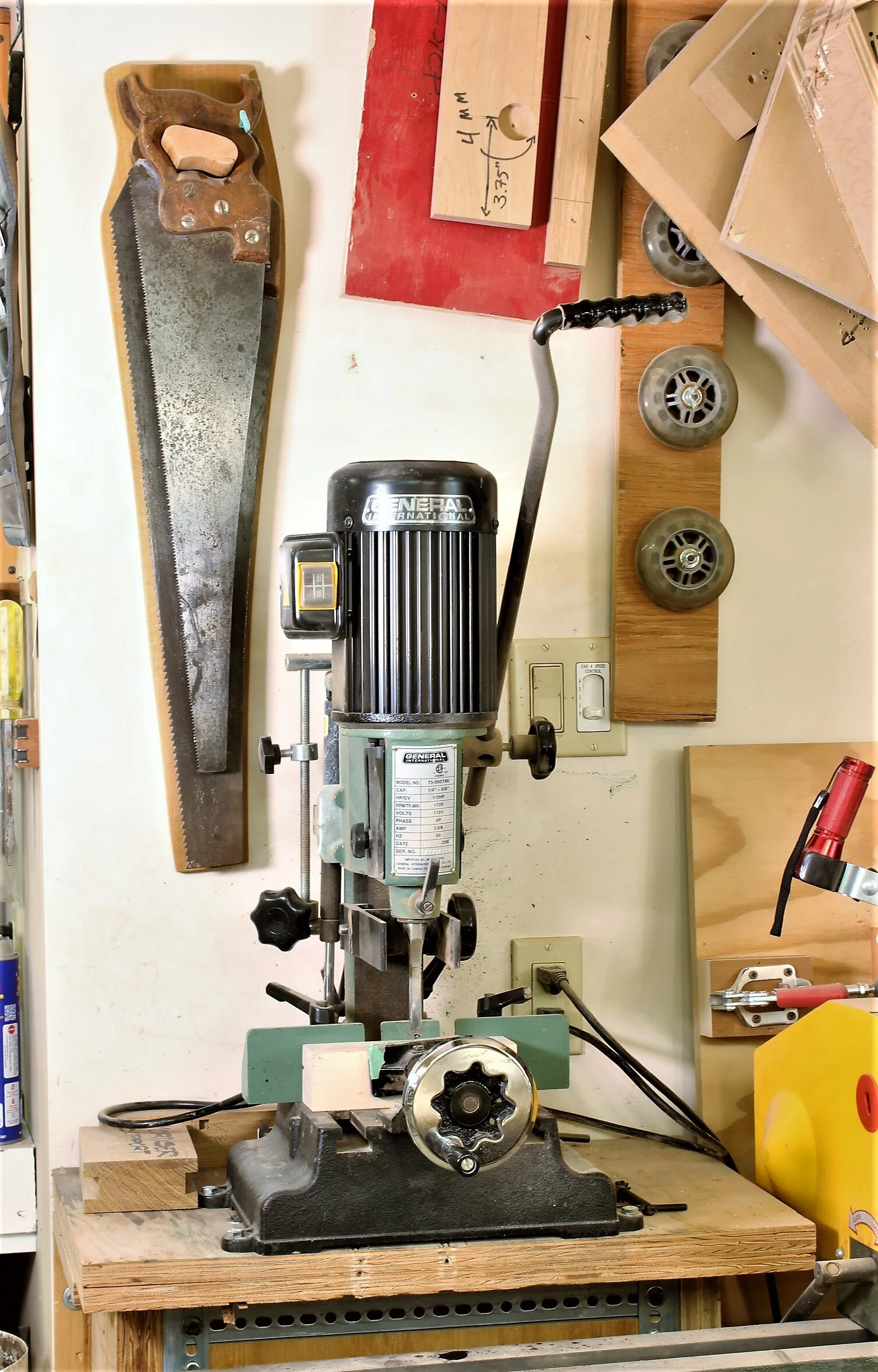

View fullsize General vertical mortiser with 45-degree tilt

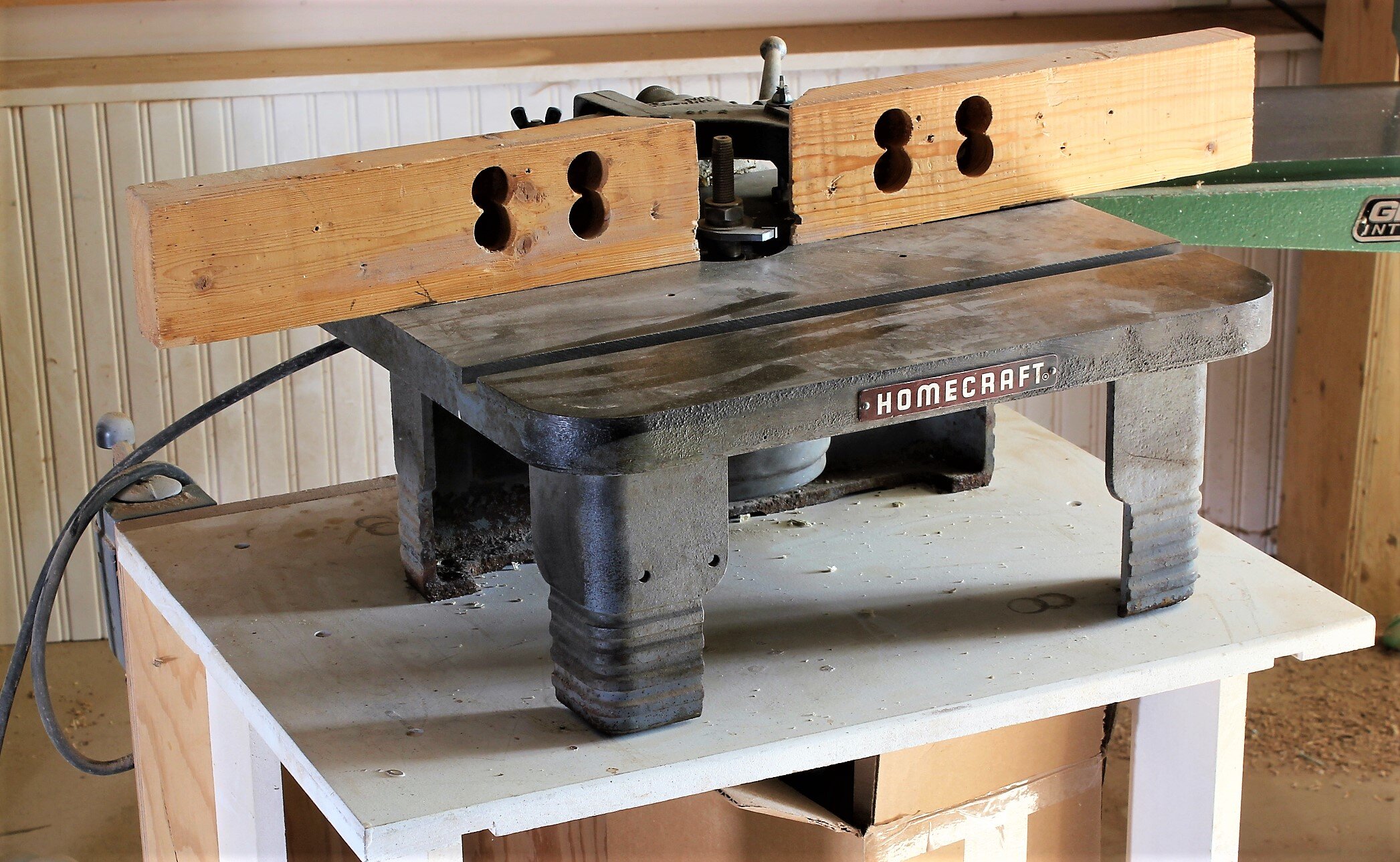

View fullsize The old one. Homecraft 2 hp shaper with a new reversible electric switch. It will work all day without breaking a sweat.

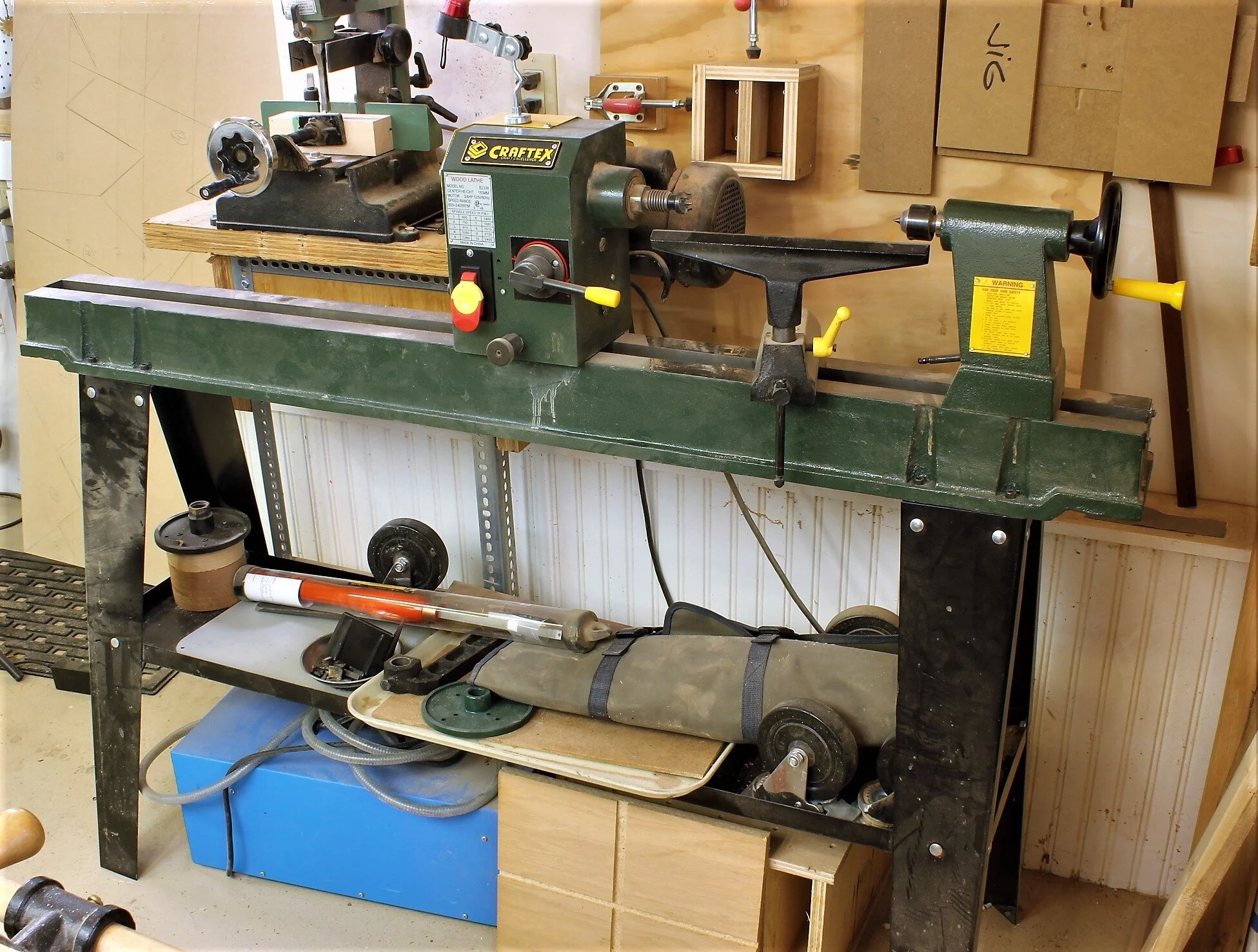

View fullsize My starter Craftex 5 speed lathe.

Smaller Tools

This is a sampling of my hand tools and small power tools. For any beginner, you will quickly realize that the serious money is in hand tools and accessories. For example, my collection of hand planes would easily buy a band saw, drill press and jointer. My shaper cutters and router bits far exceed the cost of a new table saw. In wood-turning, the accessories and gouges alone can amount to as much as the lathe. The acquisition of all those happened over time as I took on new projects and acquired new skills.

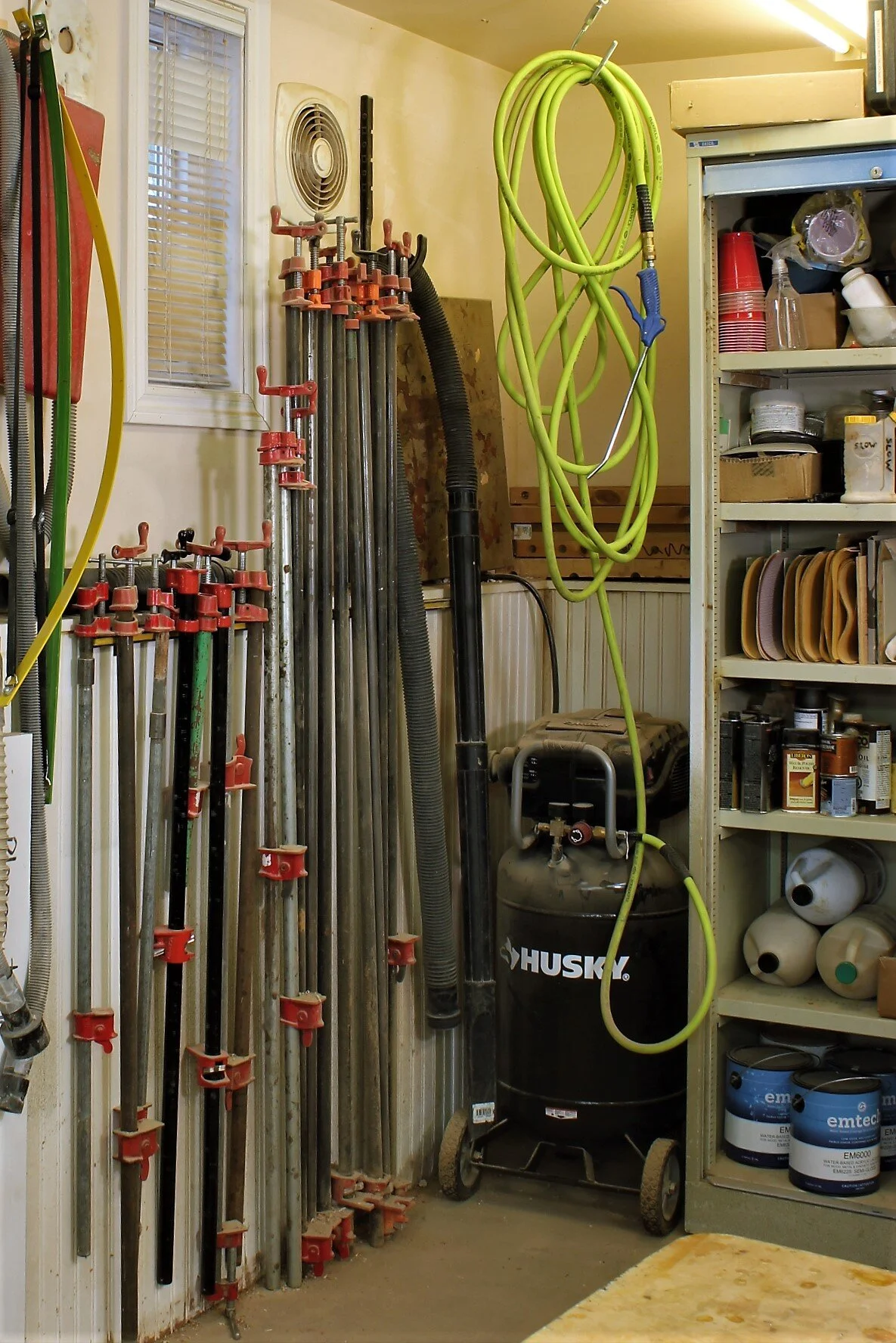

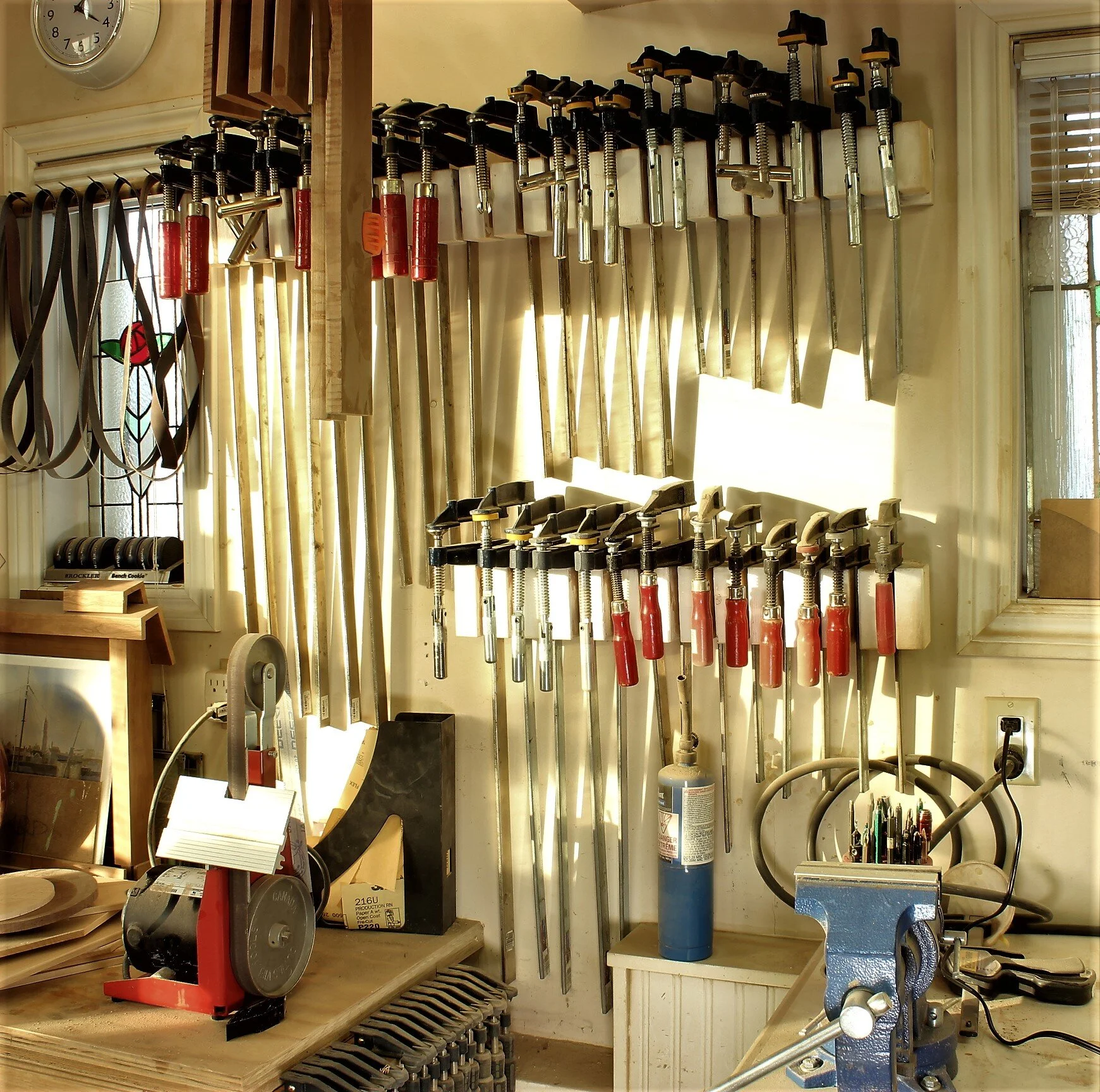

View fullsize Pipe clamps held up with magnetic bar and compressor in the corner.

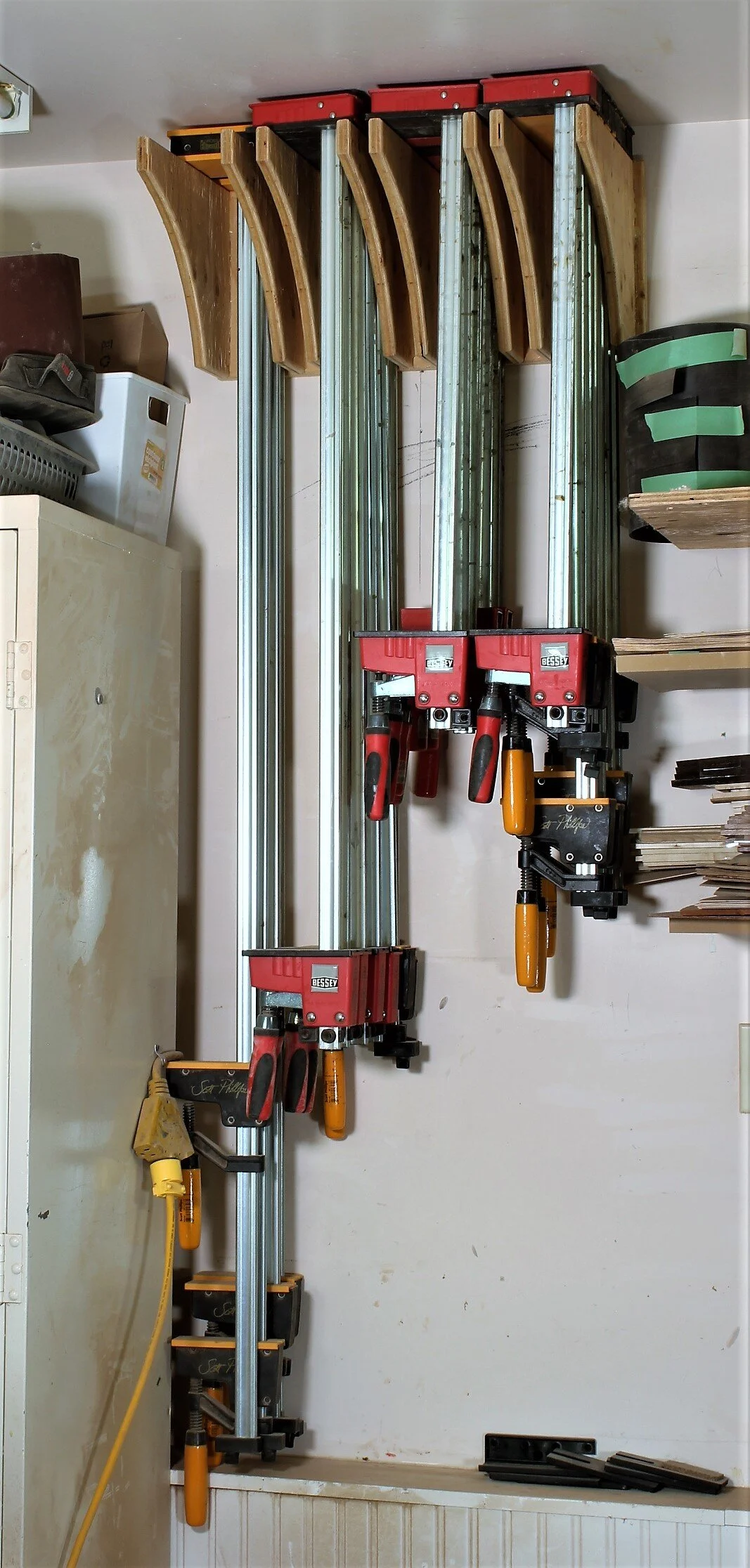

View fullsize Parallel jaw clamps
View fullsize 18- and 24-inch light clamps

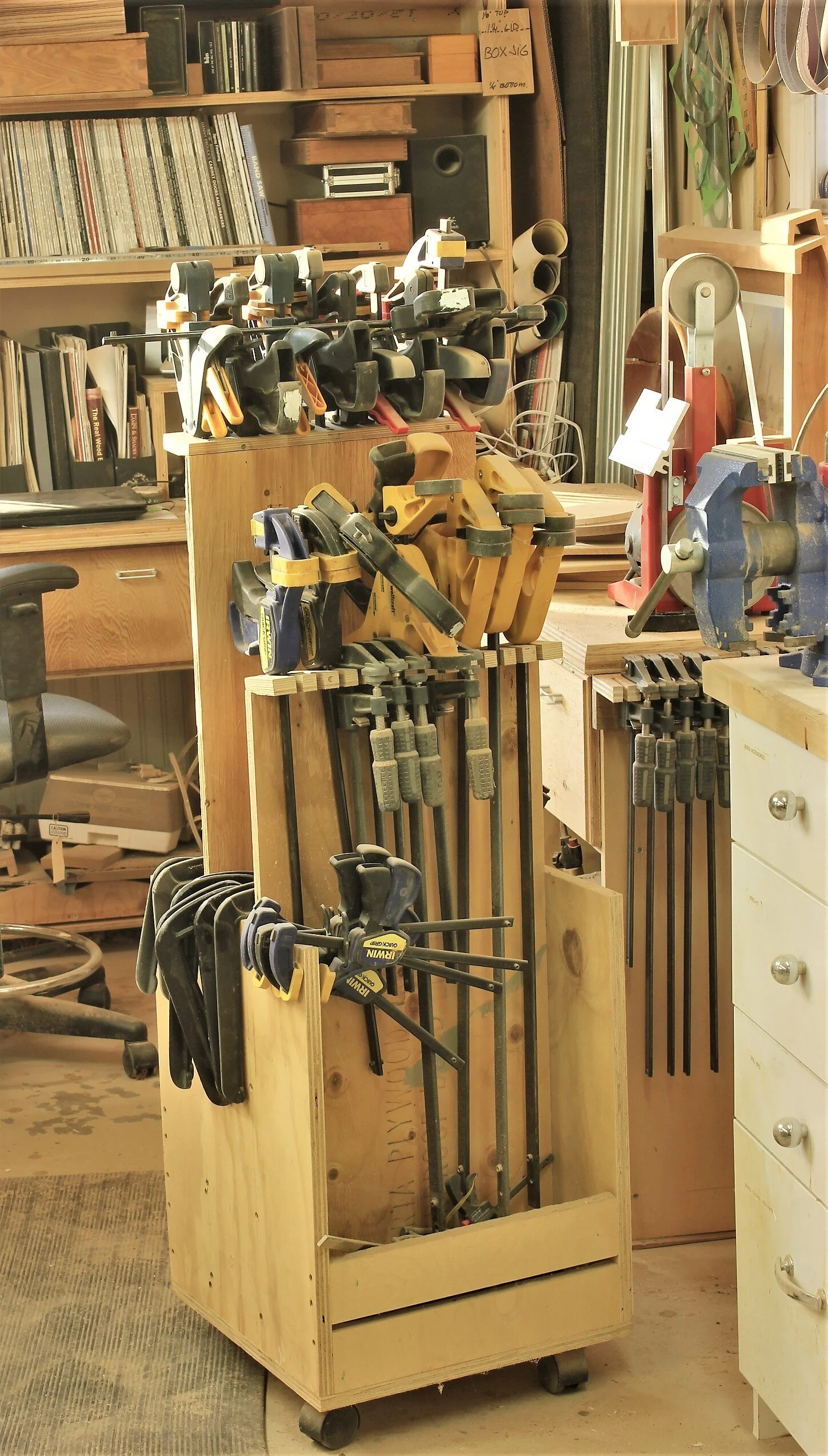

View fullsize Clamp rack on wheels with variety

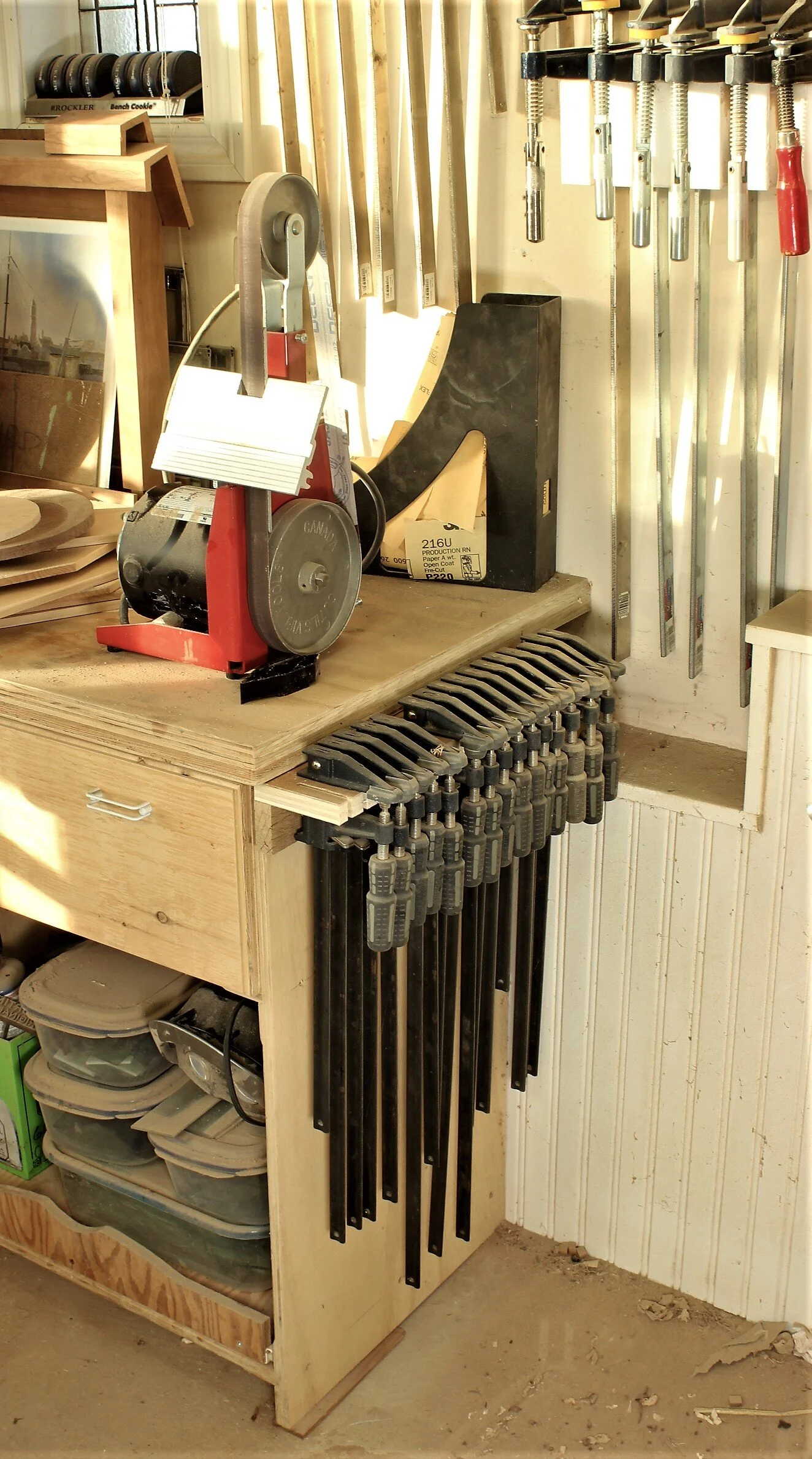

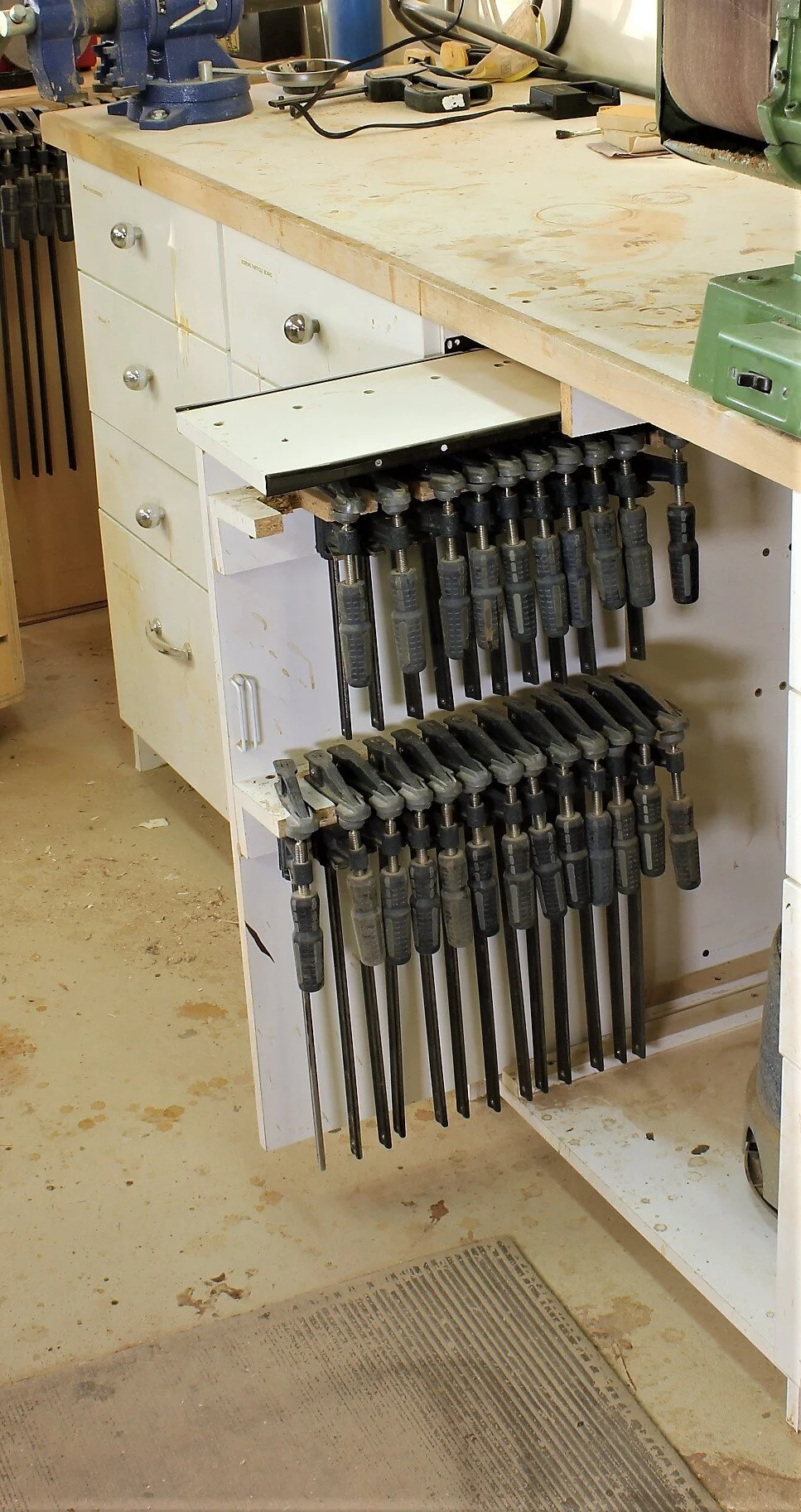

View fullsize Pull out clamp rack, 6- and 12-inch clamps
View fullsize Heavy deep throat clamps various sizes

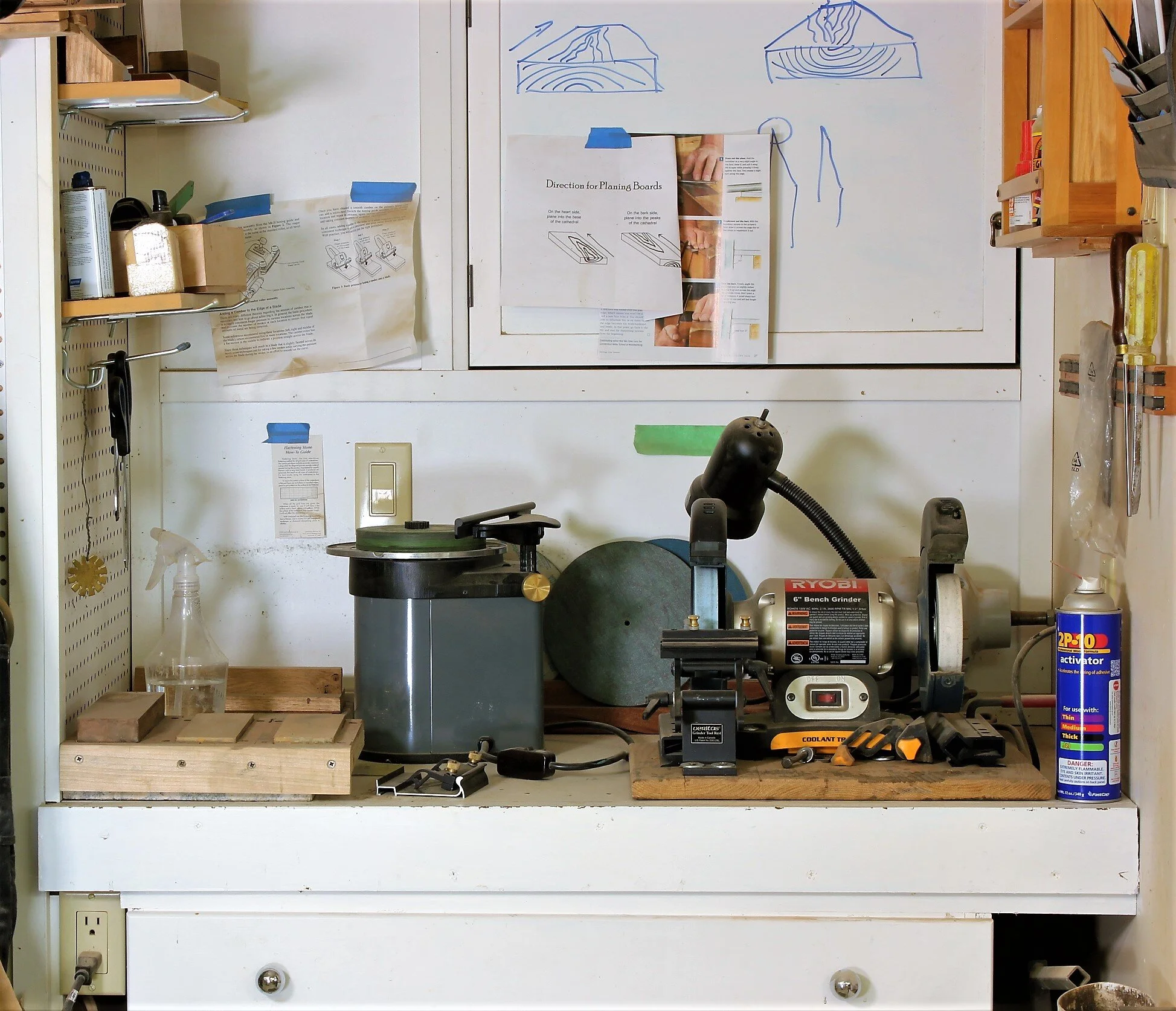

View fullsize Veritas power sharpening, water stones and grinder

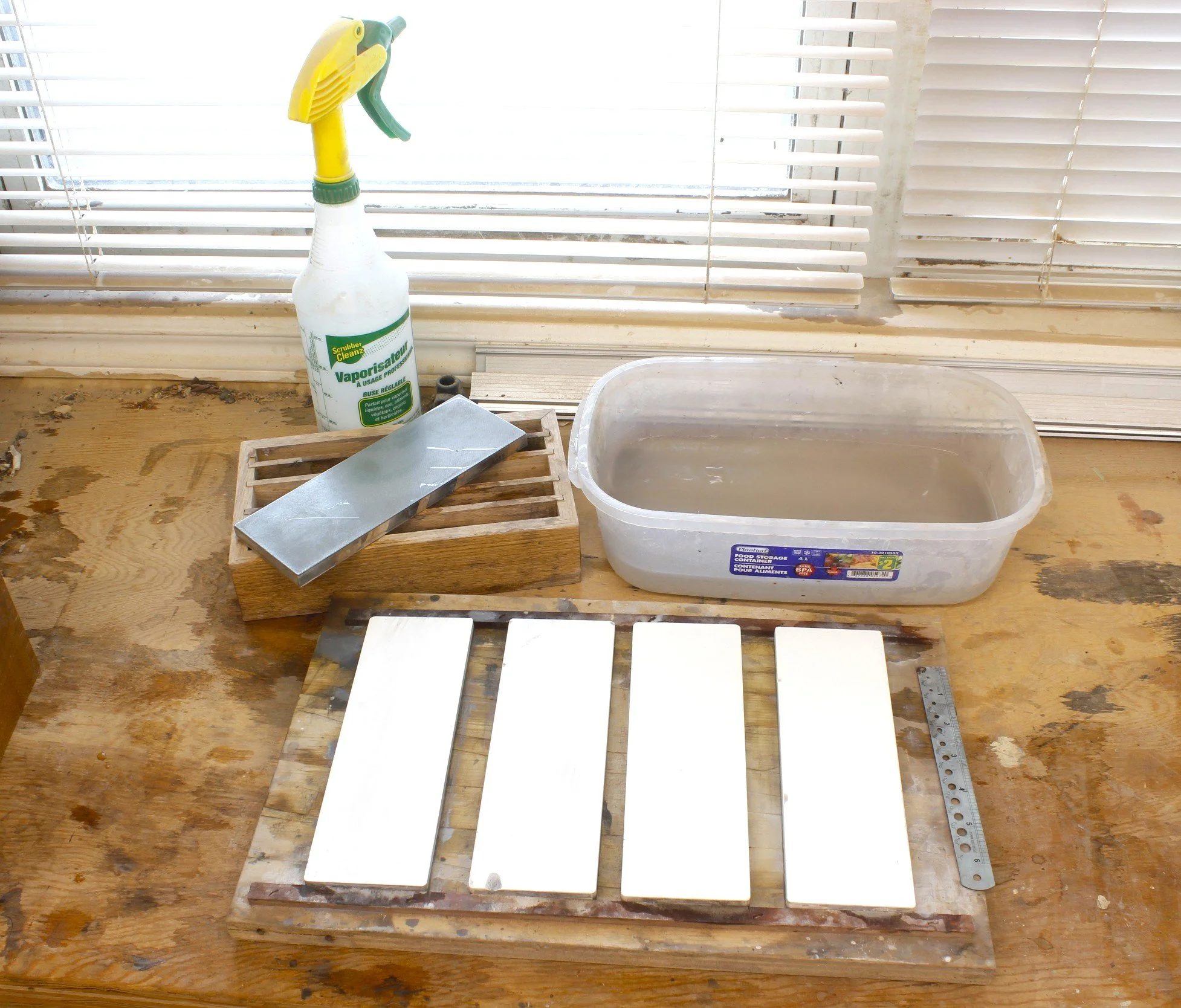

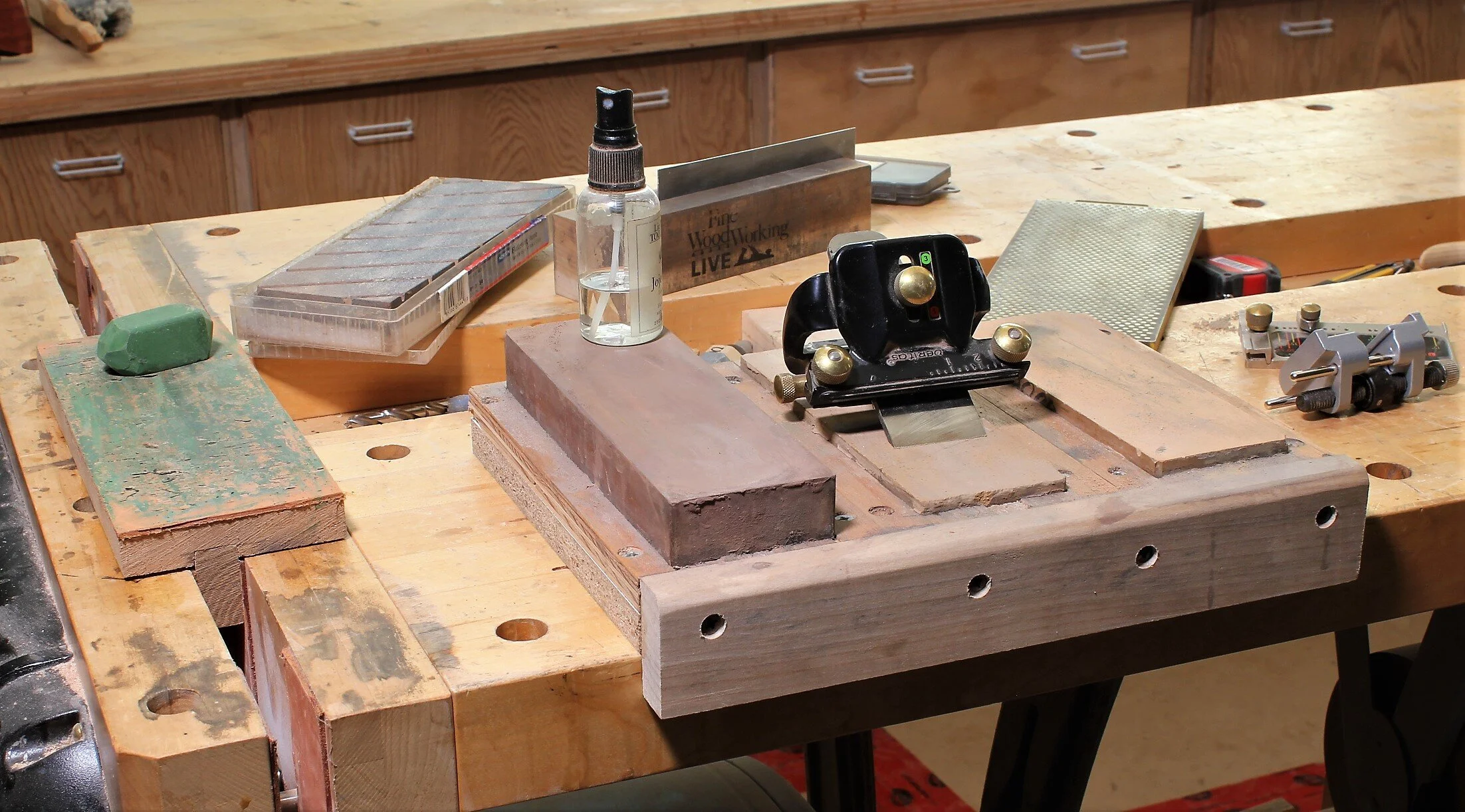

View fullsize Veritas sharpening guide, water stones, leather strop, flattening stone, diamond stone and card scraper holder

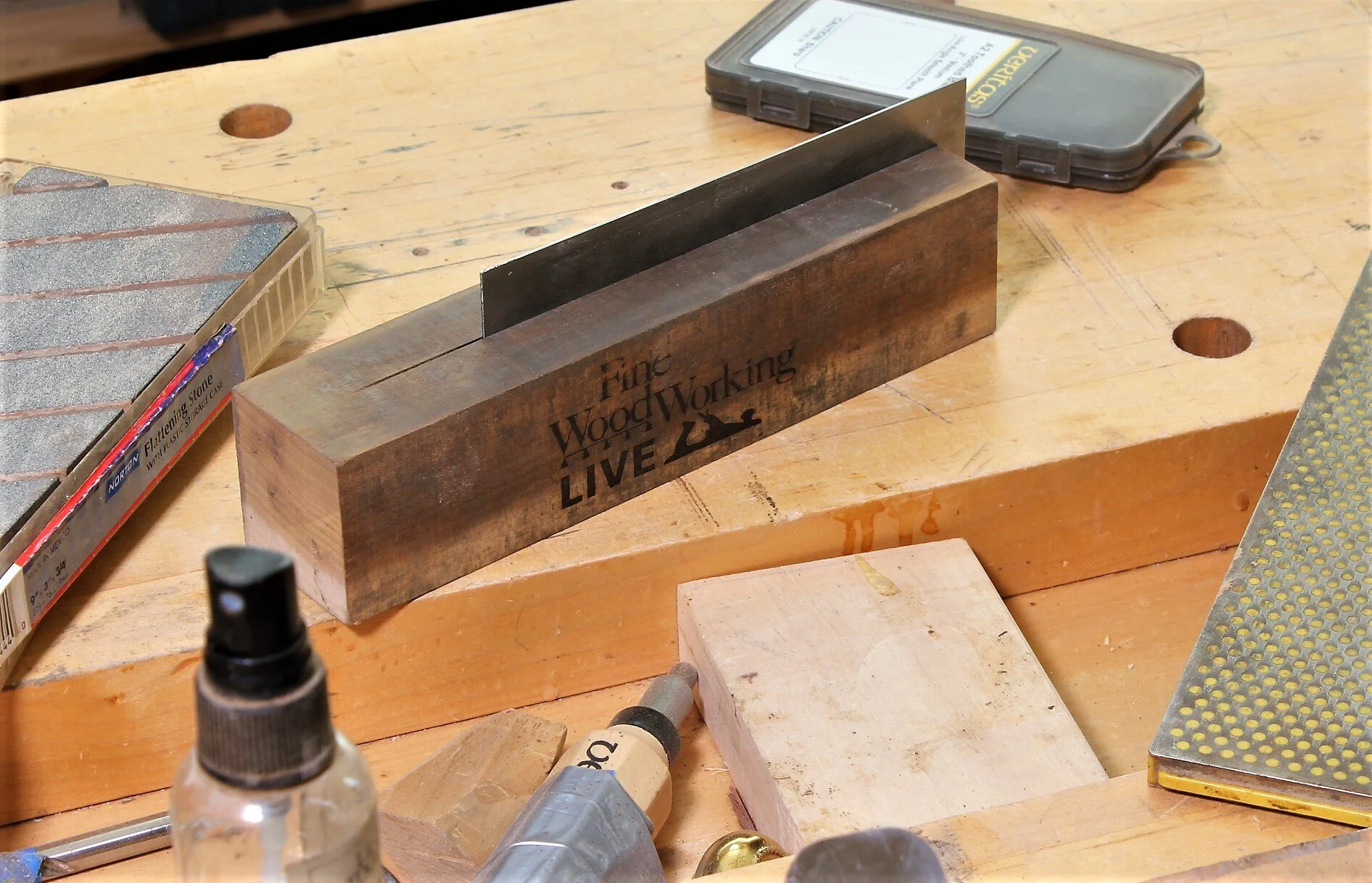

View fullsize A marvellous hand out at one of the Fine Woodworking Live events, a simple card holder for sharpening

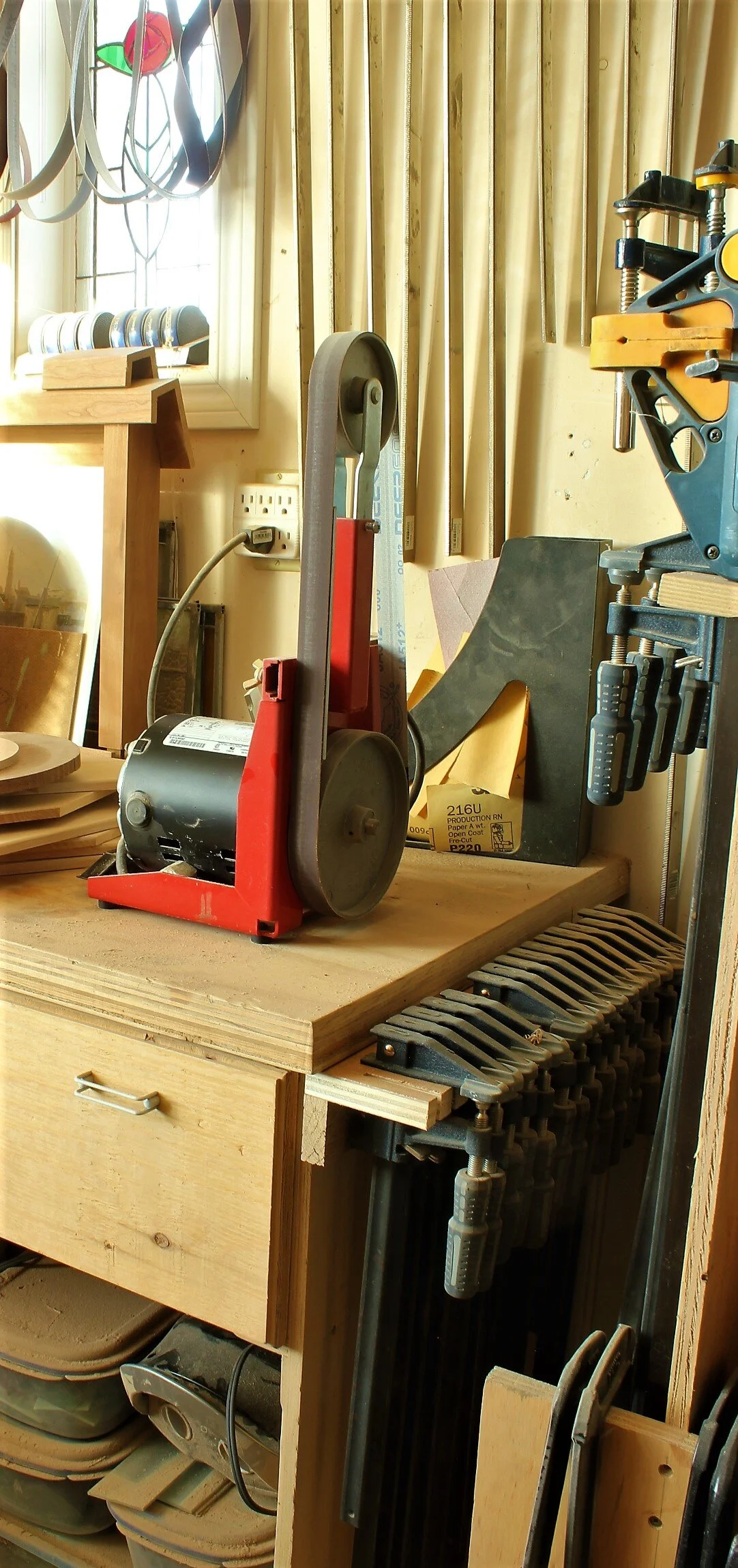

View fullsize Sander grinder mostly used for knives

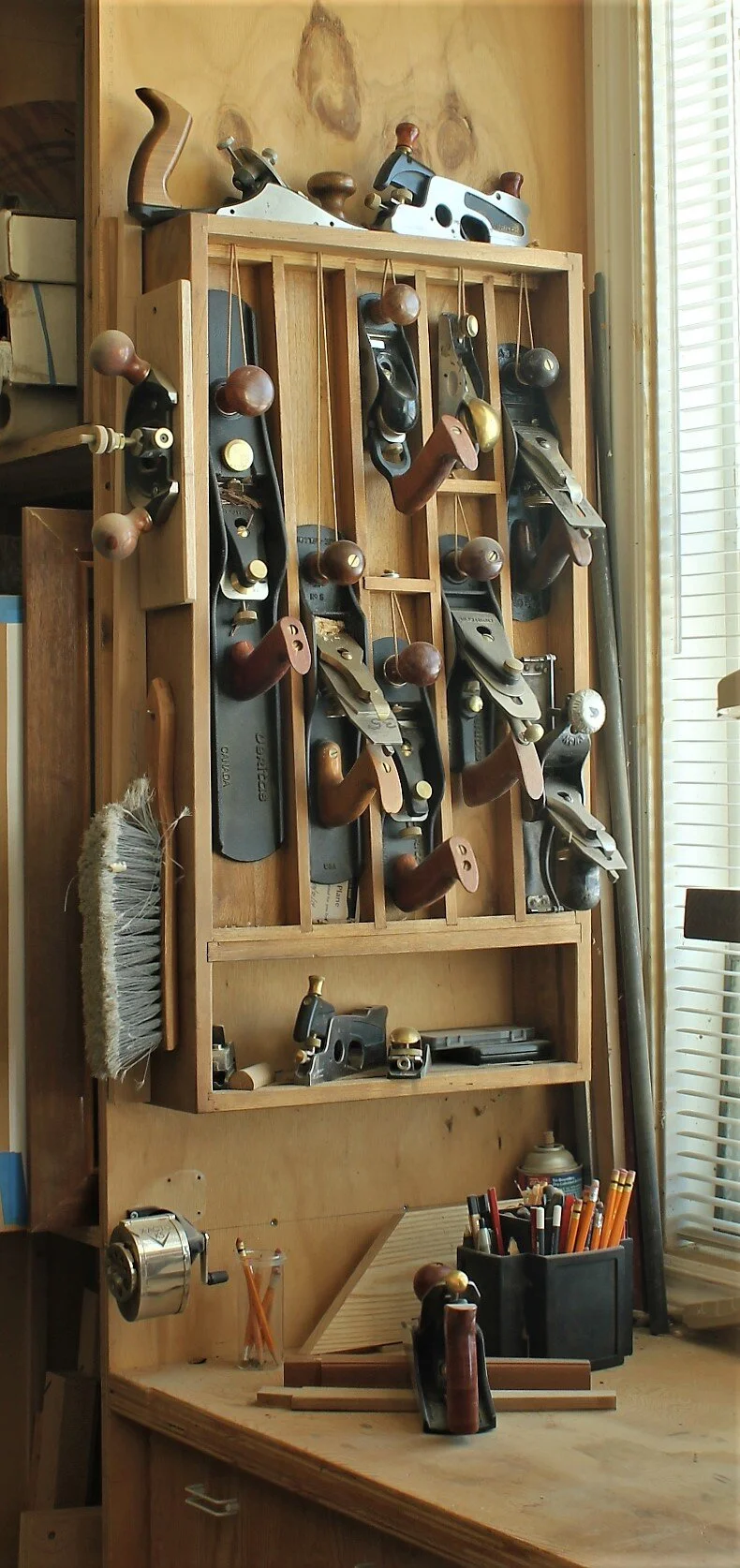

View fullsize My everyday planes (more in drawers)

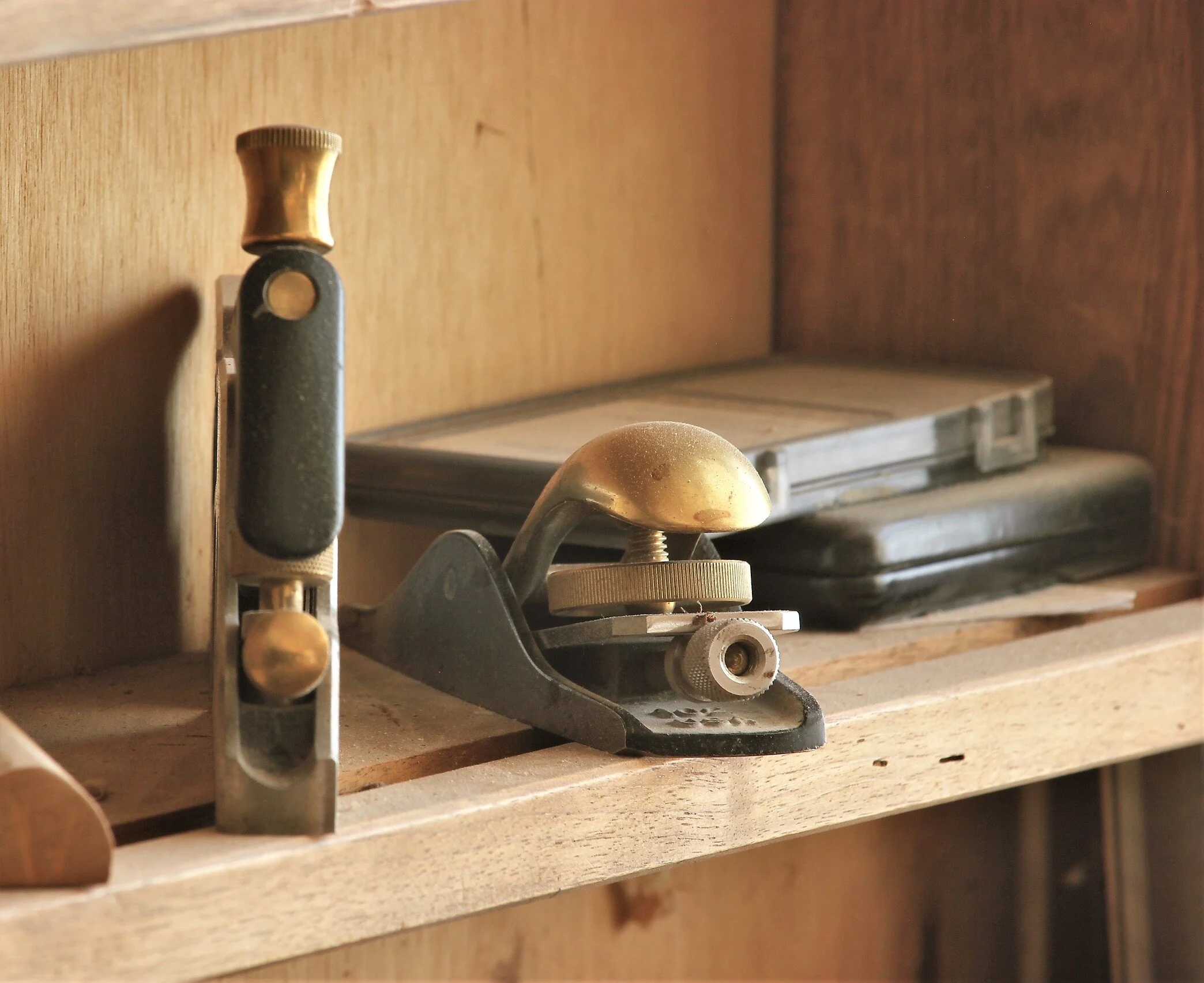

View fullsize Small block and shoulder plane

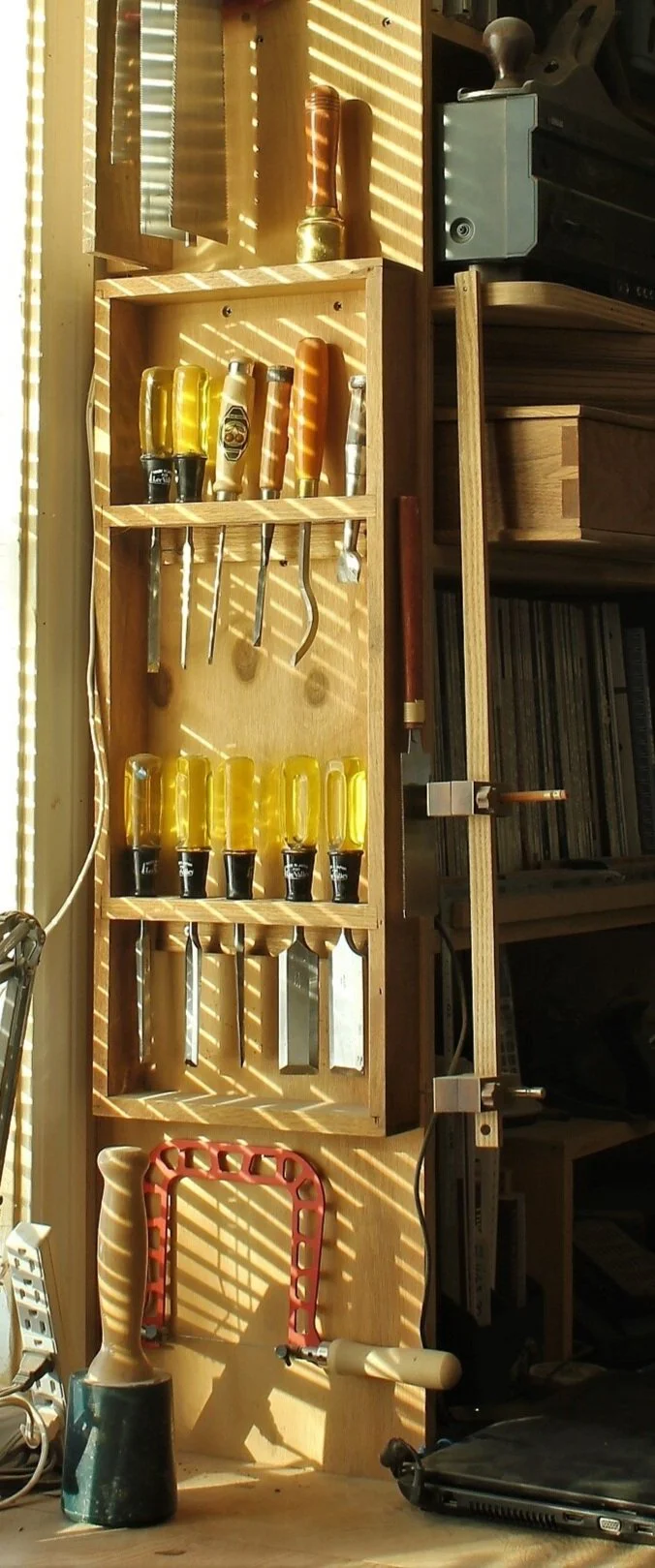

View fullsize Chisels, fret saw, malets, etc.

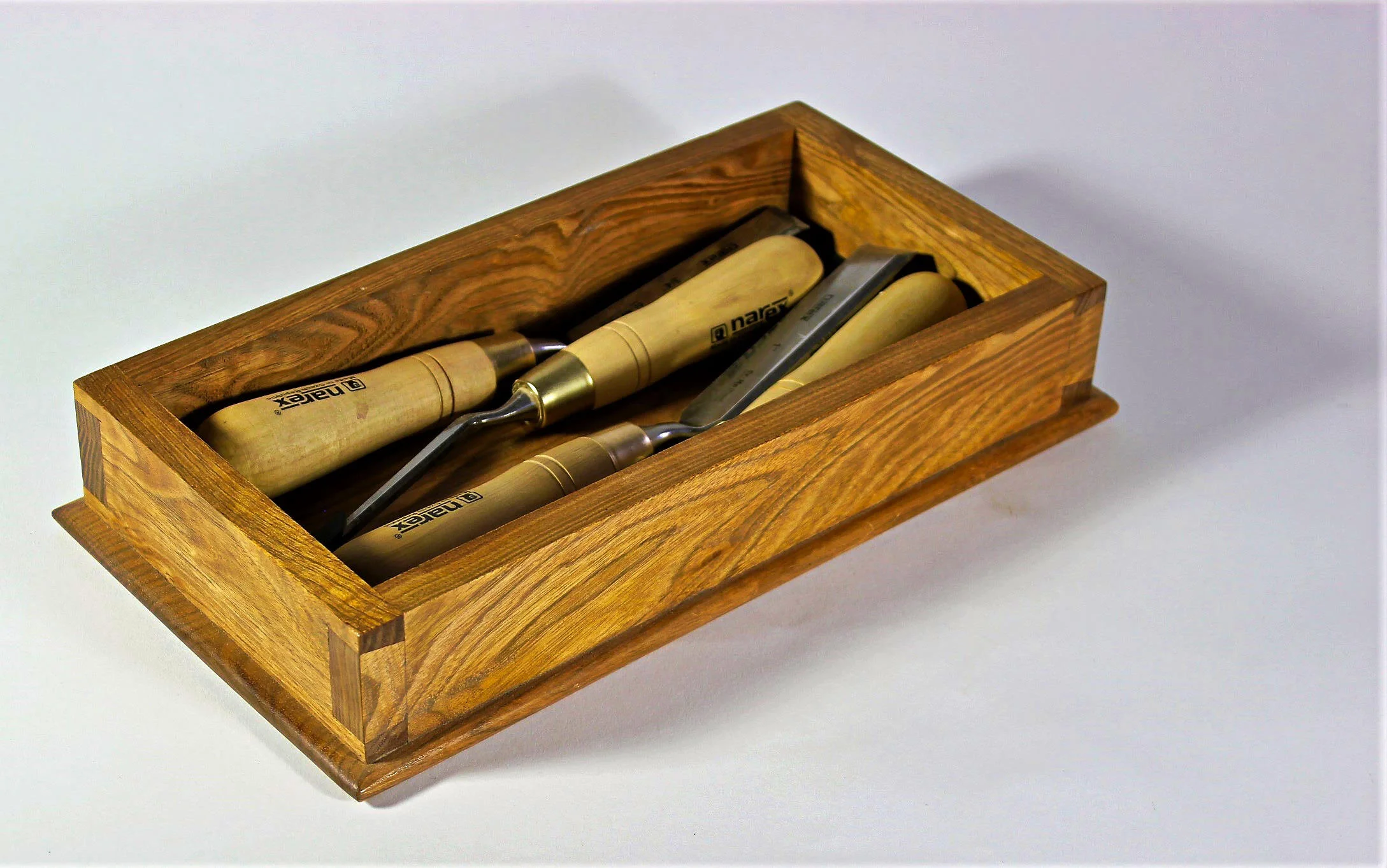

View fullsize Crank neck chisels
View fullsize Detail chisels

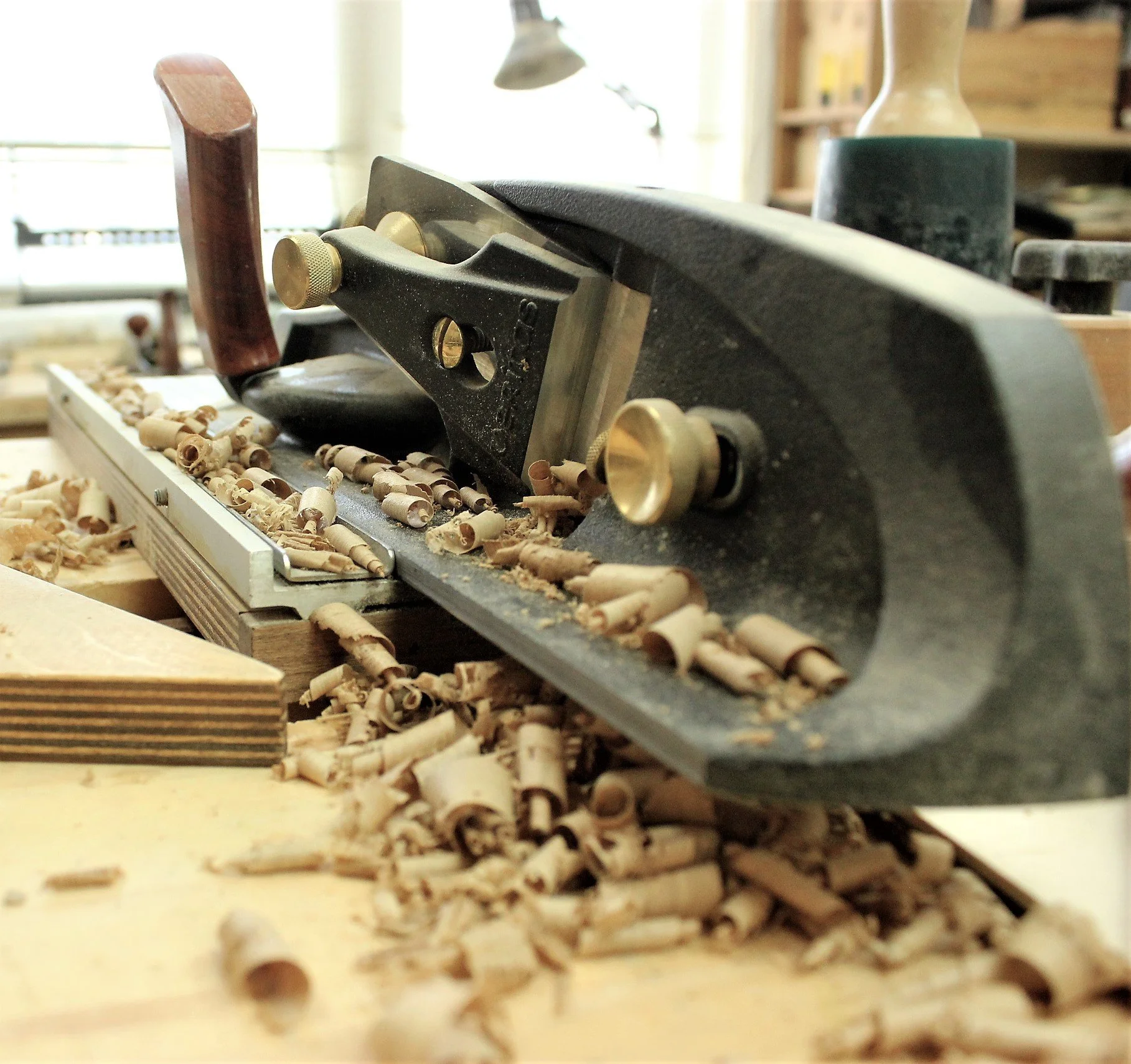

View fullsize Shooting board – hand made and well used

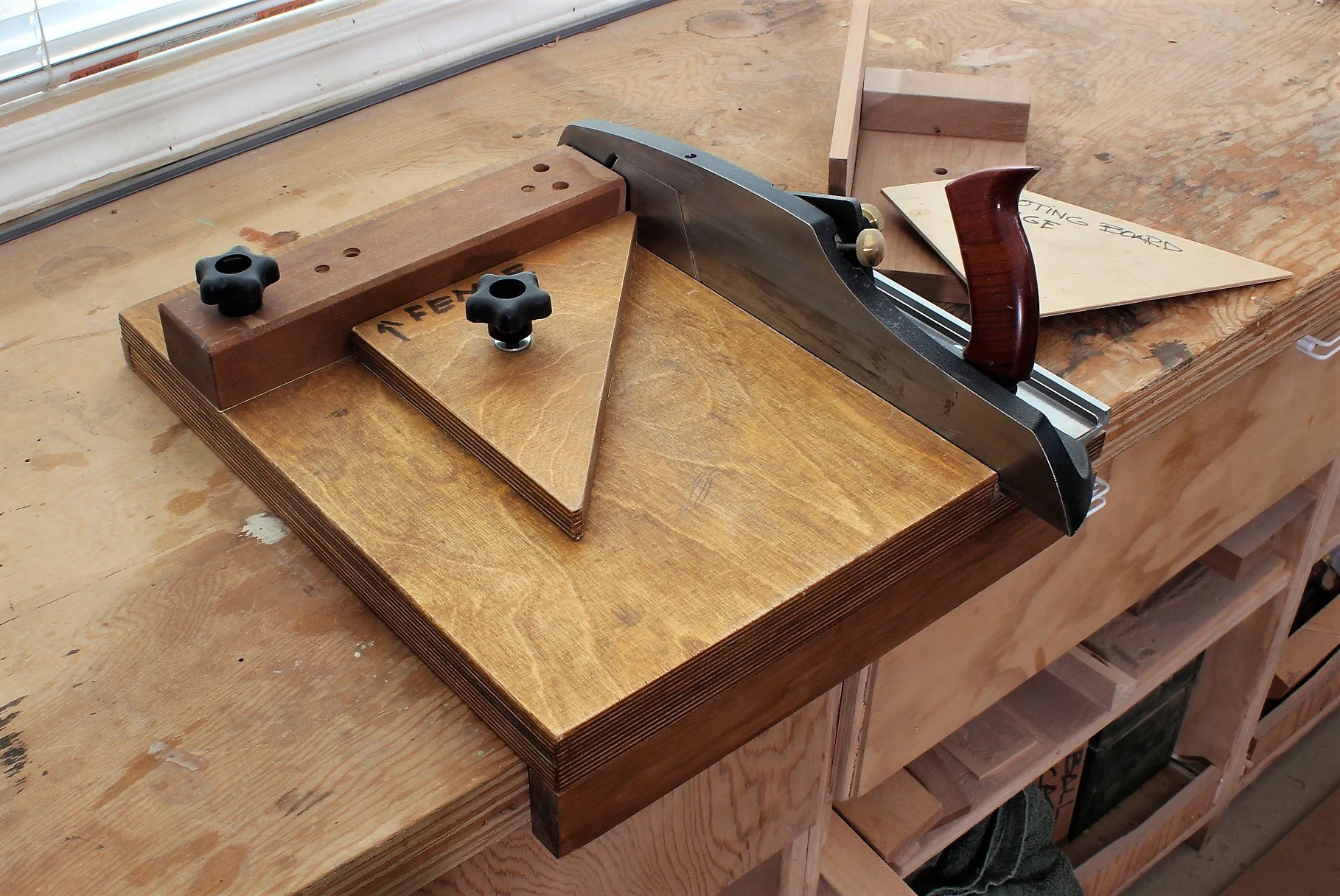

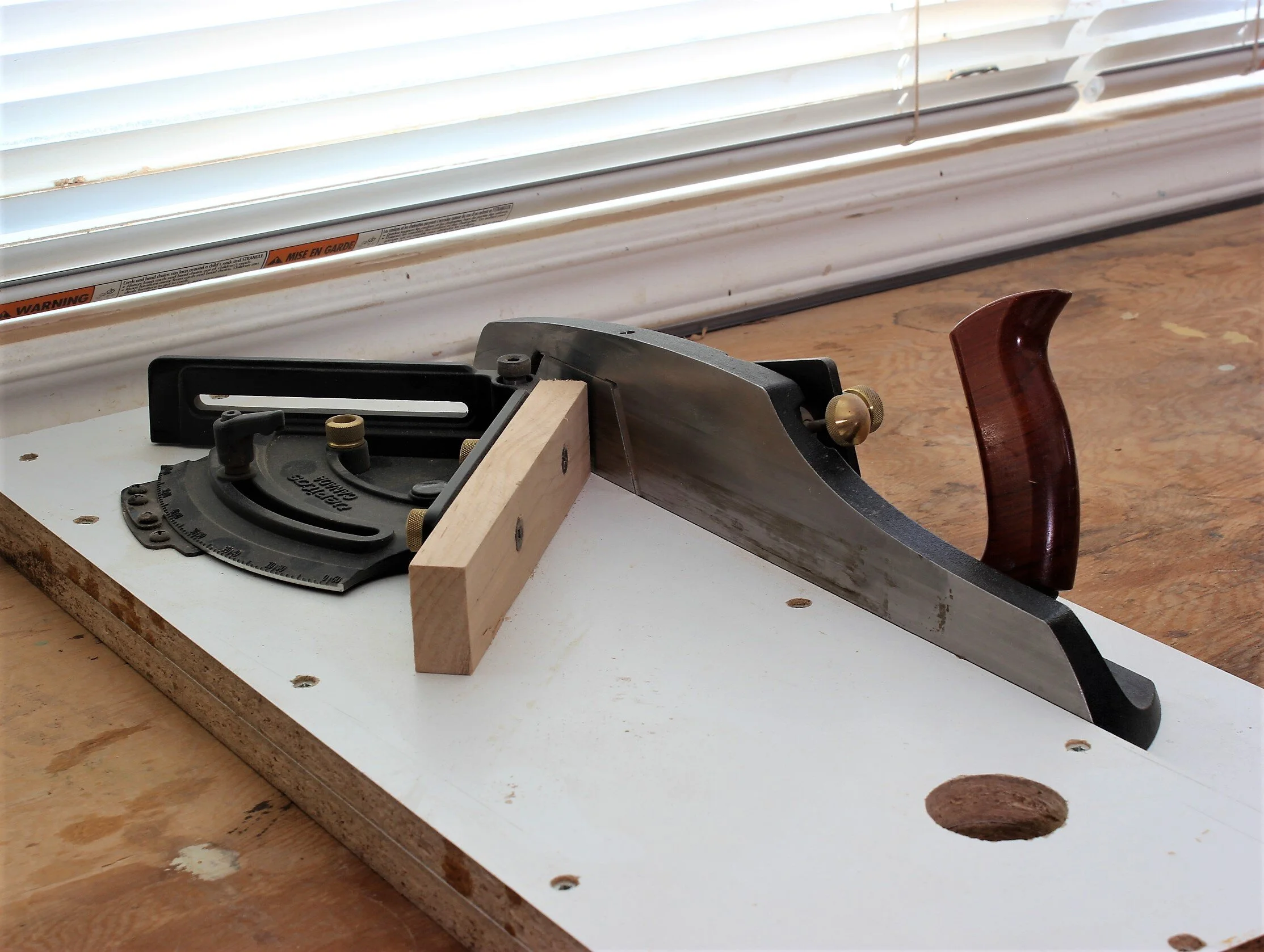

View fullsize New Veritas shooting board – quick adjustable angle feature

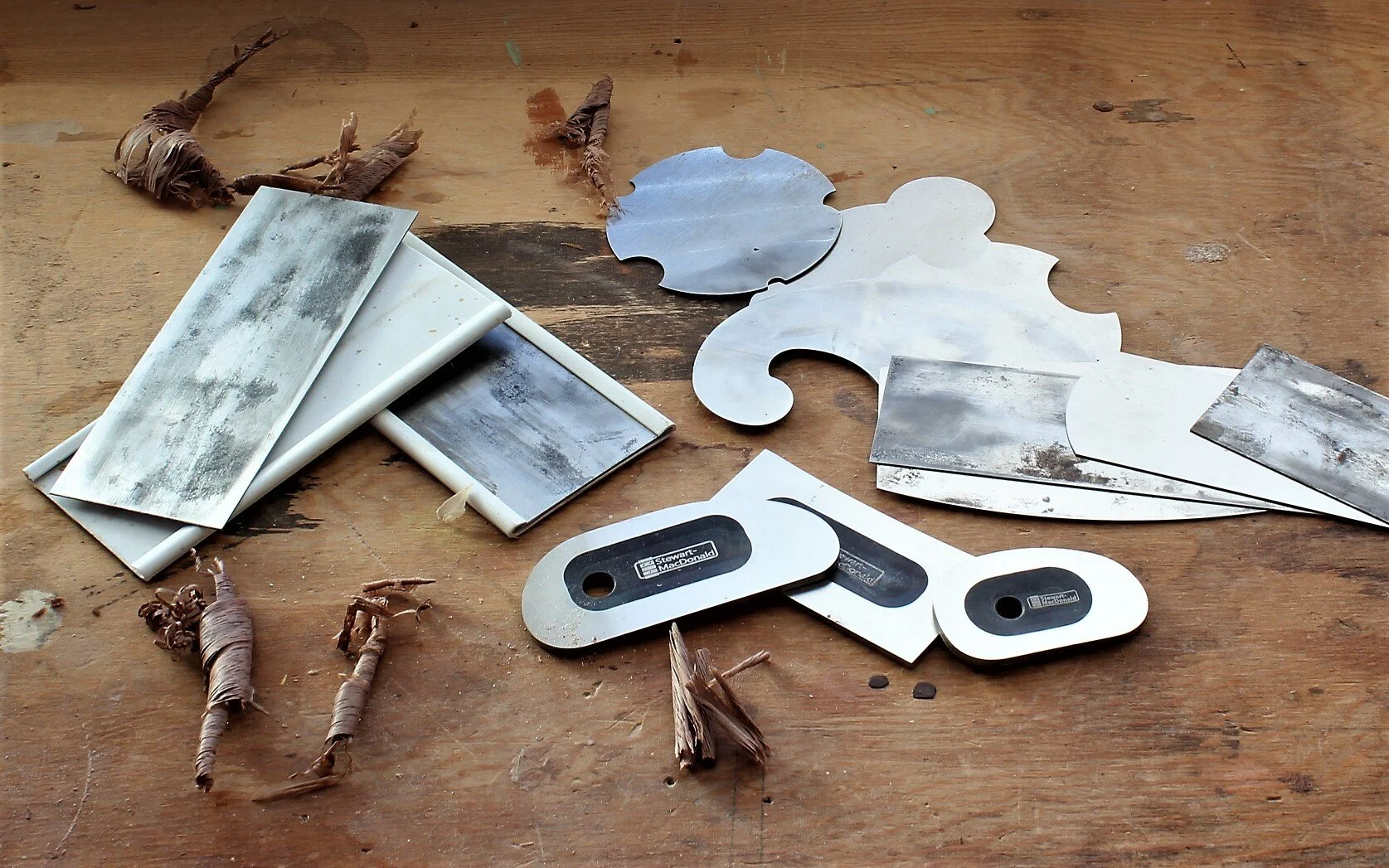

View fullsize Scrapers, luthier small scrapers (Stewart MacDonald)

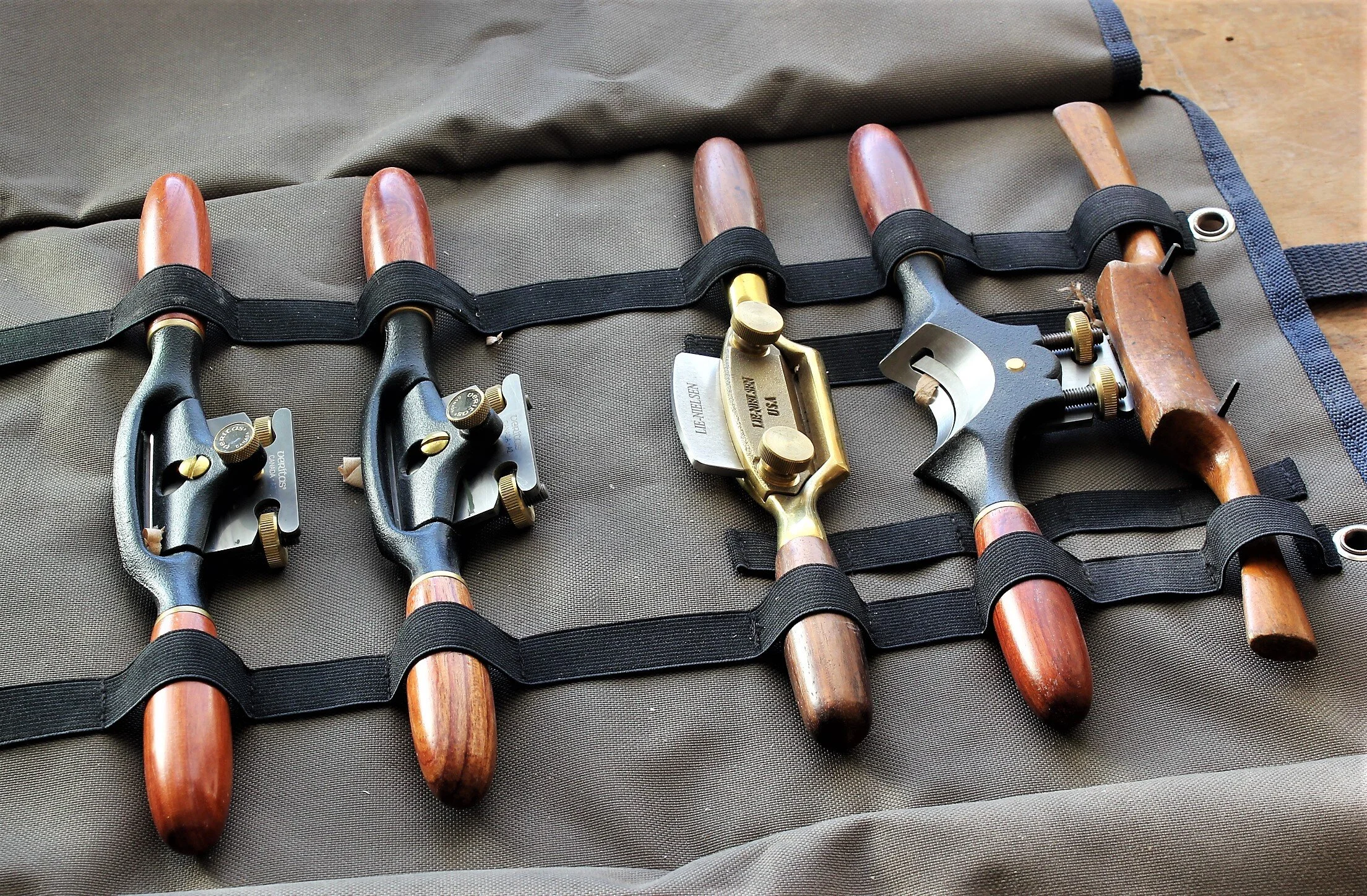

View fullsize Spokeshaves

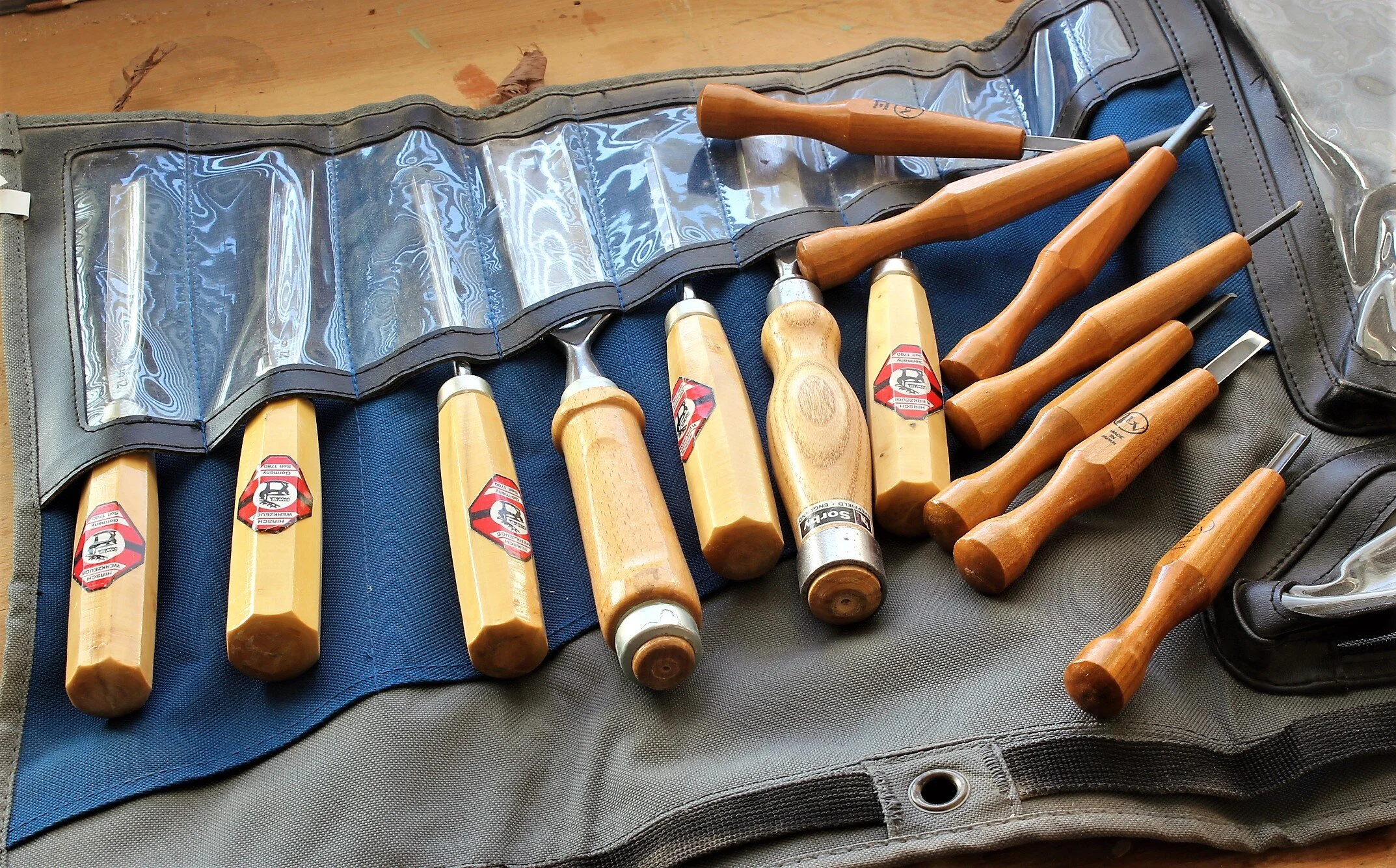

View fullsize Carving gouges

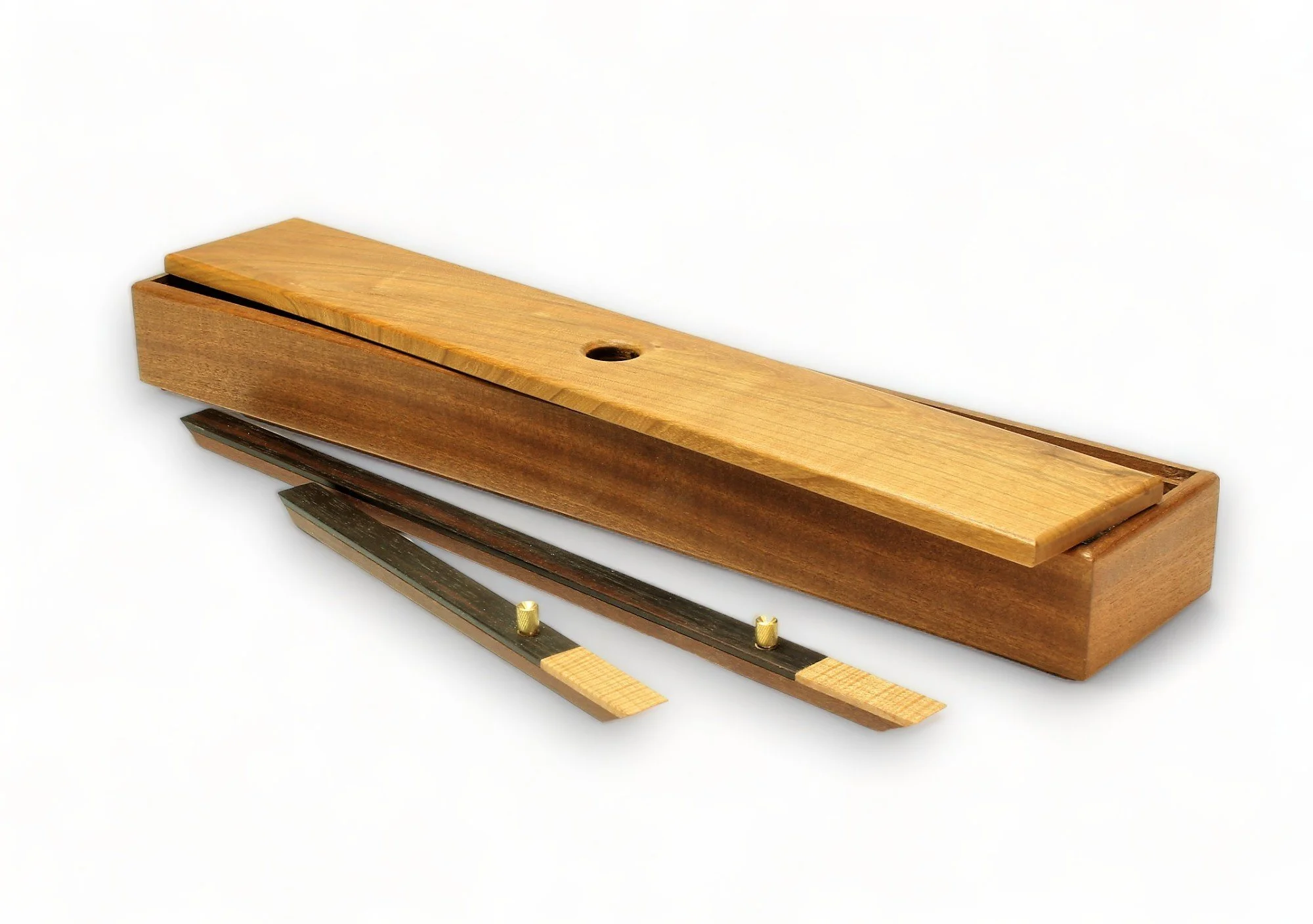

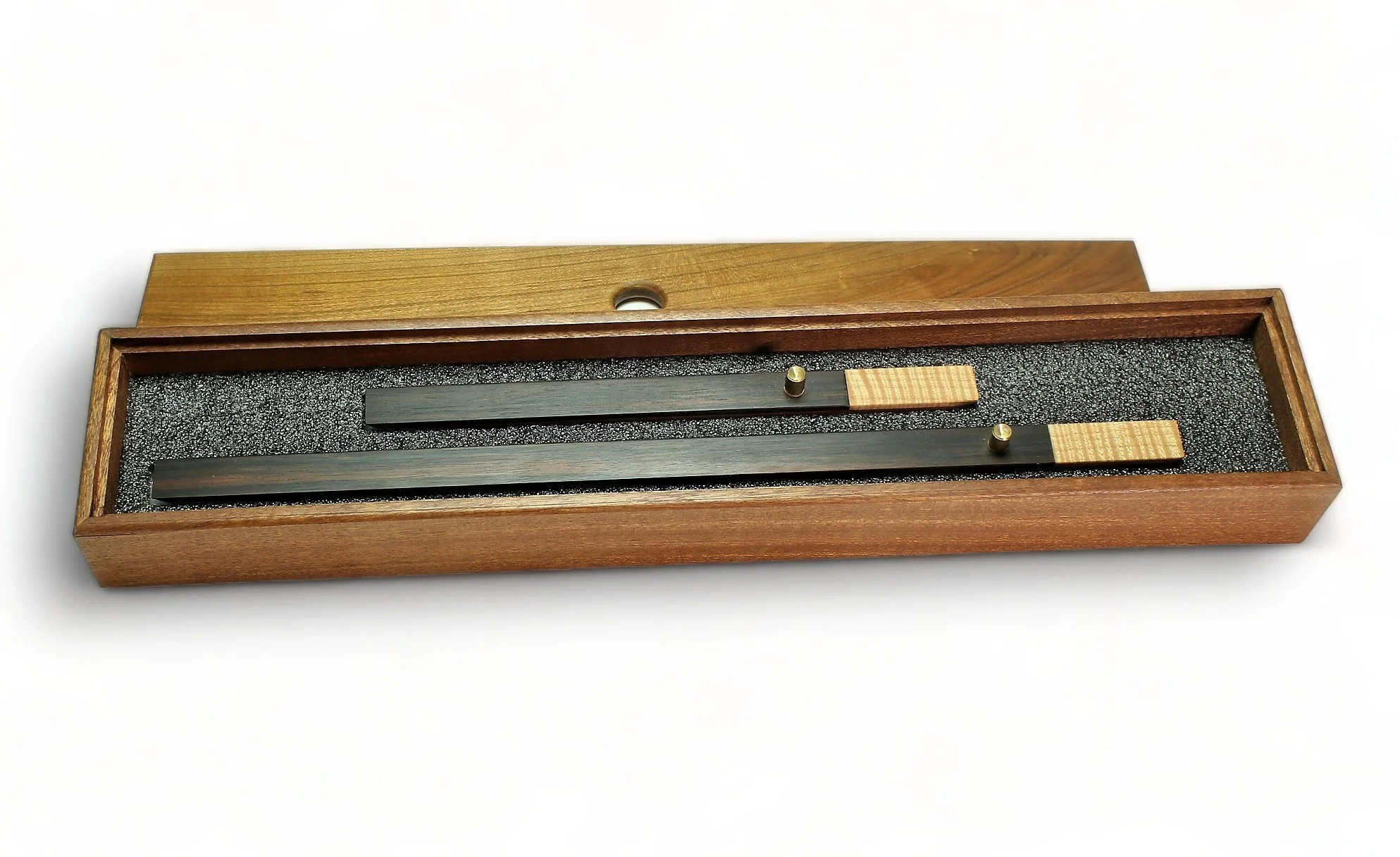

View fullsize Dovetail measuring tools

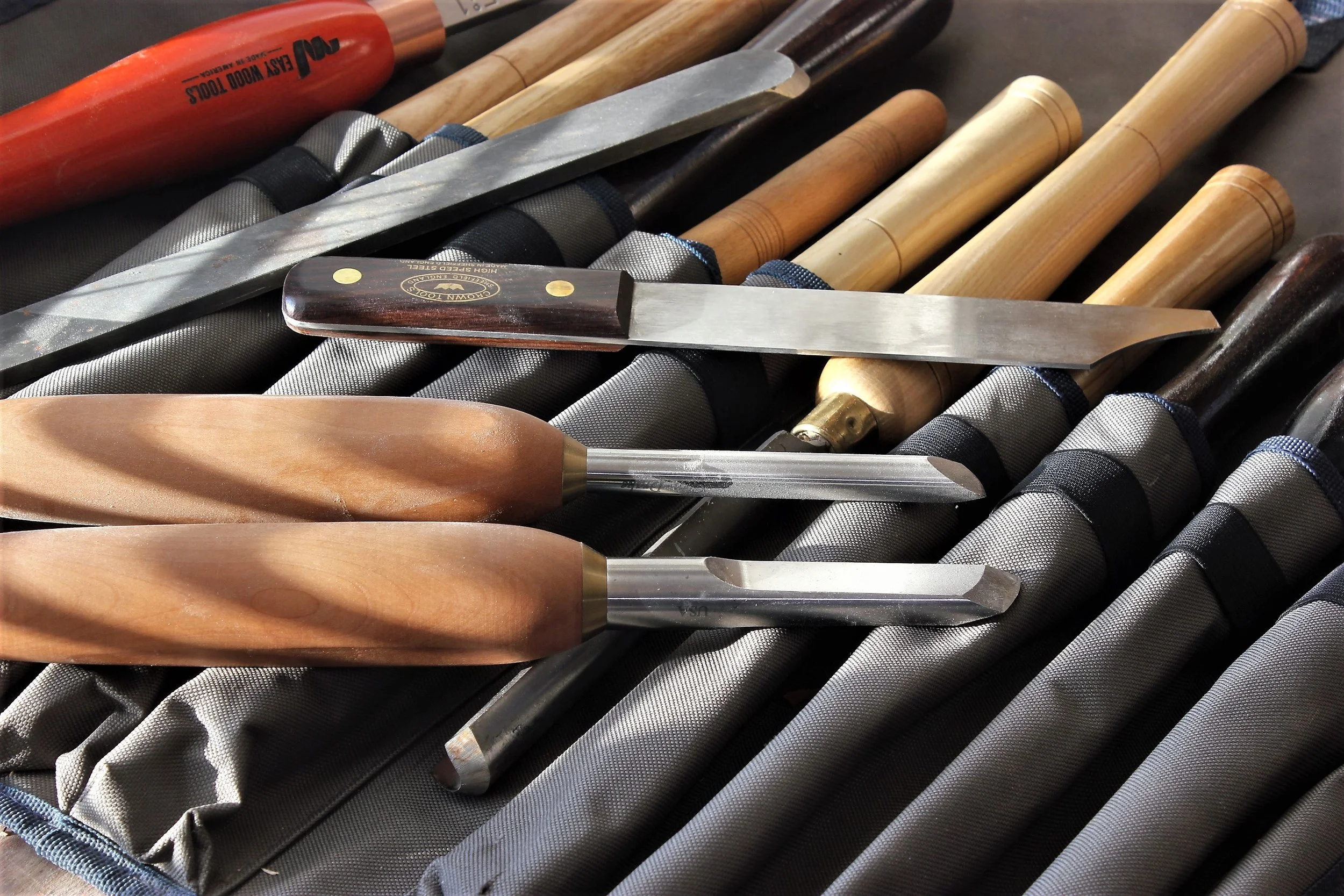

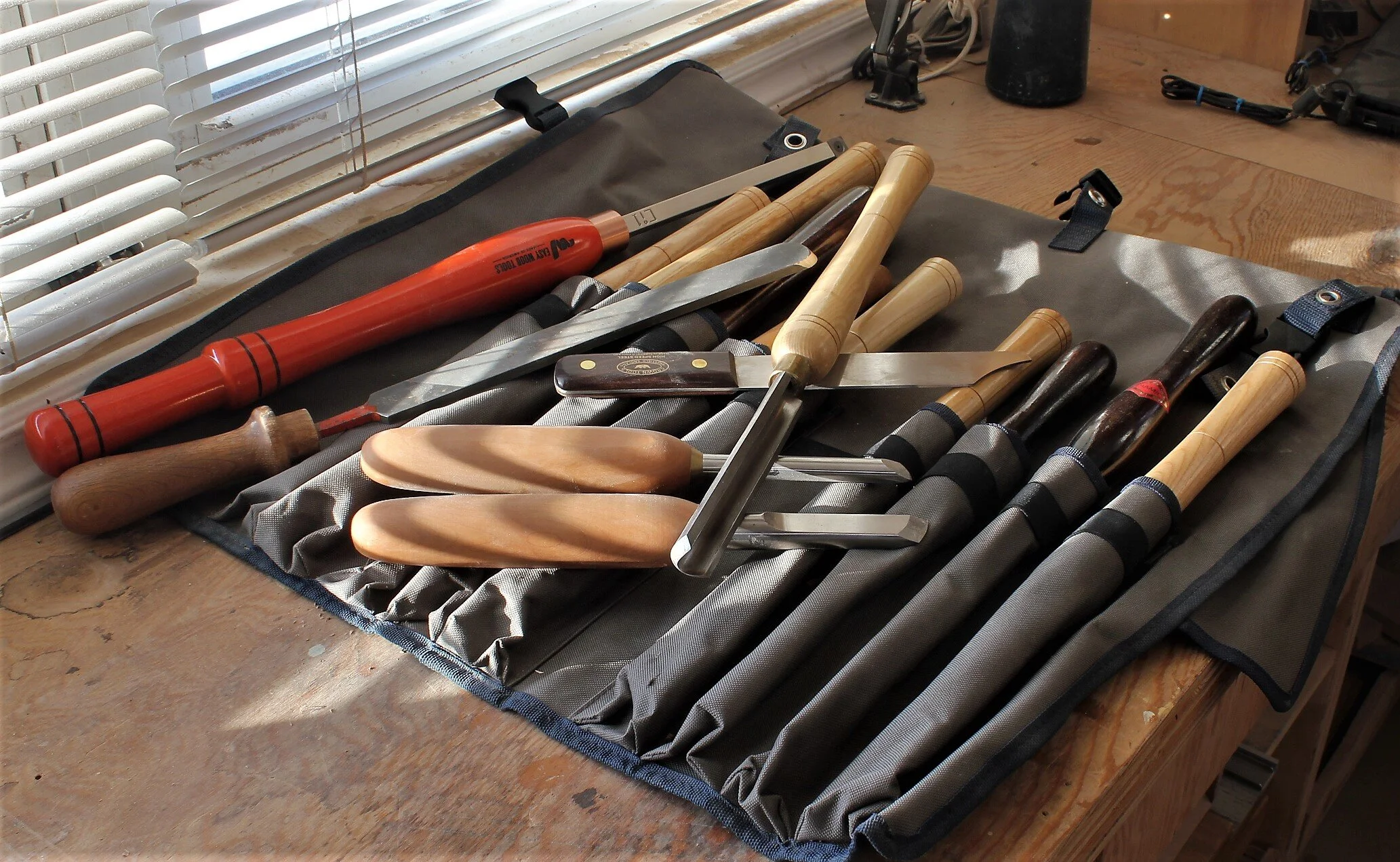

View fullsize Wood turning gouges

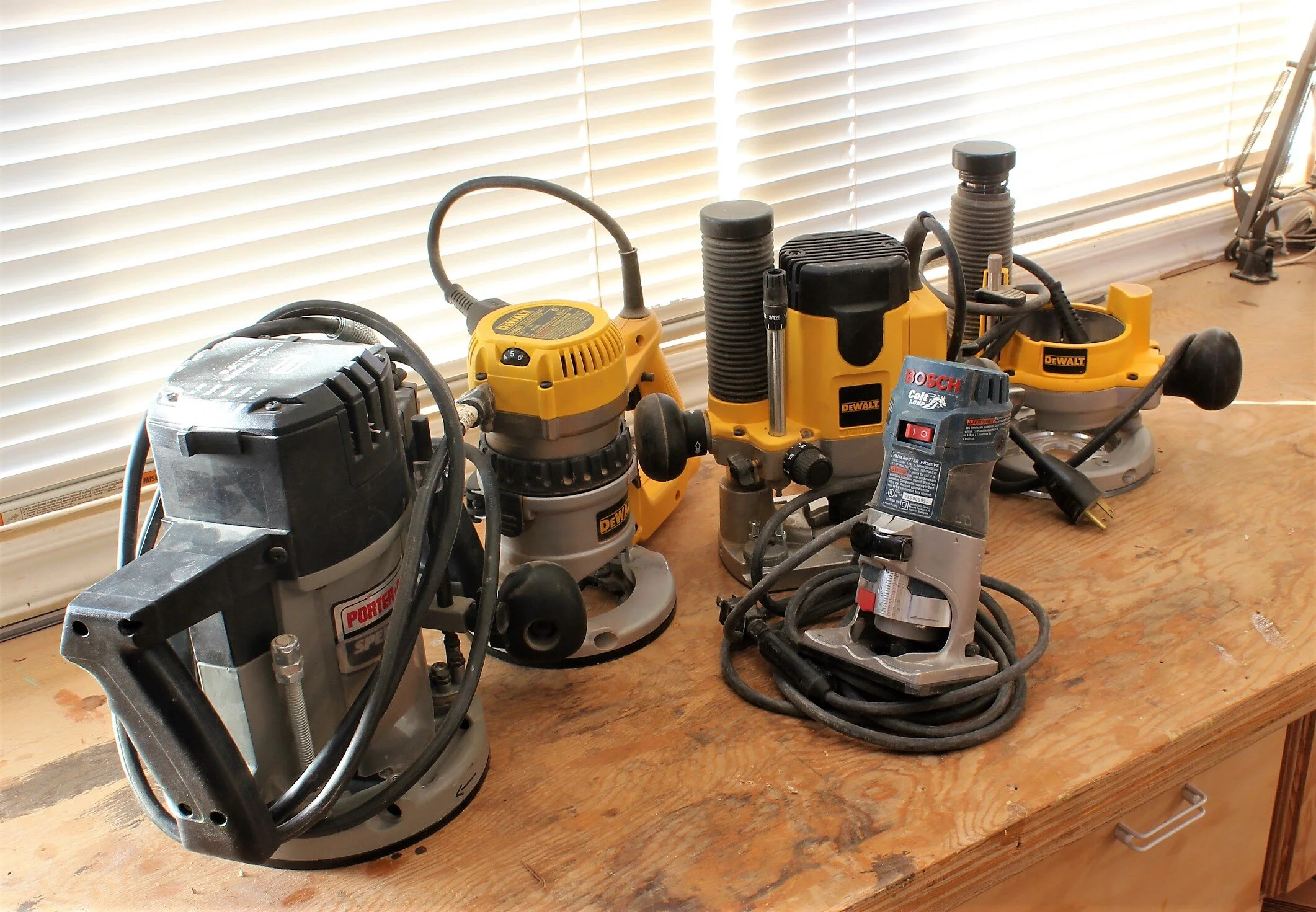

View fullsize Routers ranging from the Porter Cable beast to the Bosch trim router

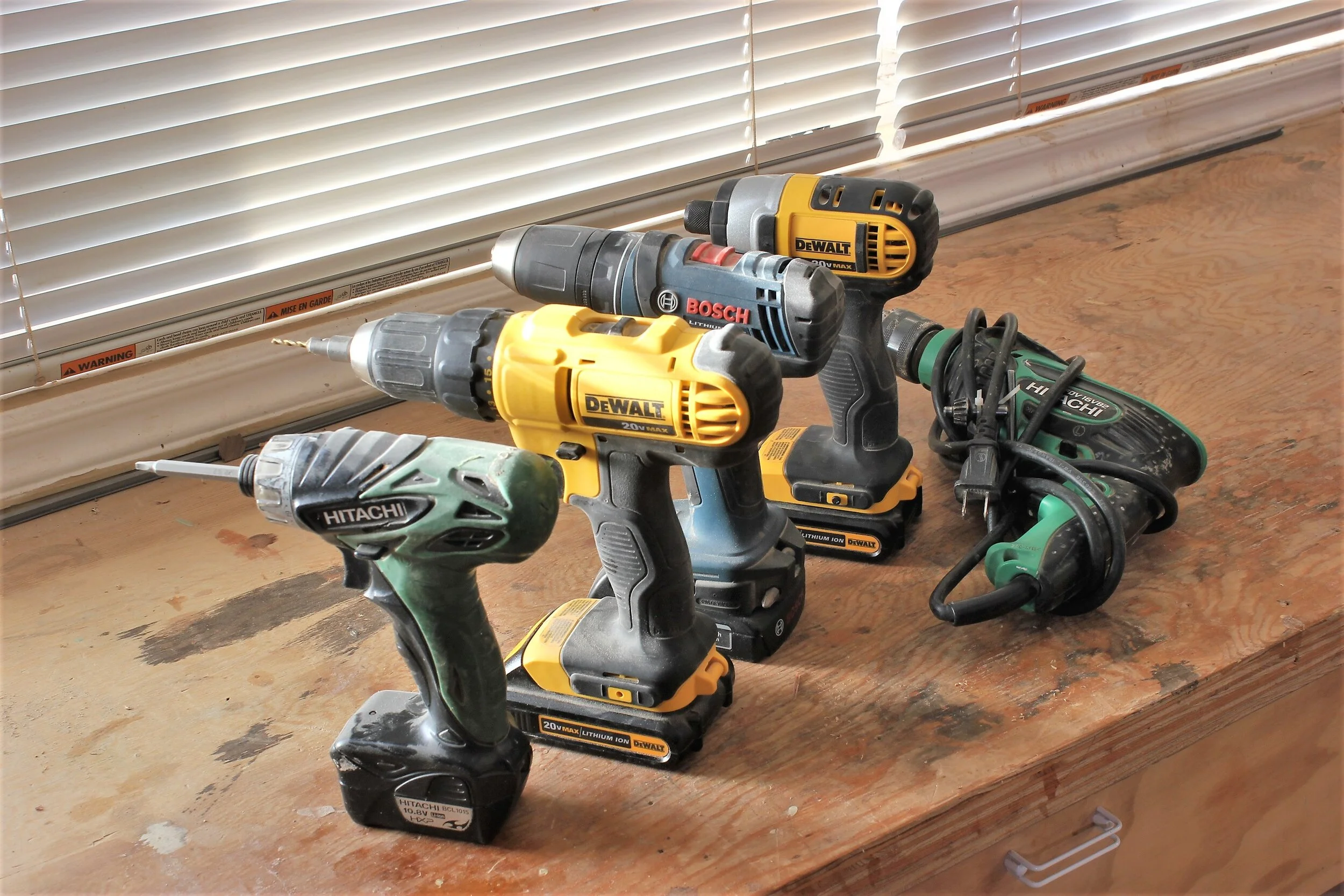

View fullsize Cordless and corded drills

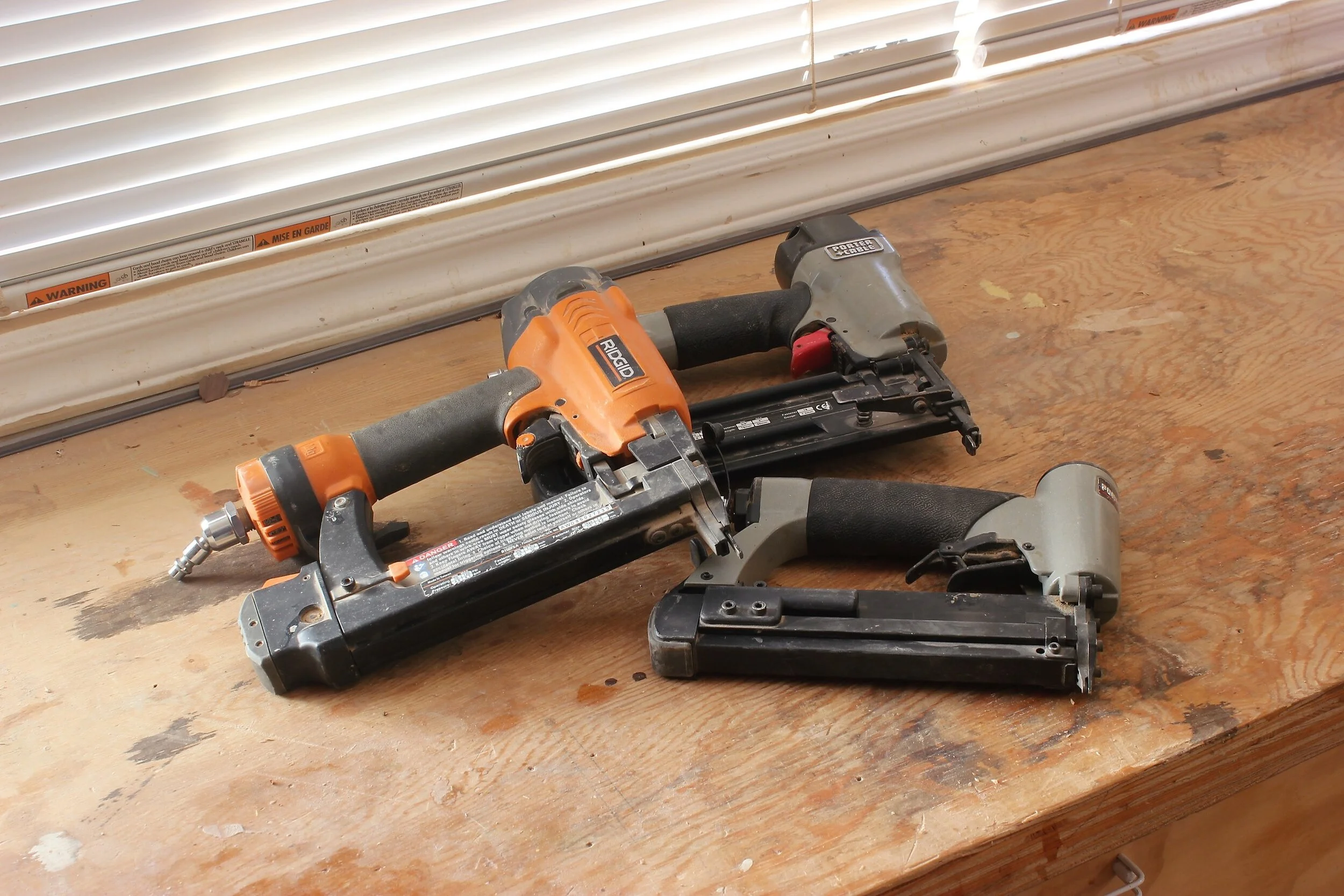

View fullsize Pin, brad and staple nailers

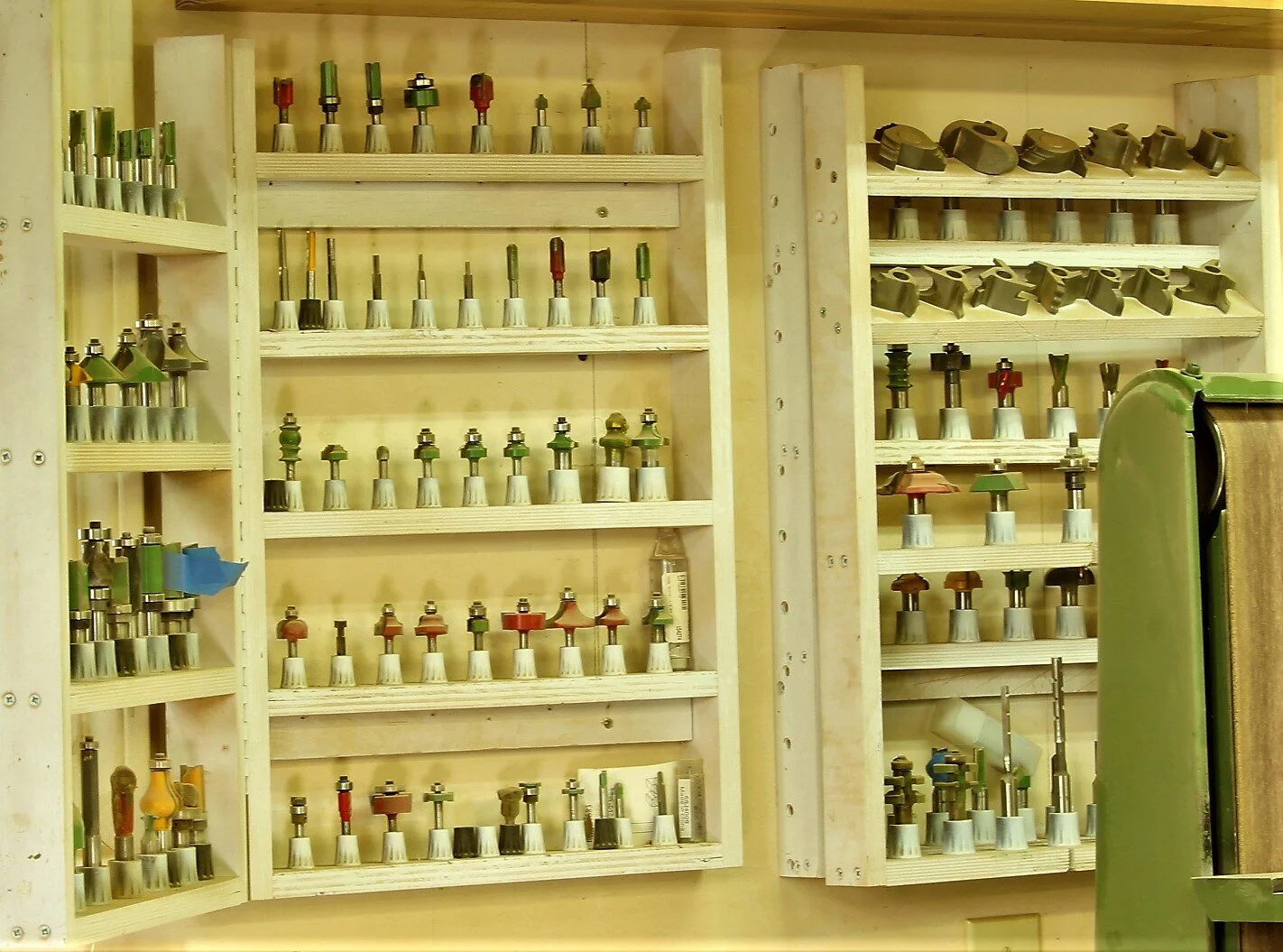

View fullsize Router and shaper cutters

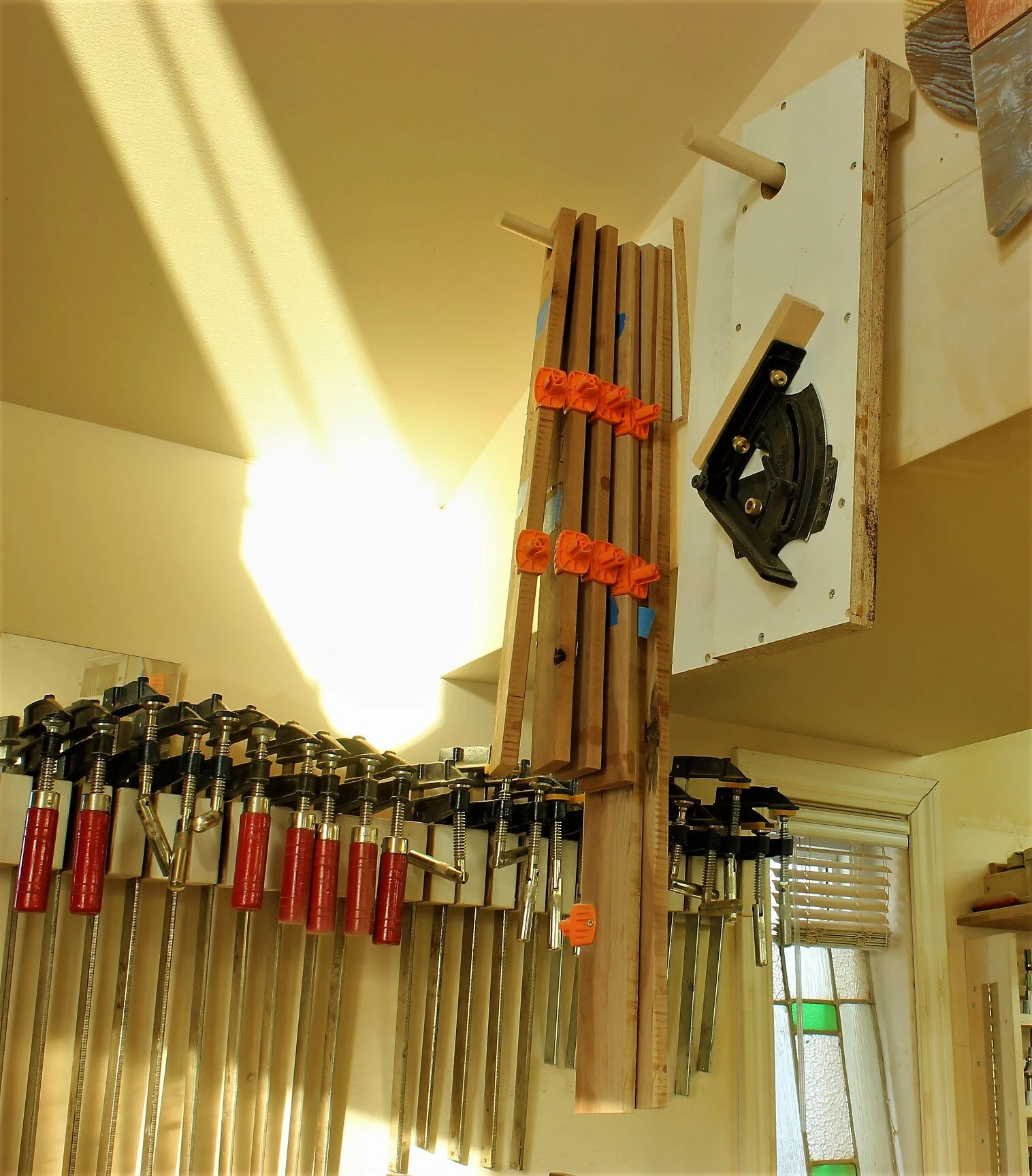

View fullsize IMG_7698.jpg

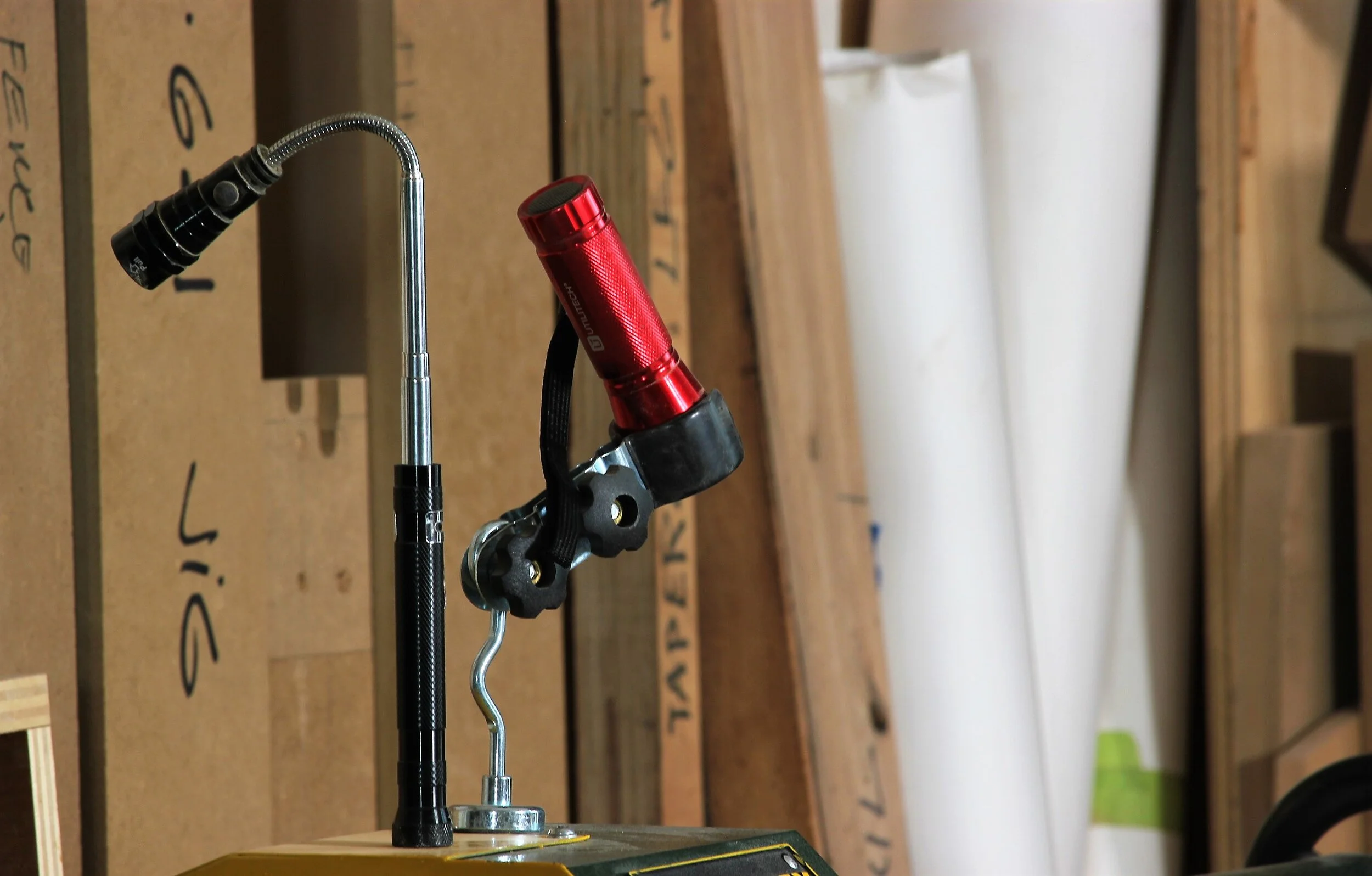

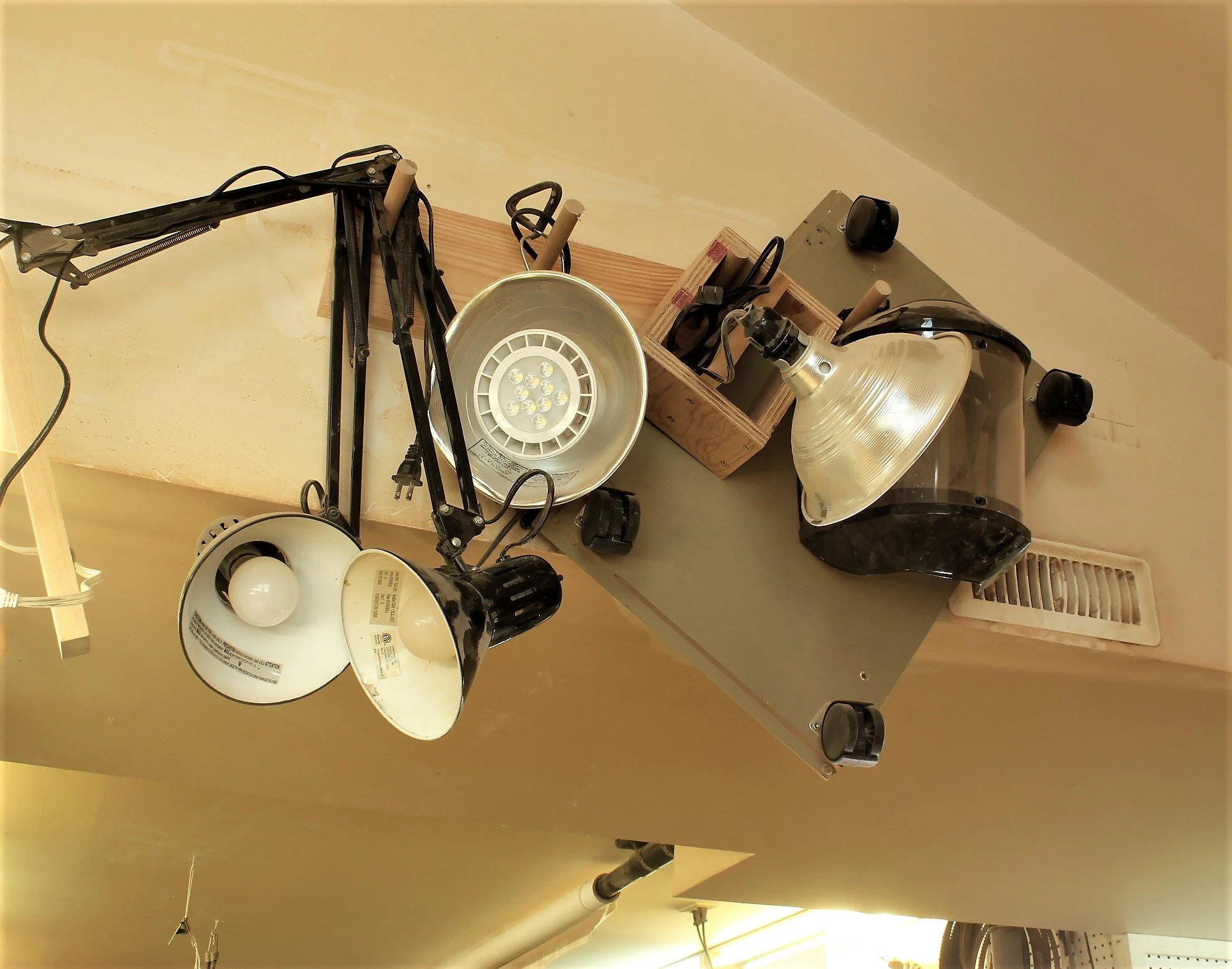

View fullsize Lighting is so important when working - I have many different styles and sizes
View fullsize More lighting for raking light to help with finishing

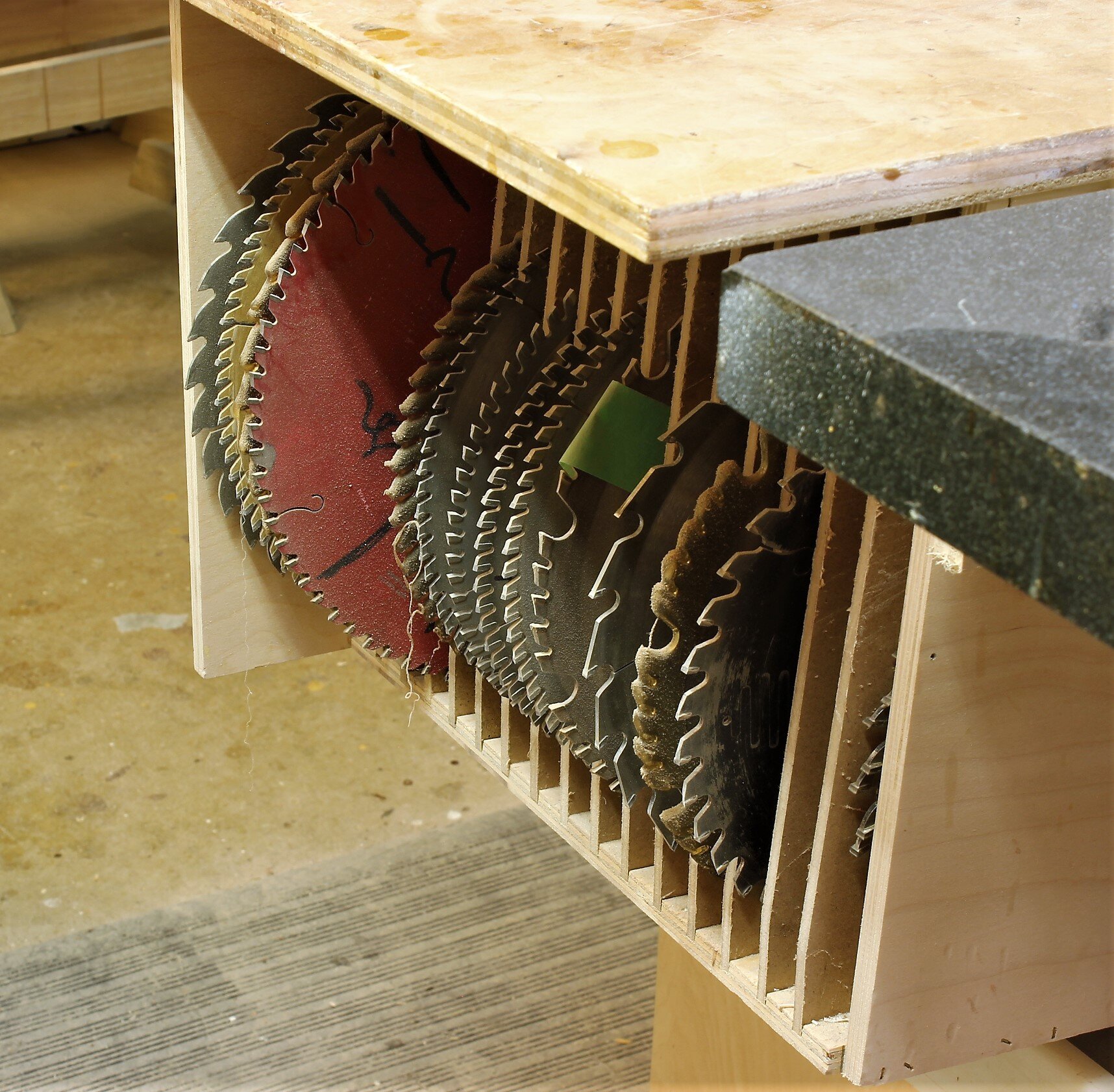

View fullsize Blades for various applications

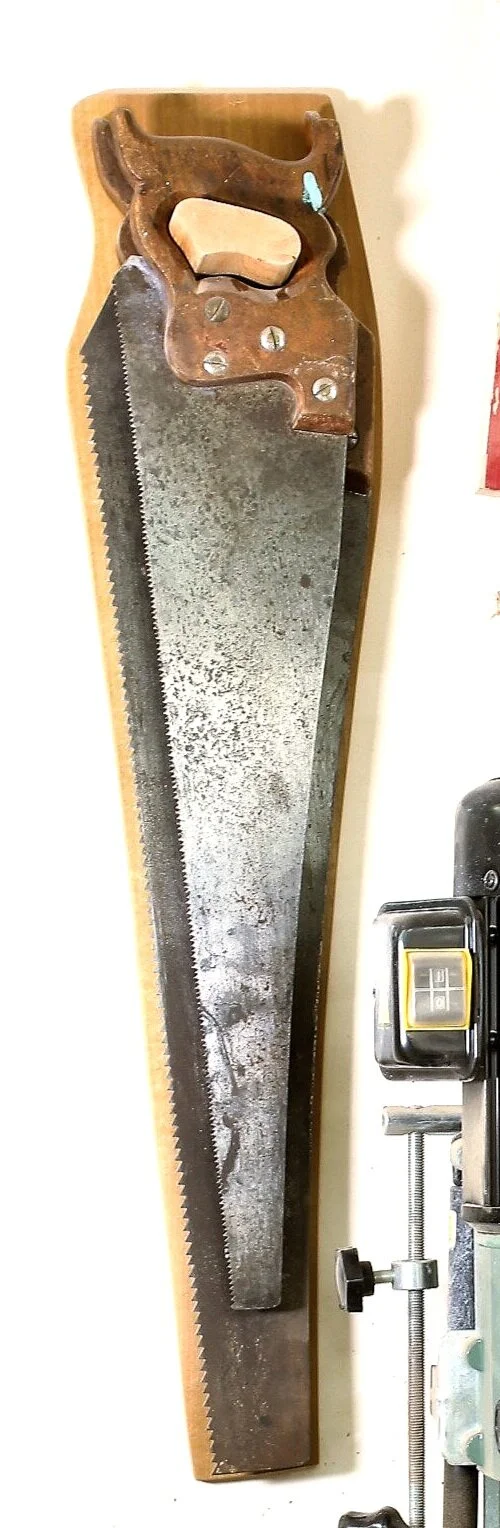

View fullsize My dad`s hand saws – I still use them

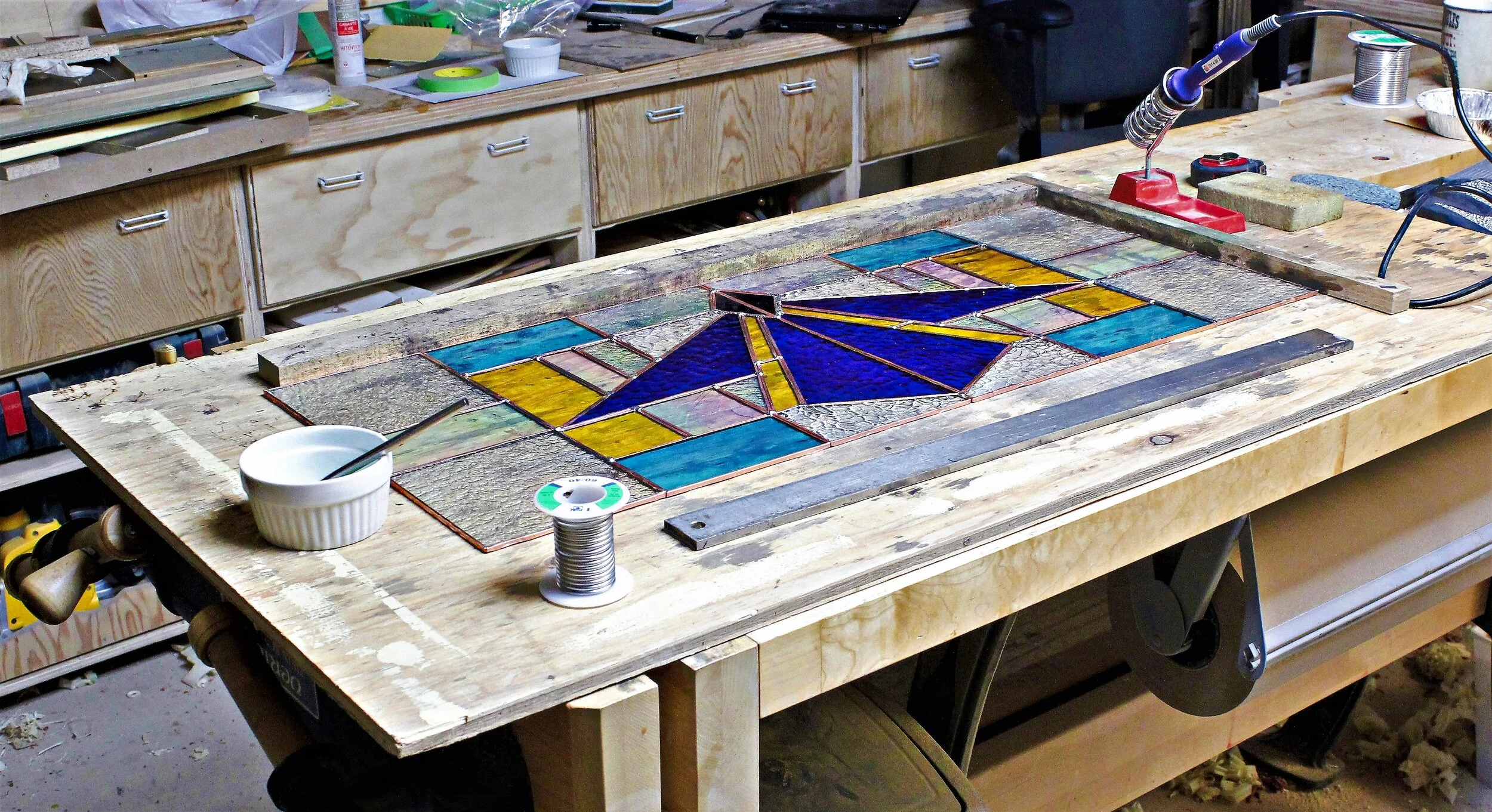

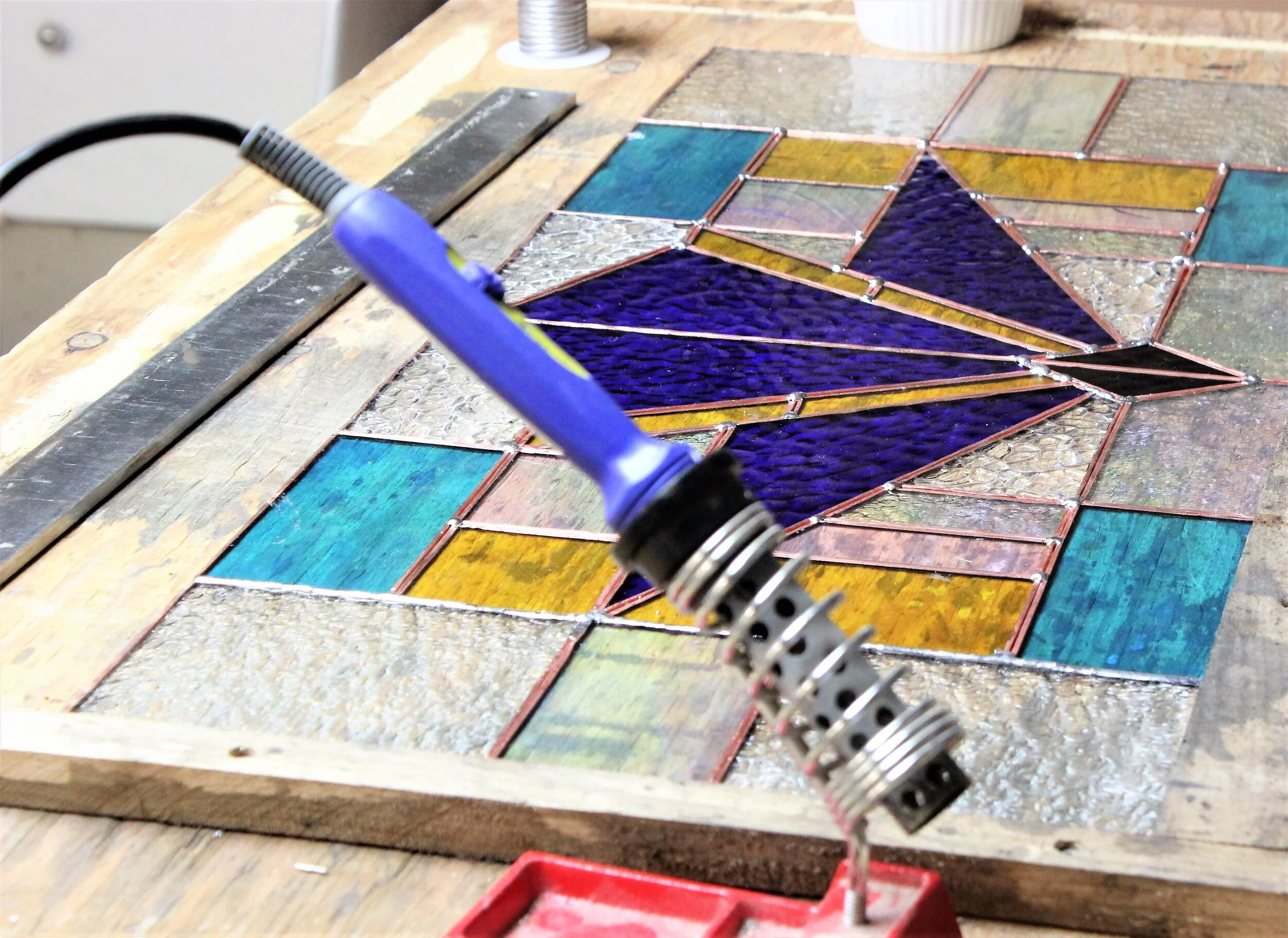

View fullsize Stain glass heating iron

 Jigs and hand made tools

Original work requires many “one time only” jigs to shape, bend and cut components. Some tools, not available commercially, are also created for specific tasks. Here are some examples.

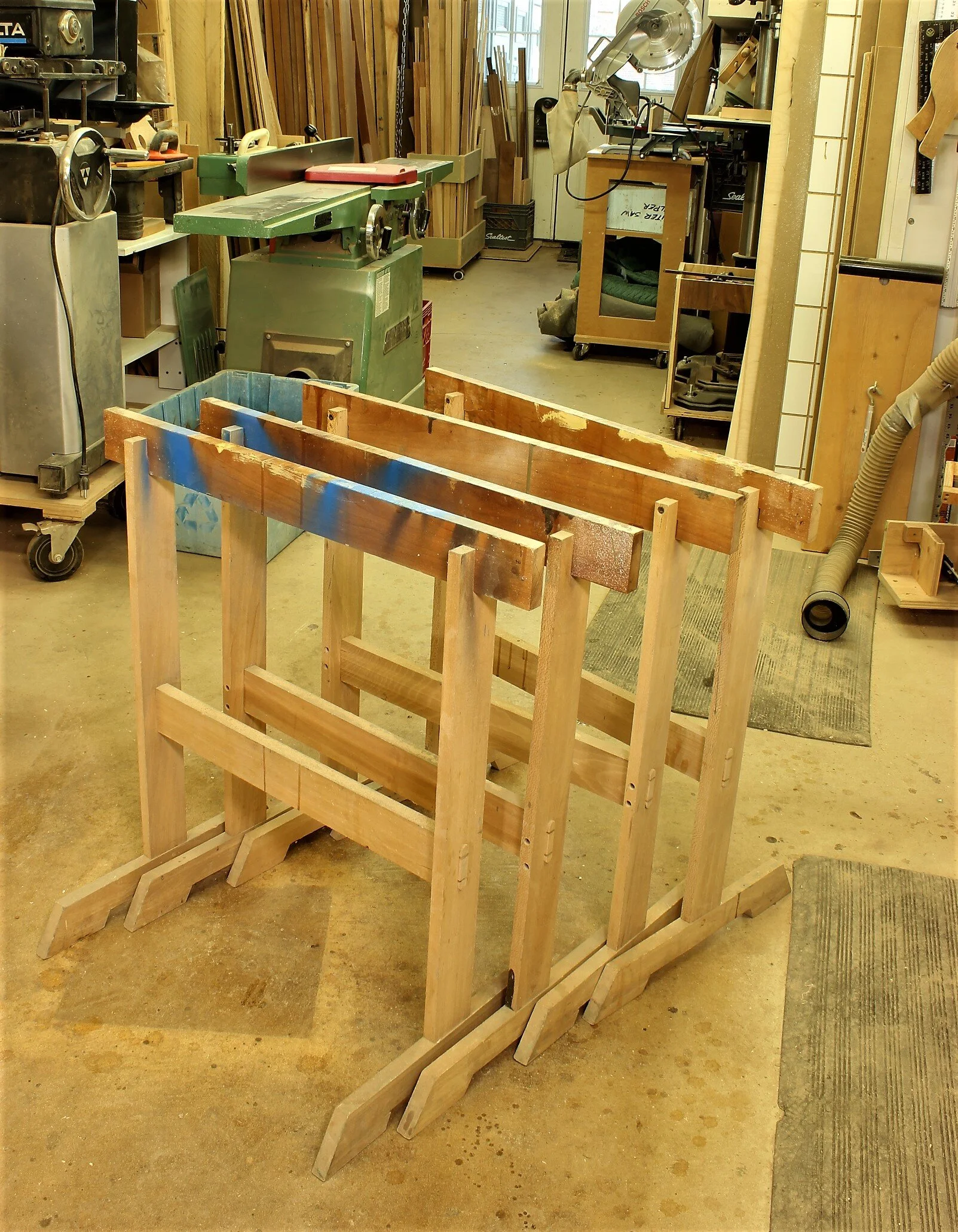

View fullsize Krenovian work horses – in constant use

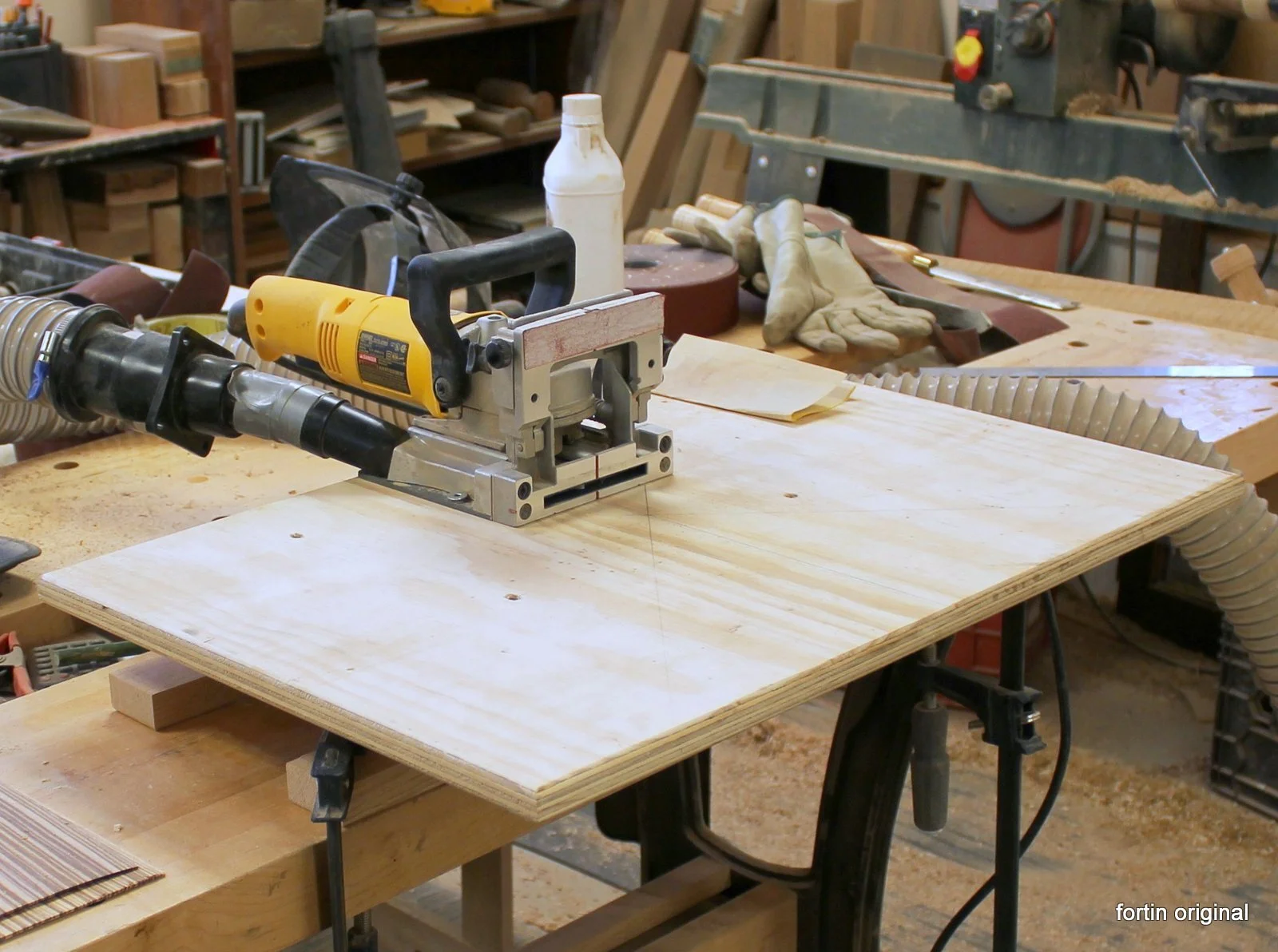

View fullsize Biscuit table for holding down your piece – Michael Fortune design

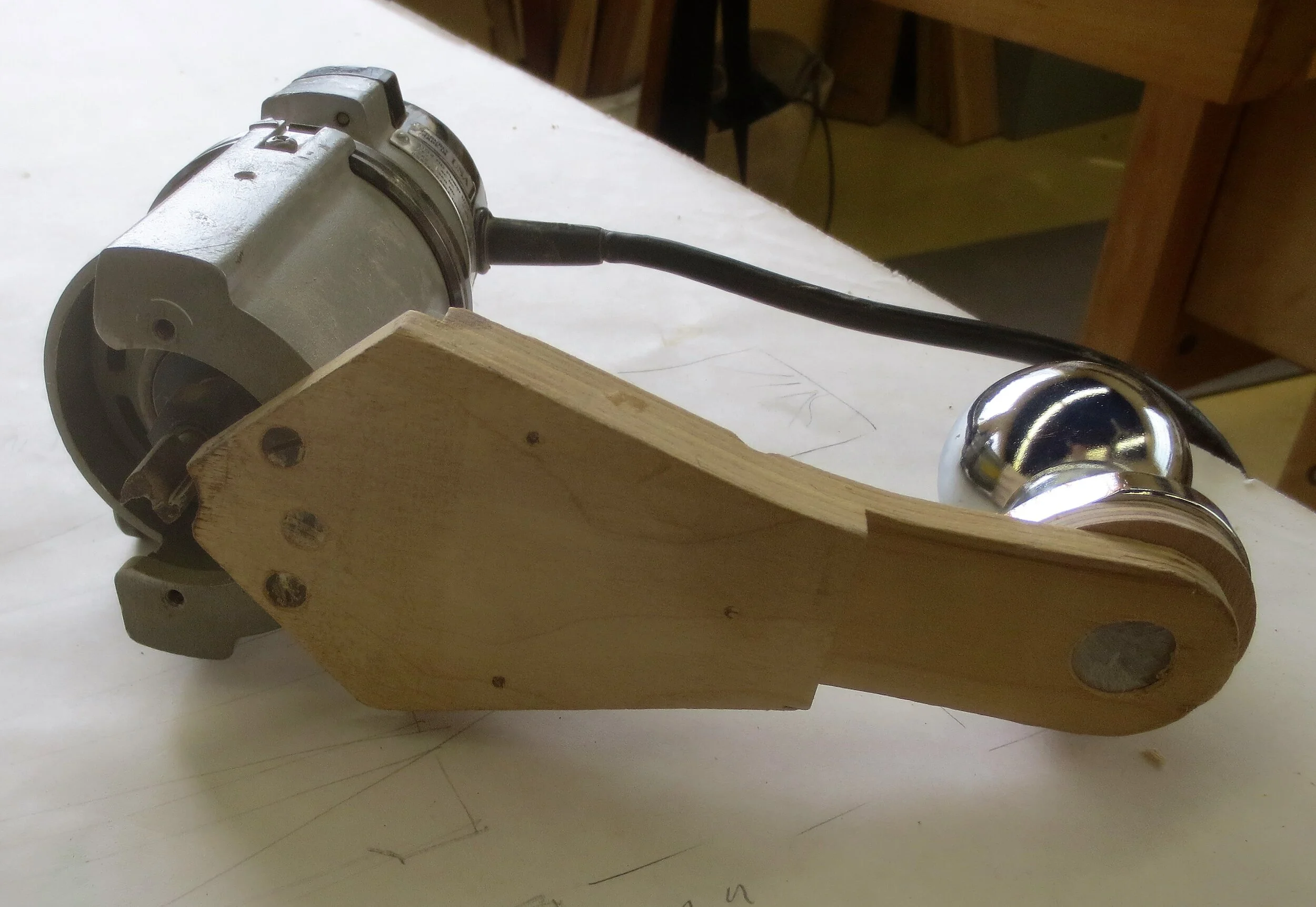

View fullsize Flush trimmer - Michael Fortune design

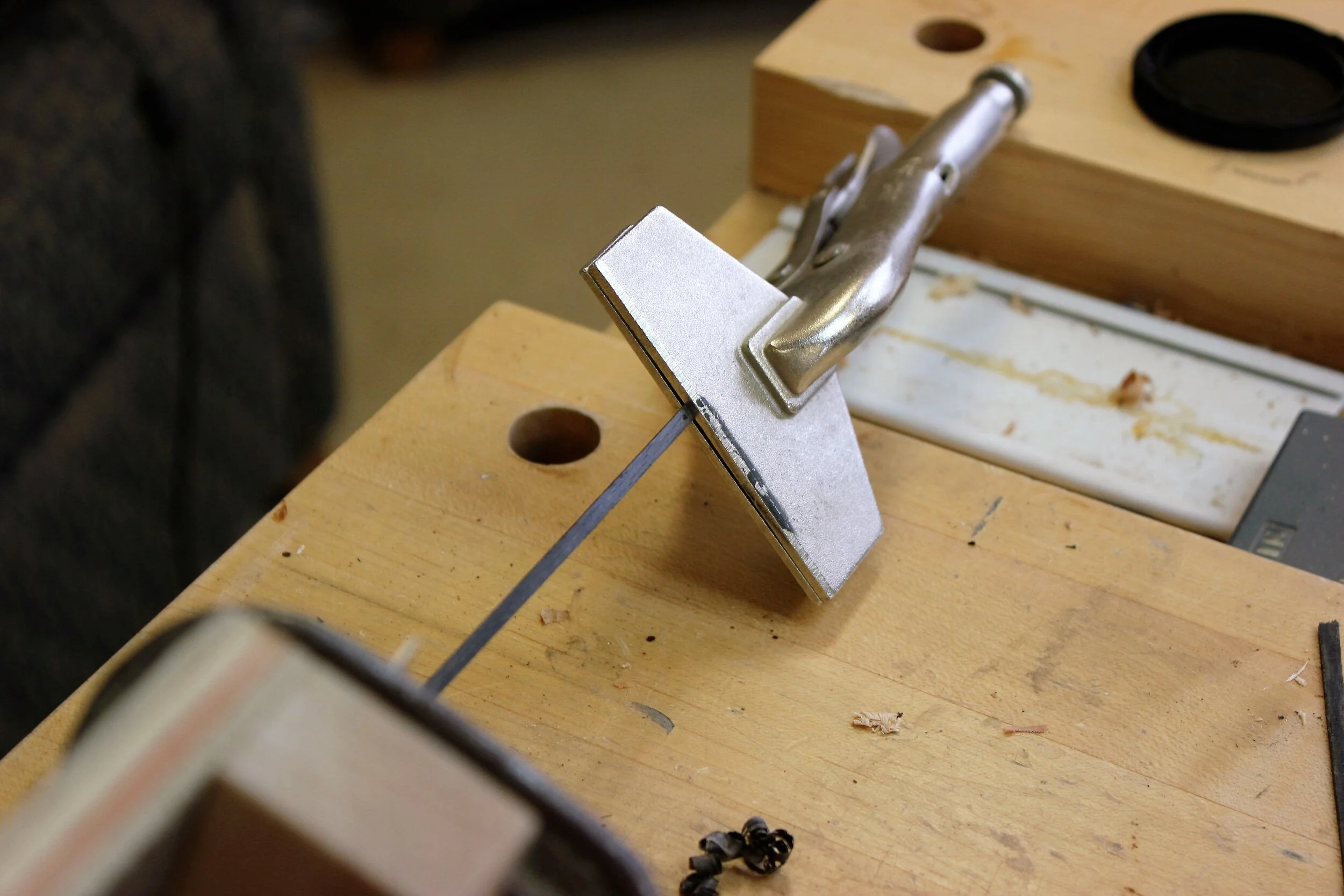

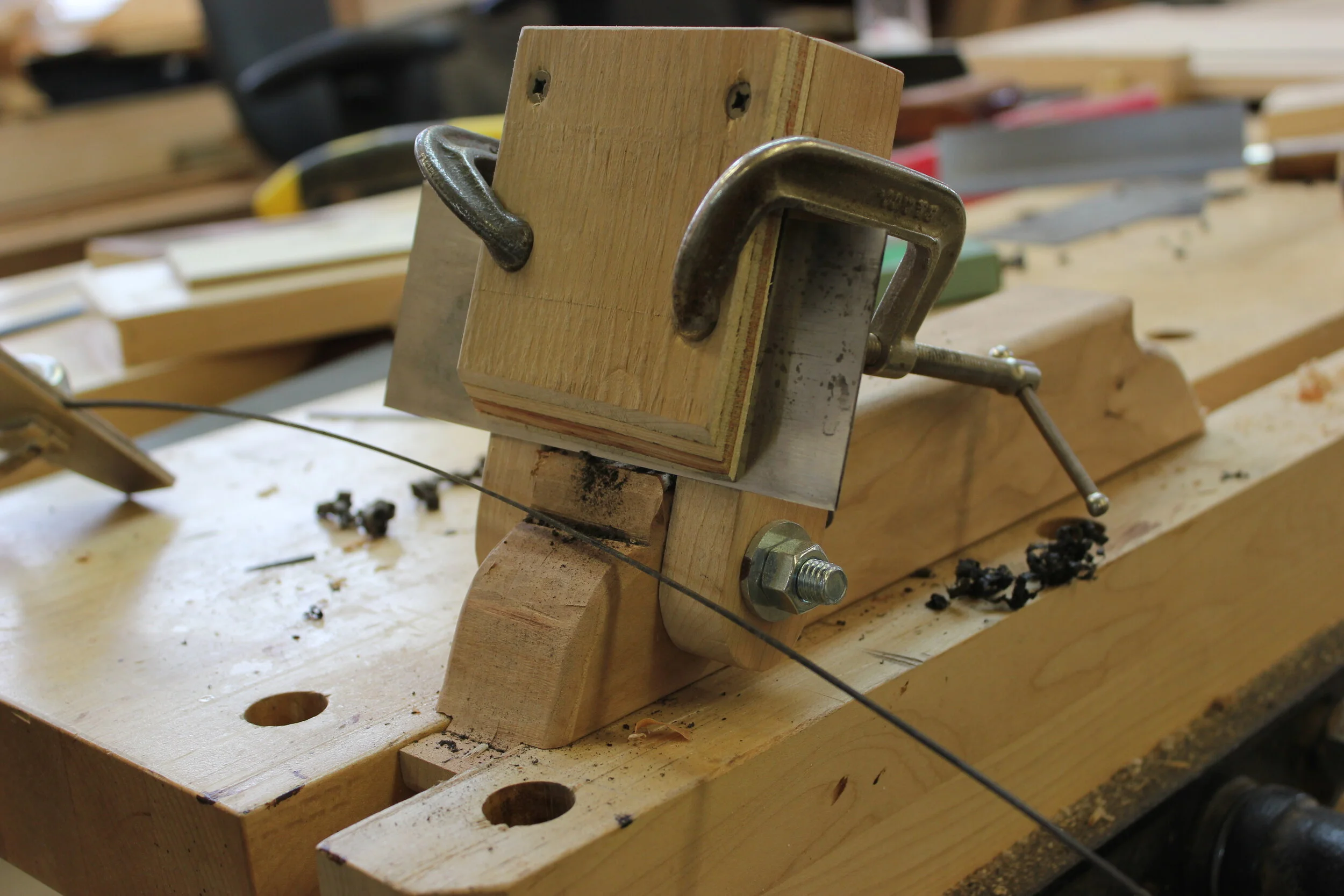

View fullsize Inlay thicknesser - Michael Fortune design

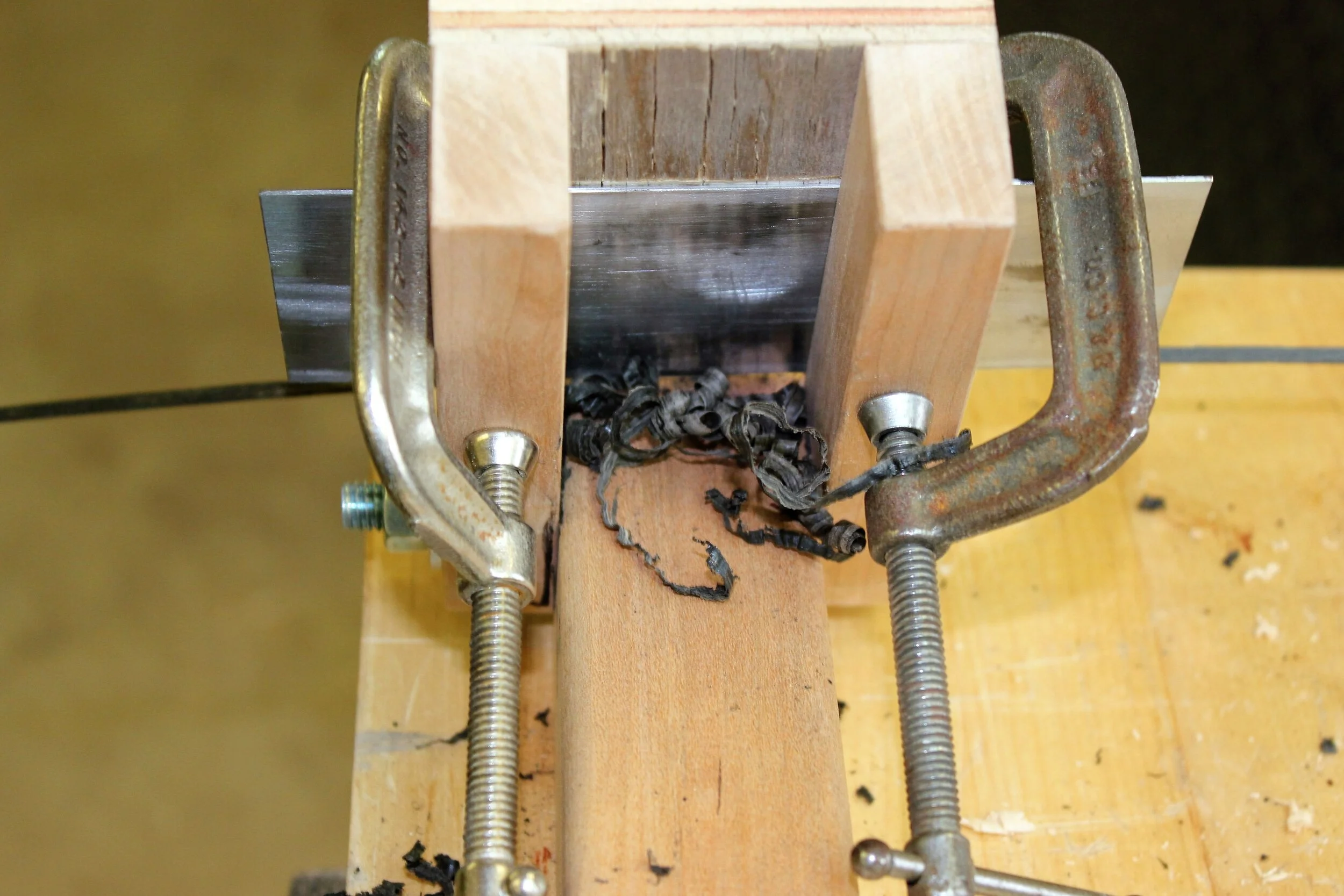

View fullsize Inlay thicknesser, feed your stock through… (where the shavings are)
View fullsize Inlay thicknesser, …and pull. Works like a charm.

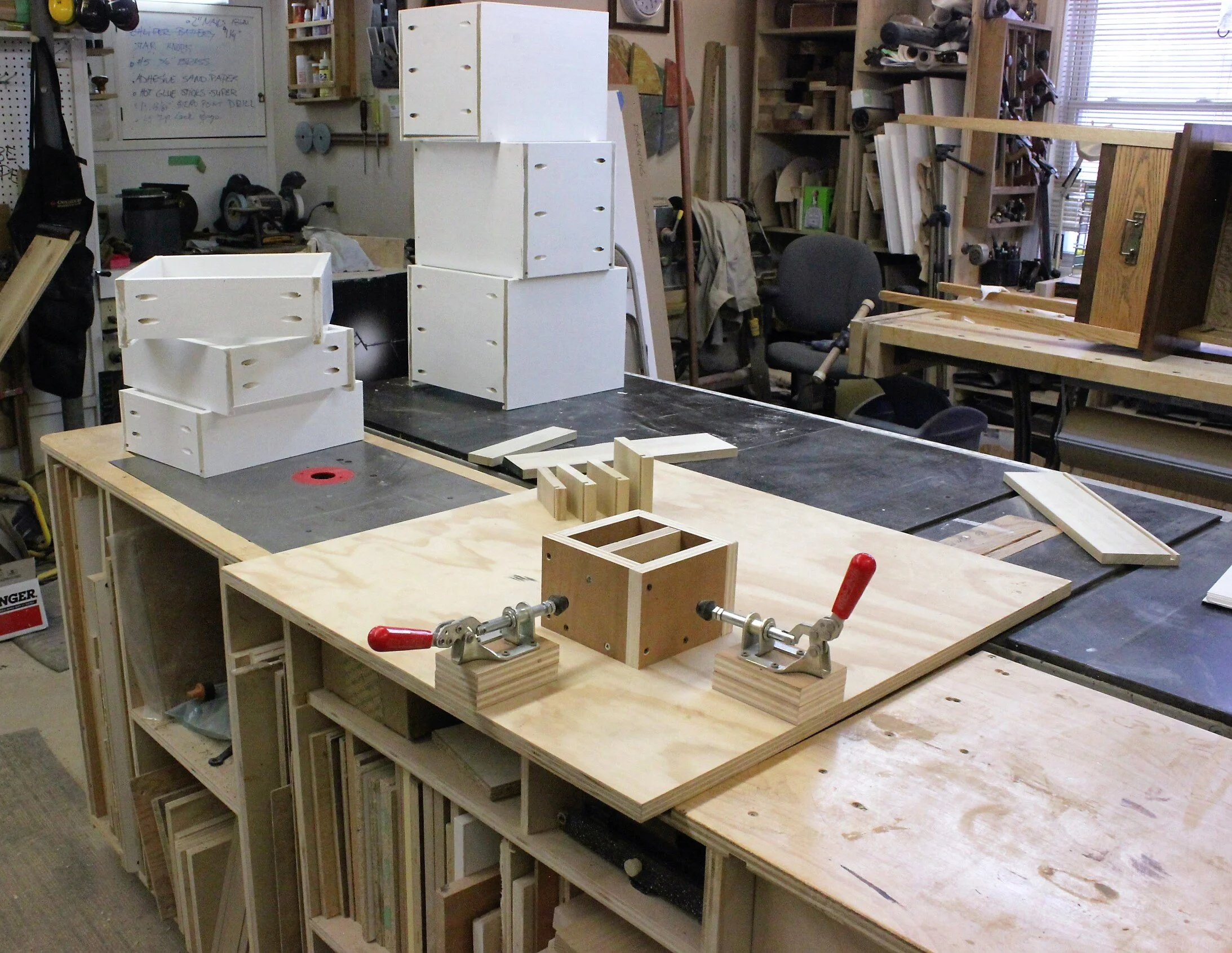

View fullsize Box assembly jig for use with your Kregg tool
View fullsize It holds the walls of the box square, flush and stable…

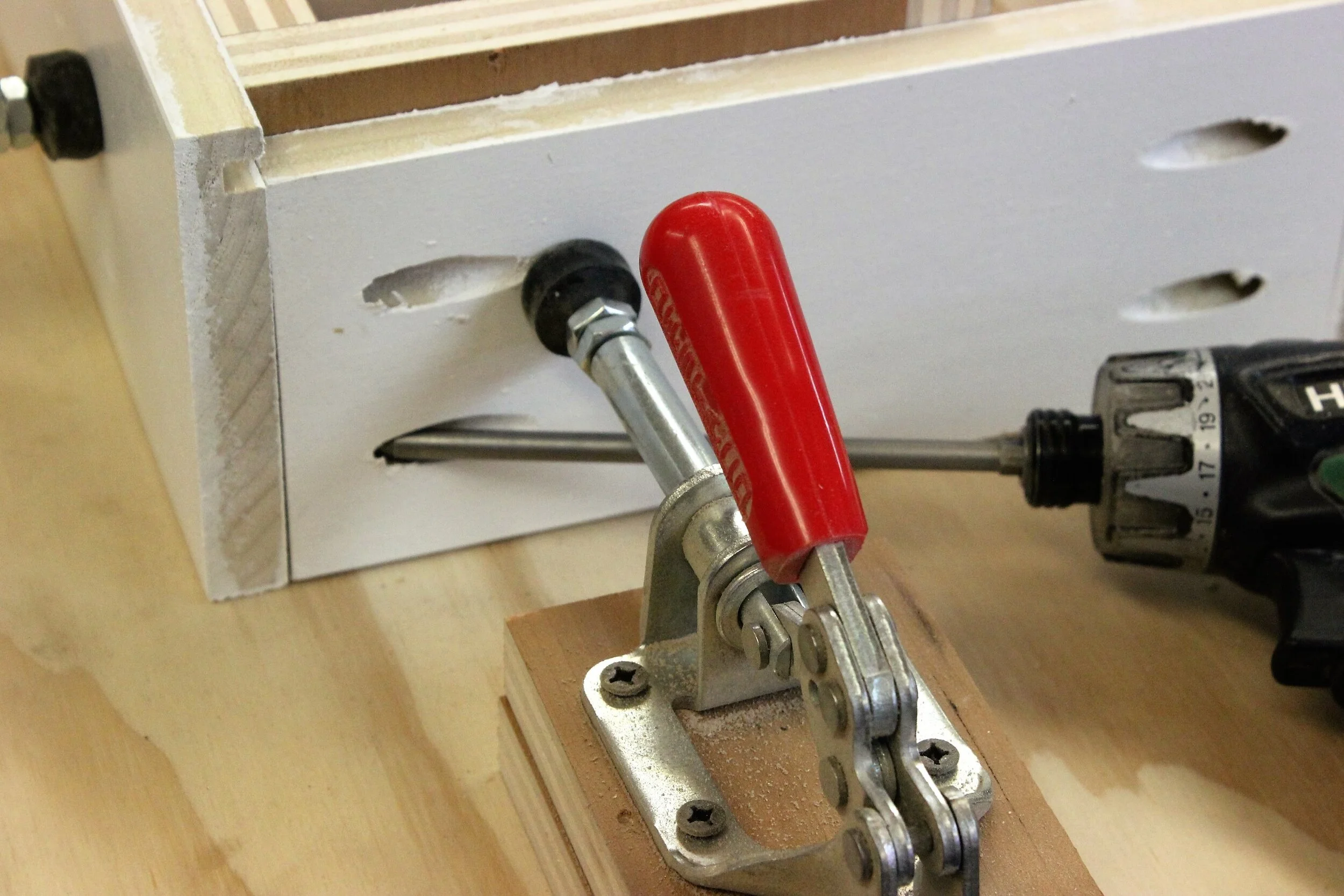

View fullsize …allowing you to screw in the walls without any movement.
View fullsize Leg holder or other pieces to allow for shaping - Michael Fortune design

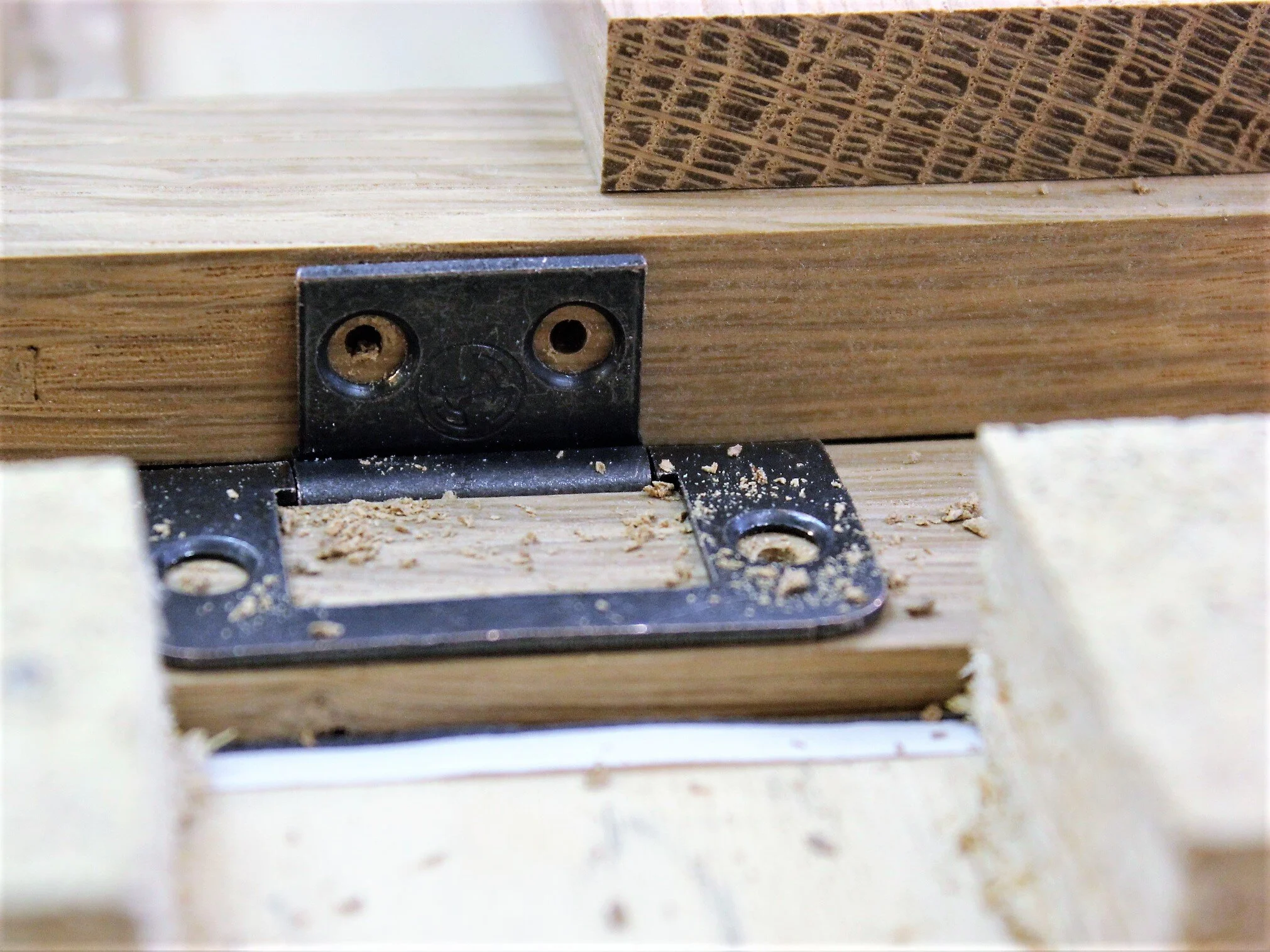

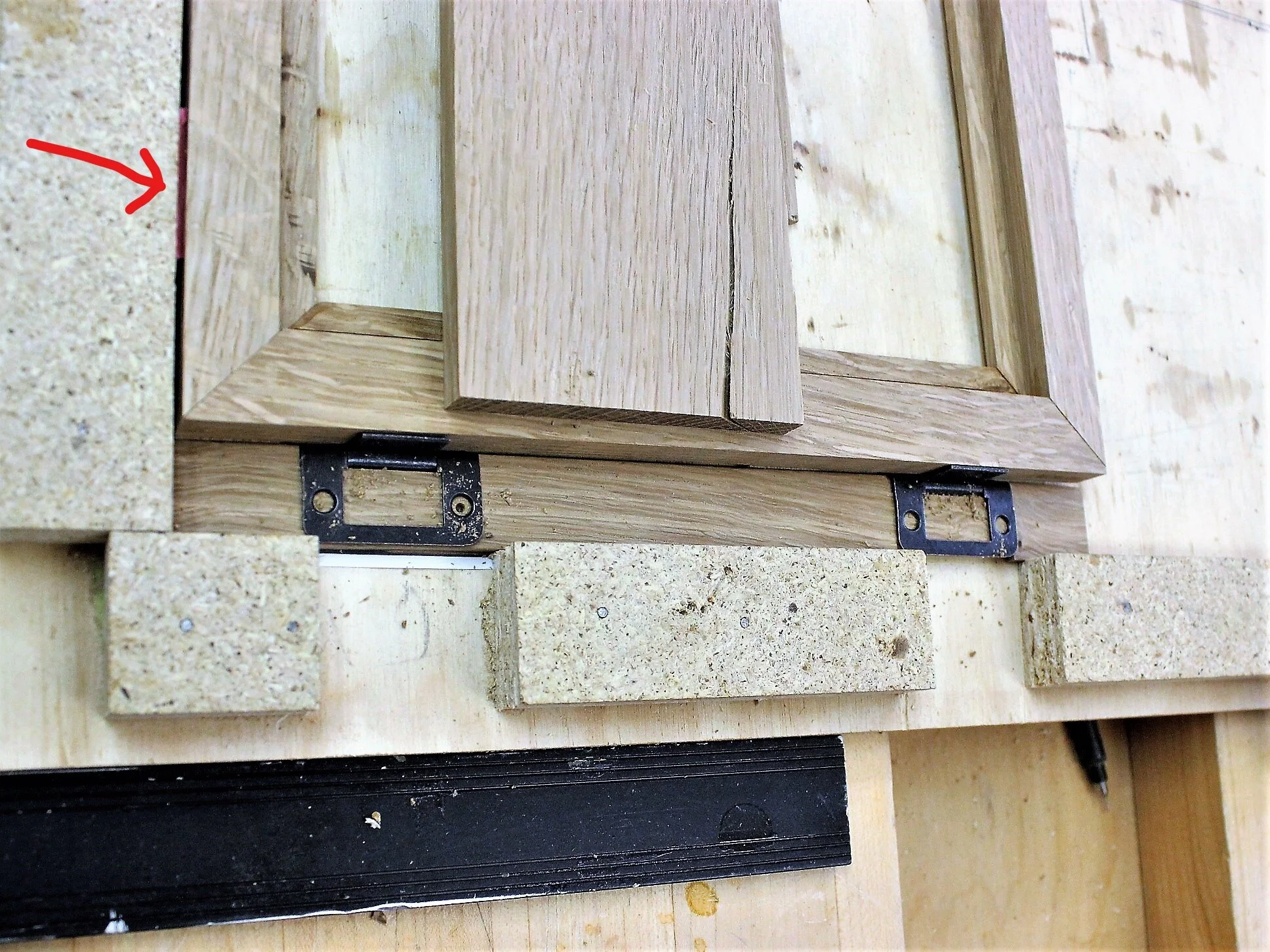

View fullsize Hinge position jig for small doors – drill holes in the finished jamb then…
View fullsize …insert a 1/16 spacer to shift the door up…
View fullsize …and drill your holes. Voila. 1/16 clearance at the bottom of your door opening.

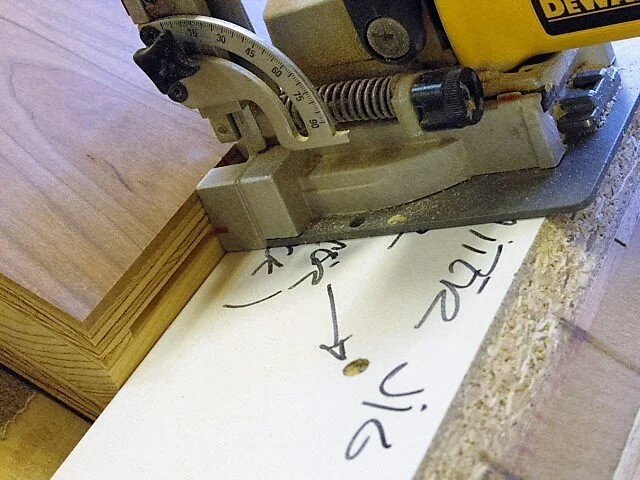

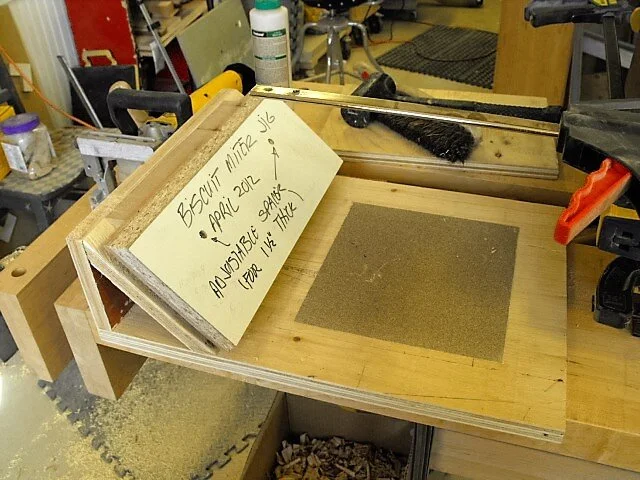

View fullsize Biscuit miter jig – sandpaper to secure piece

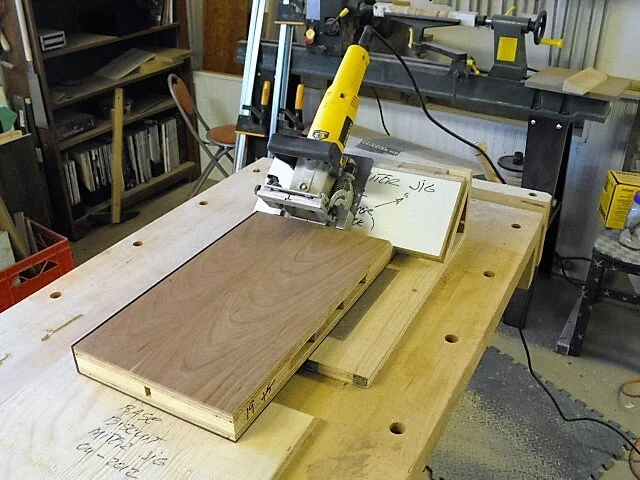

View fullsize Place your component (showing - 2-inch-thick) and cut your holes
View fullsize Place your component (showing - 2-inch-thick) and cut your holes

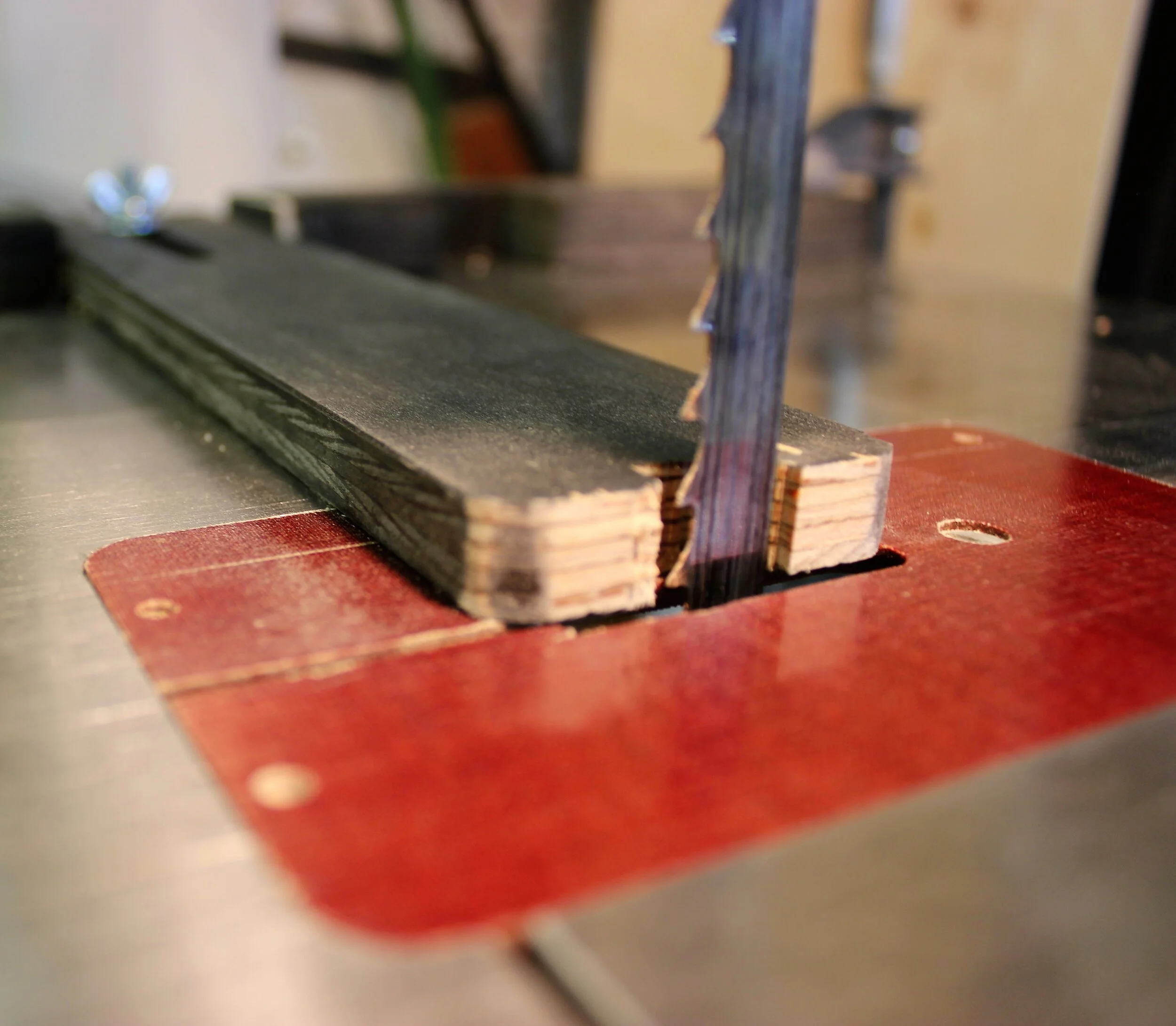

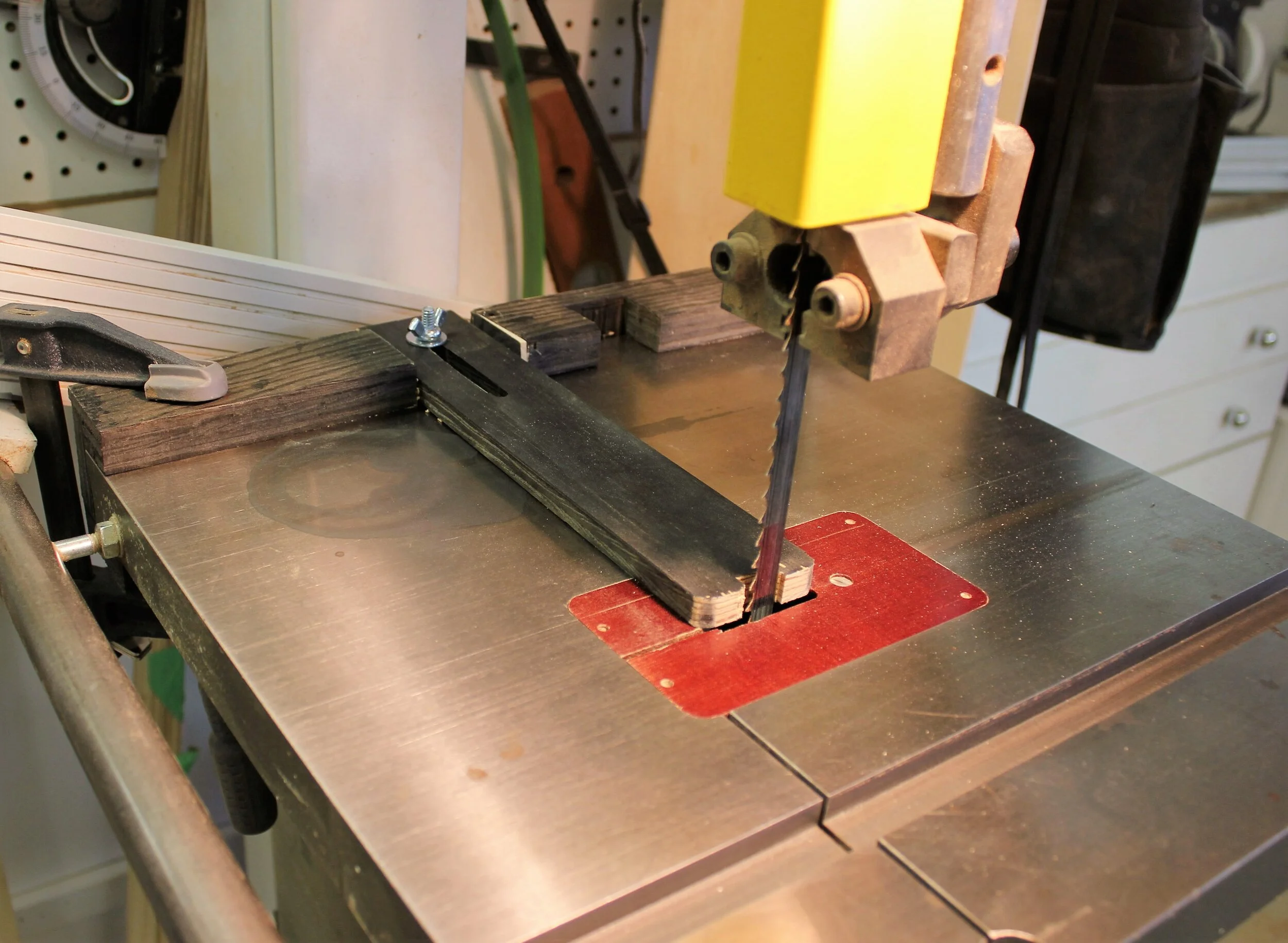

View fullsize Pattern cutting jig for the band saw
View fullsize Pattern cutting jig for the band saw
View fullsize The working “square” –keeps things square, put in nails to hold pieces, etc.

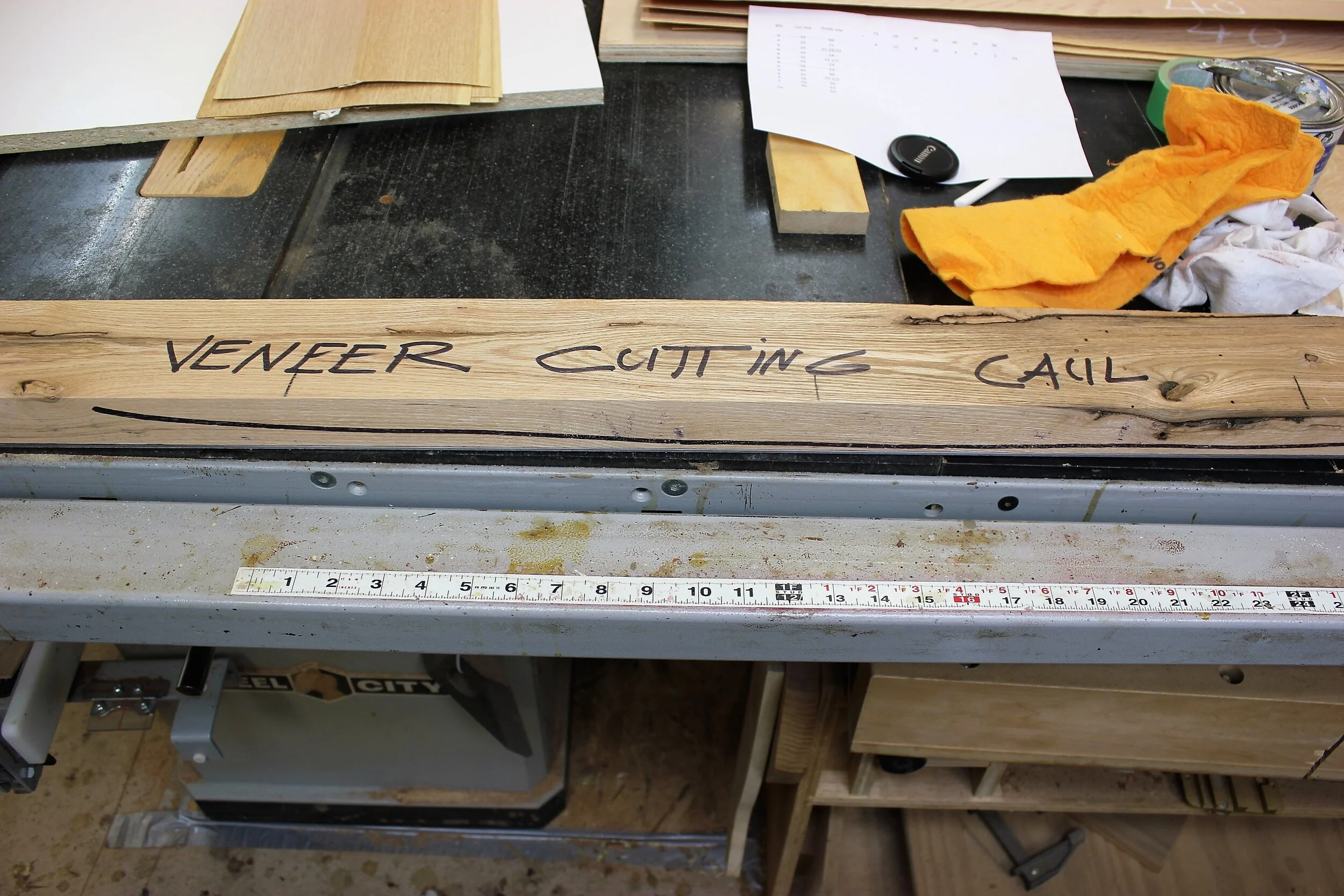

View fullsize Veneer cutting caul – for cutting long stacks of veneer

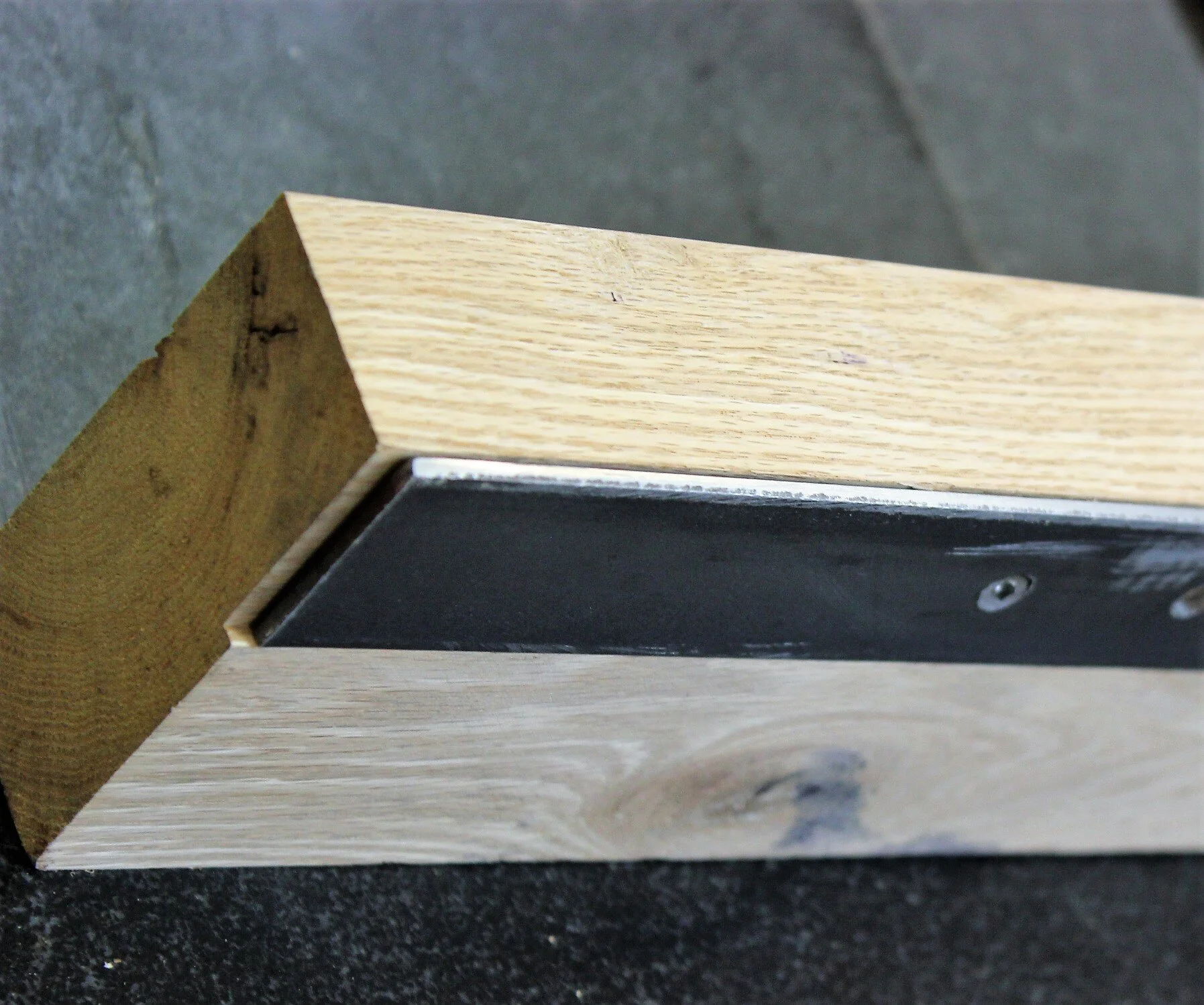

View fullsize Metal straight edge protruding 1/32

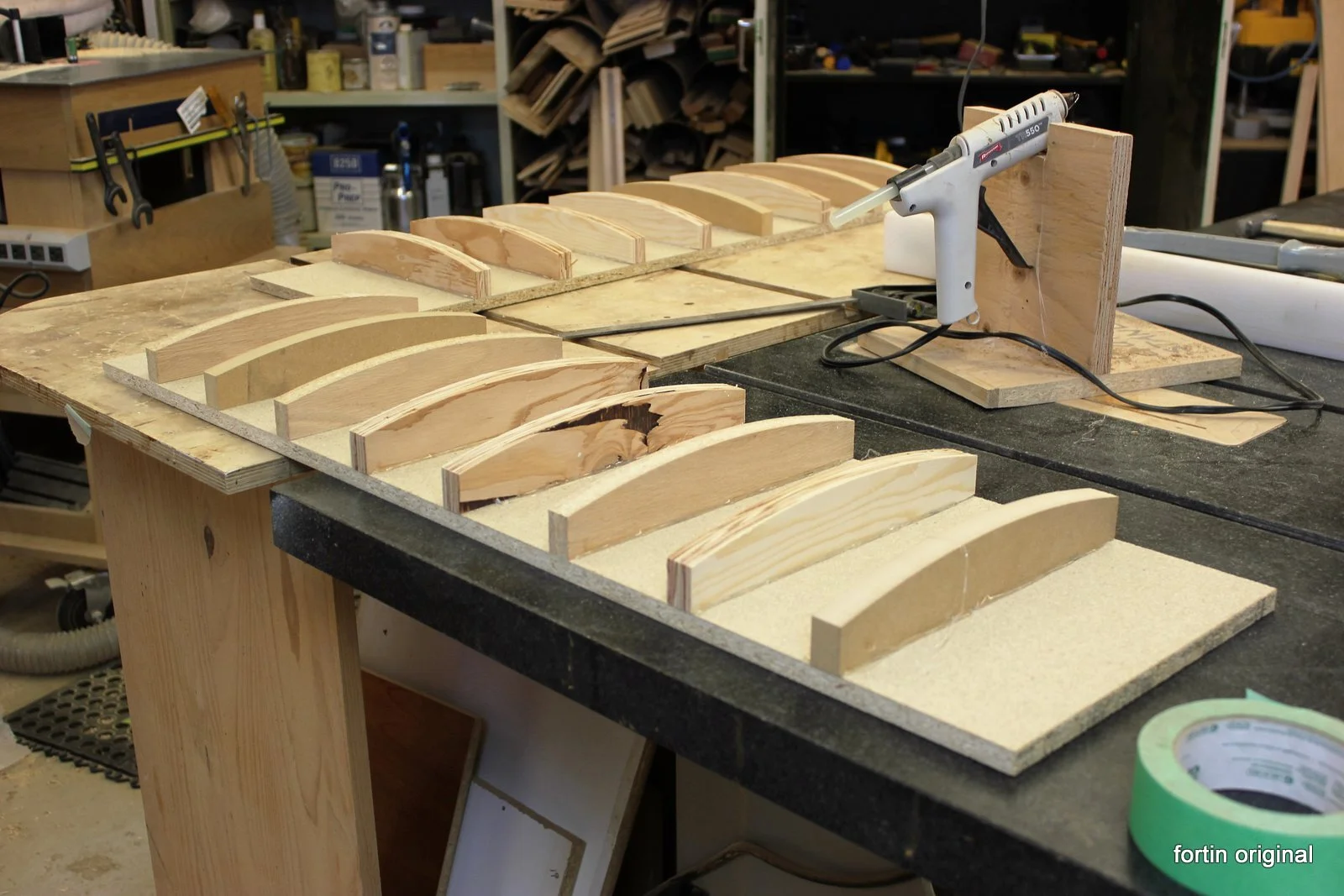

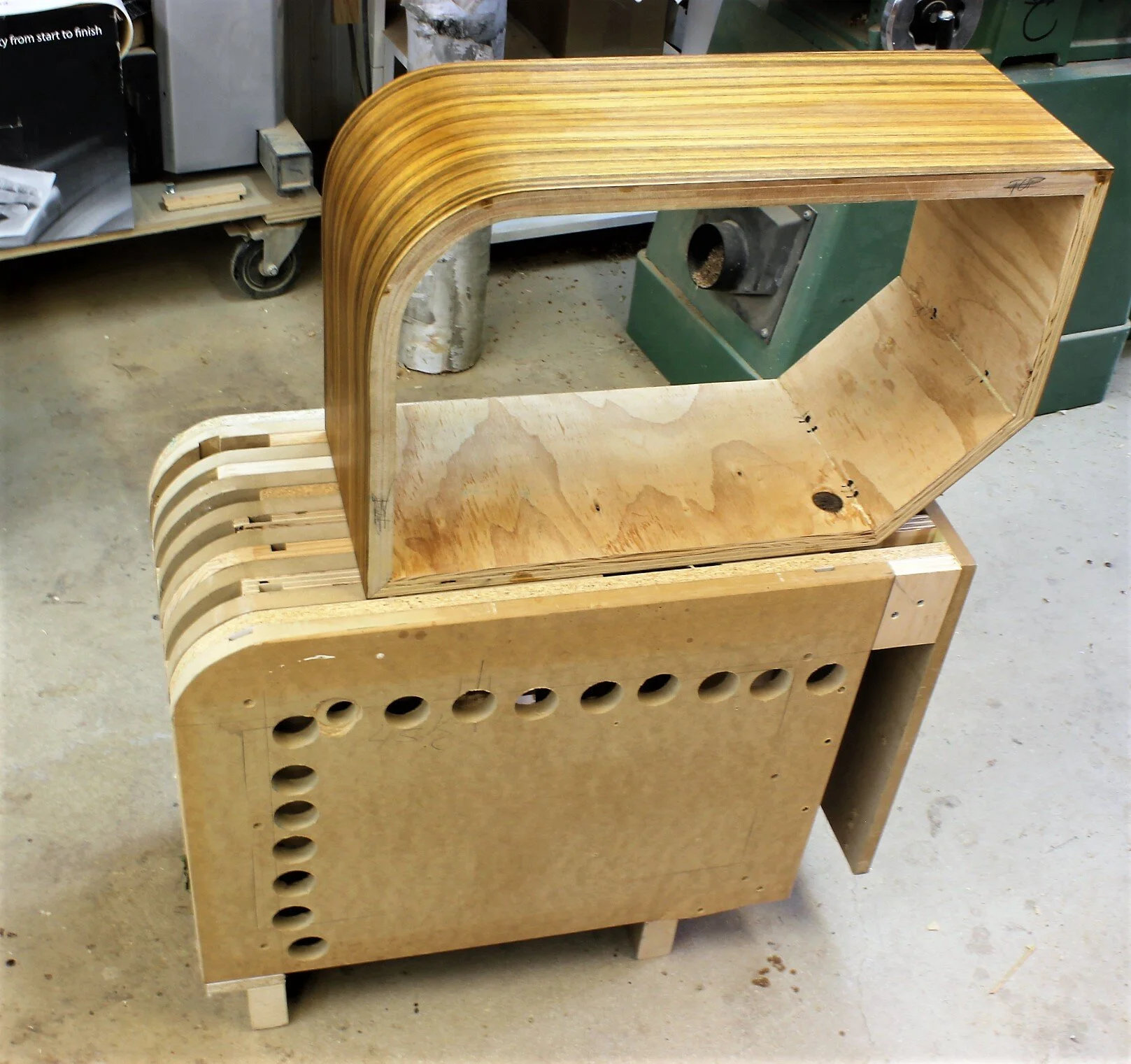

View fullsize Bending jig – each hole had a clamp pulling down the layers
View fullsize Bending jig – each hole had a clamp pulling down the layers

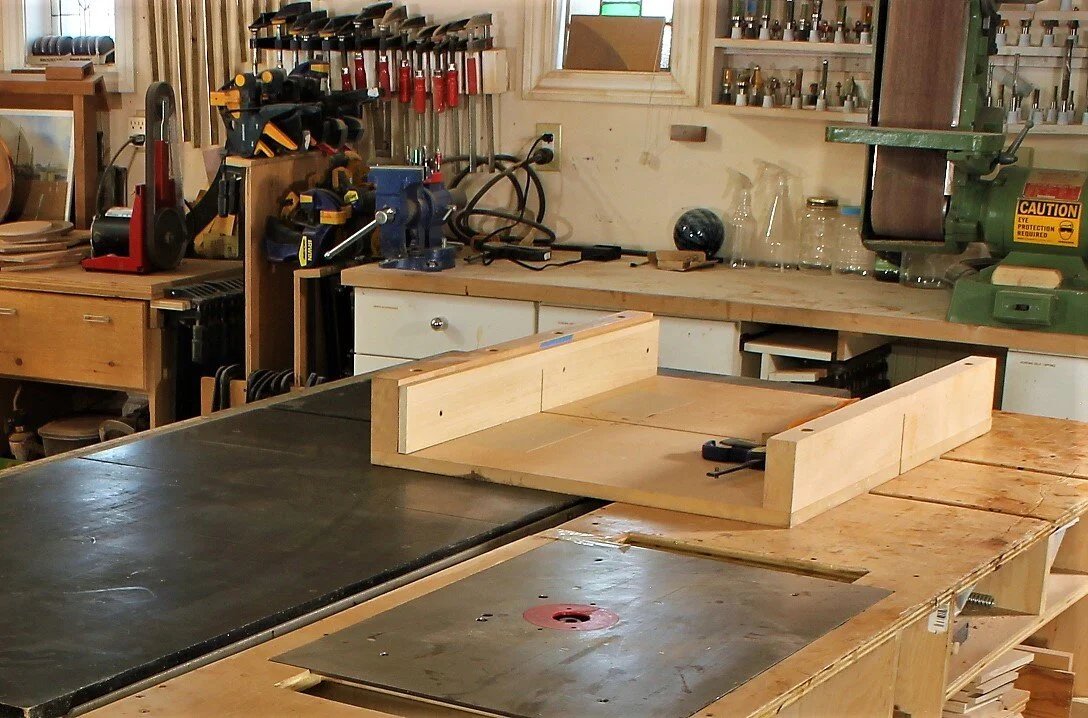

View fullsize Table sled – ESSENTIAL in your shop
View fullsize Variety of sleds for specific tasks – i.e. miters for small boxes, wide slot for dado blades, etc.

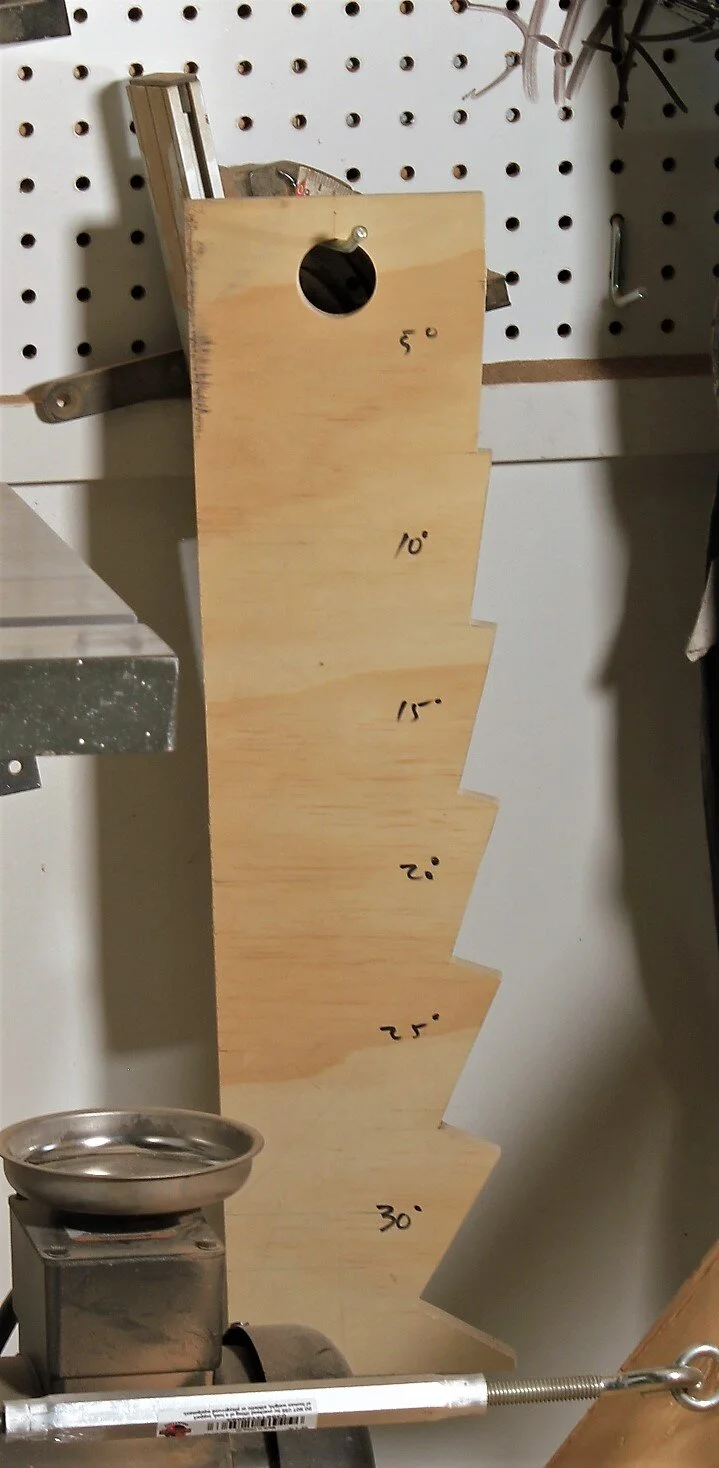

View fullsize To make angle wedges used in glue ups or assembly
View fullsize Variety of hinge jigs

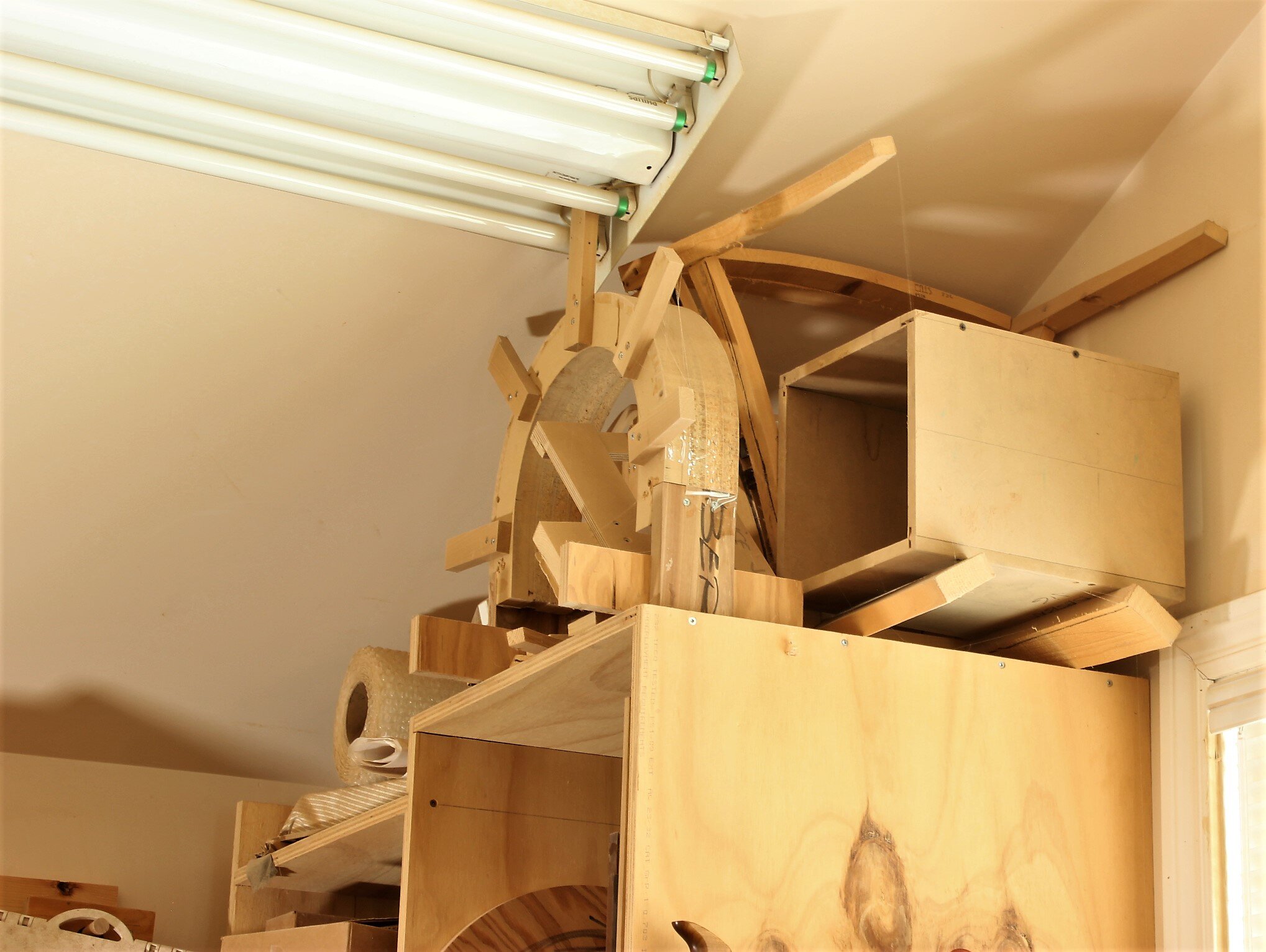

View fullsize I have jigs tucked everywhere even between light bulbs

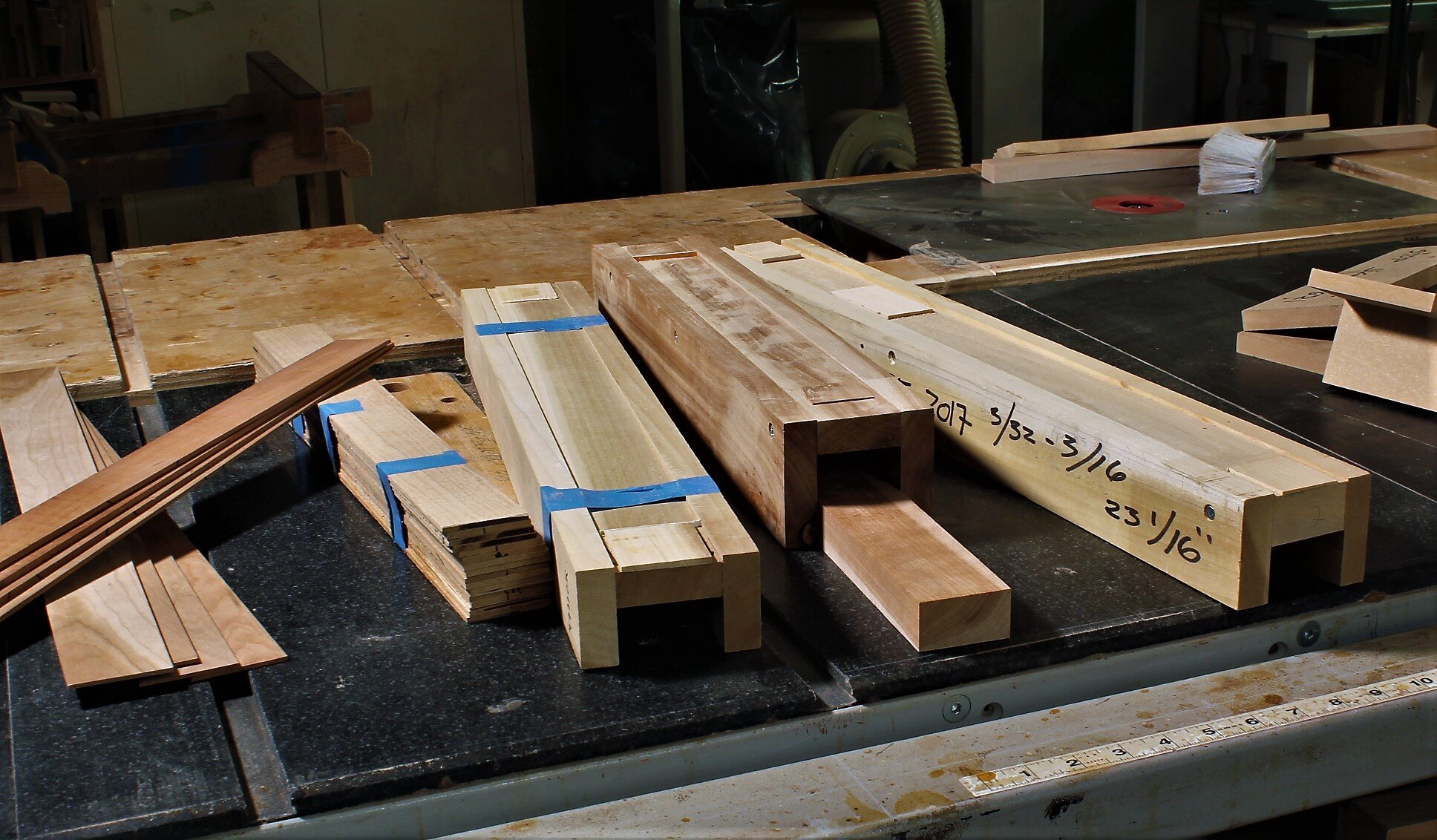

View fullsize Tapered lamination jig – for cutting the lamination and feeding through the planner.

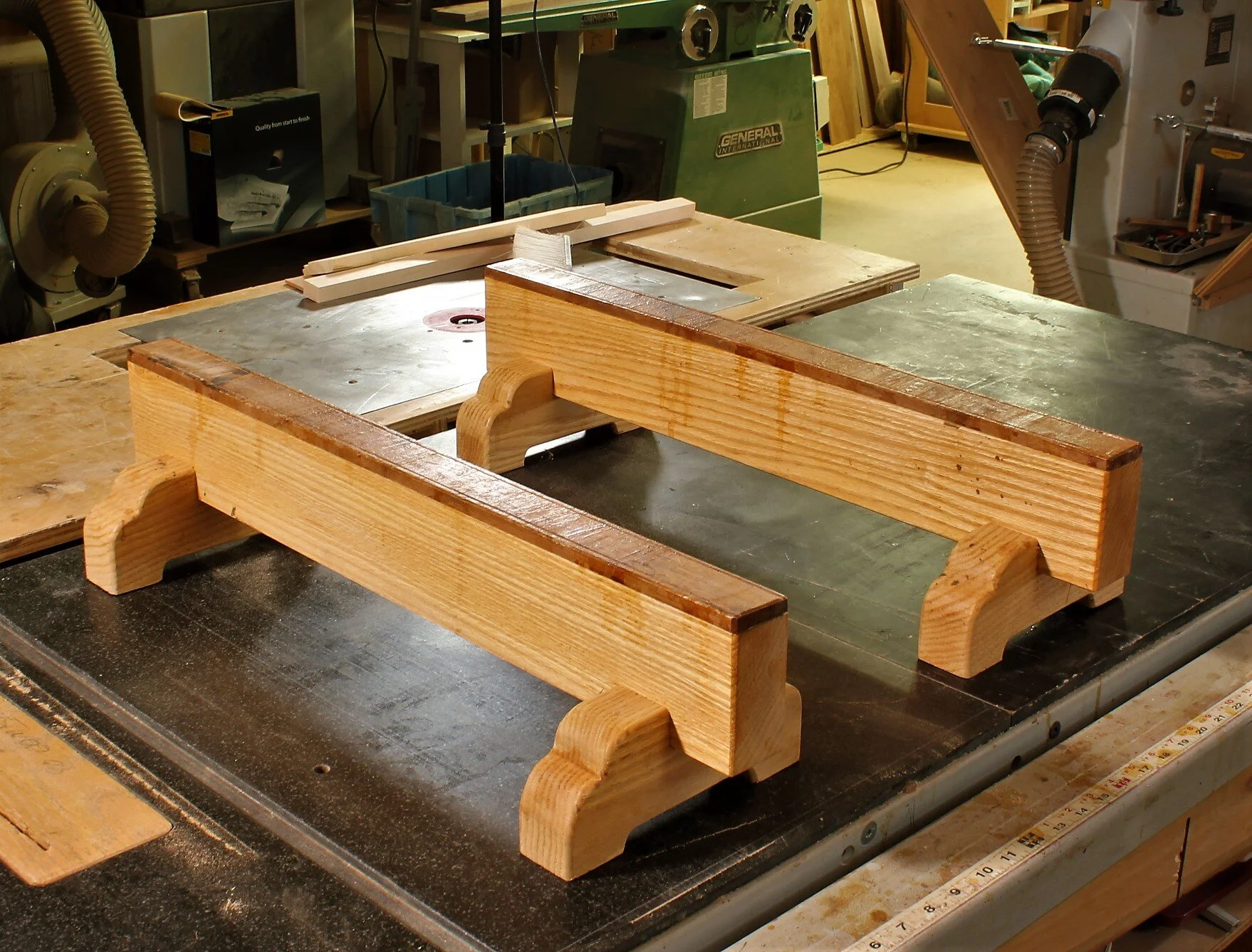

View fullsize Tabletop work horse – incredibly useful for clamping, holding, finishing…

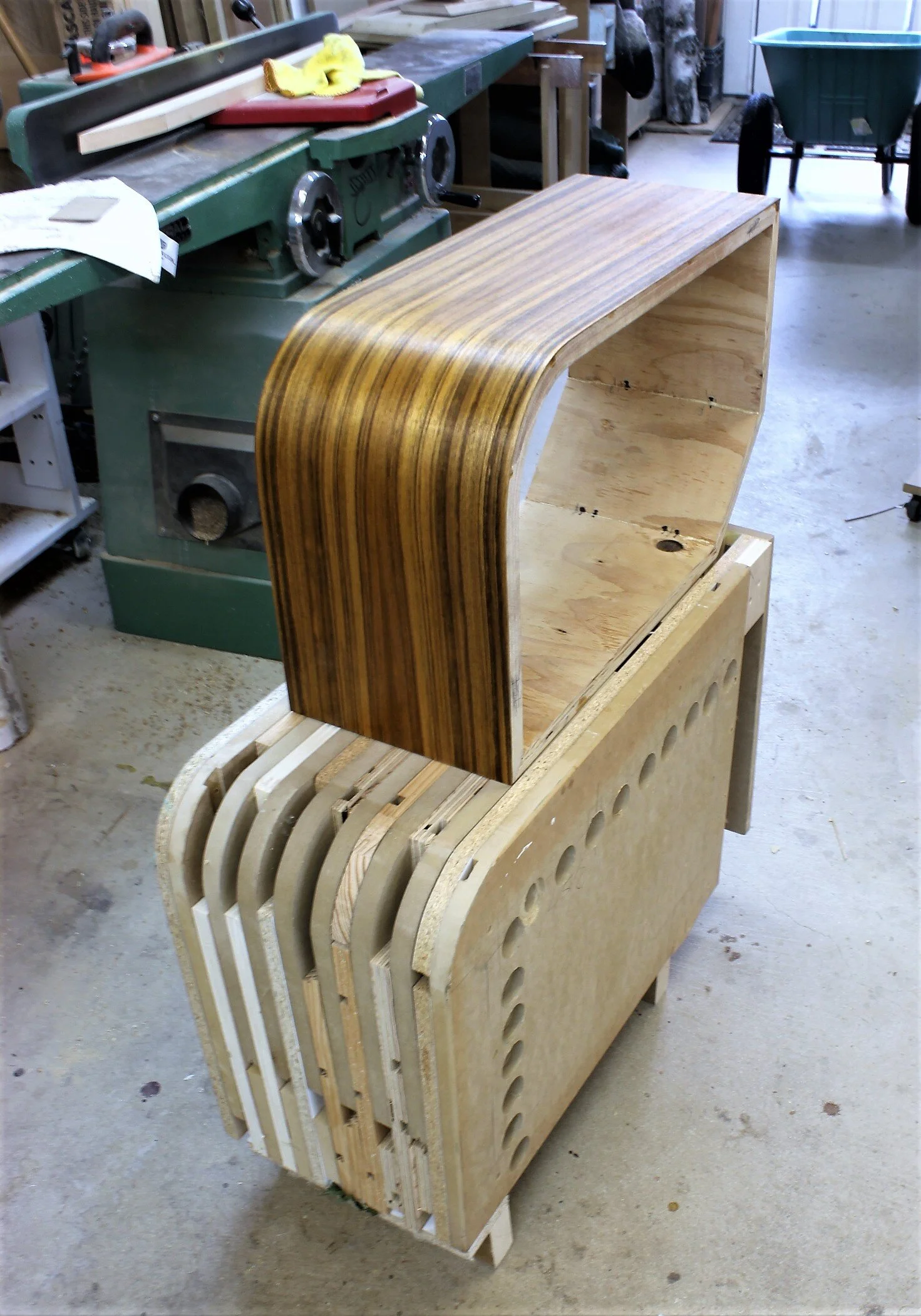

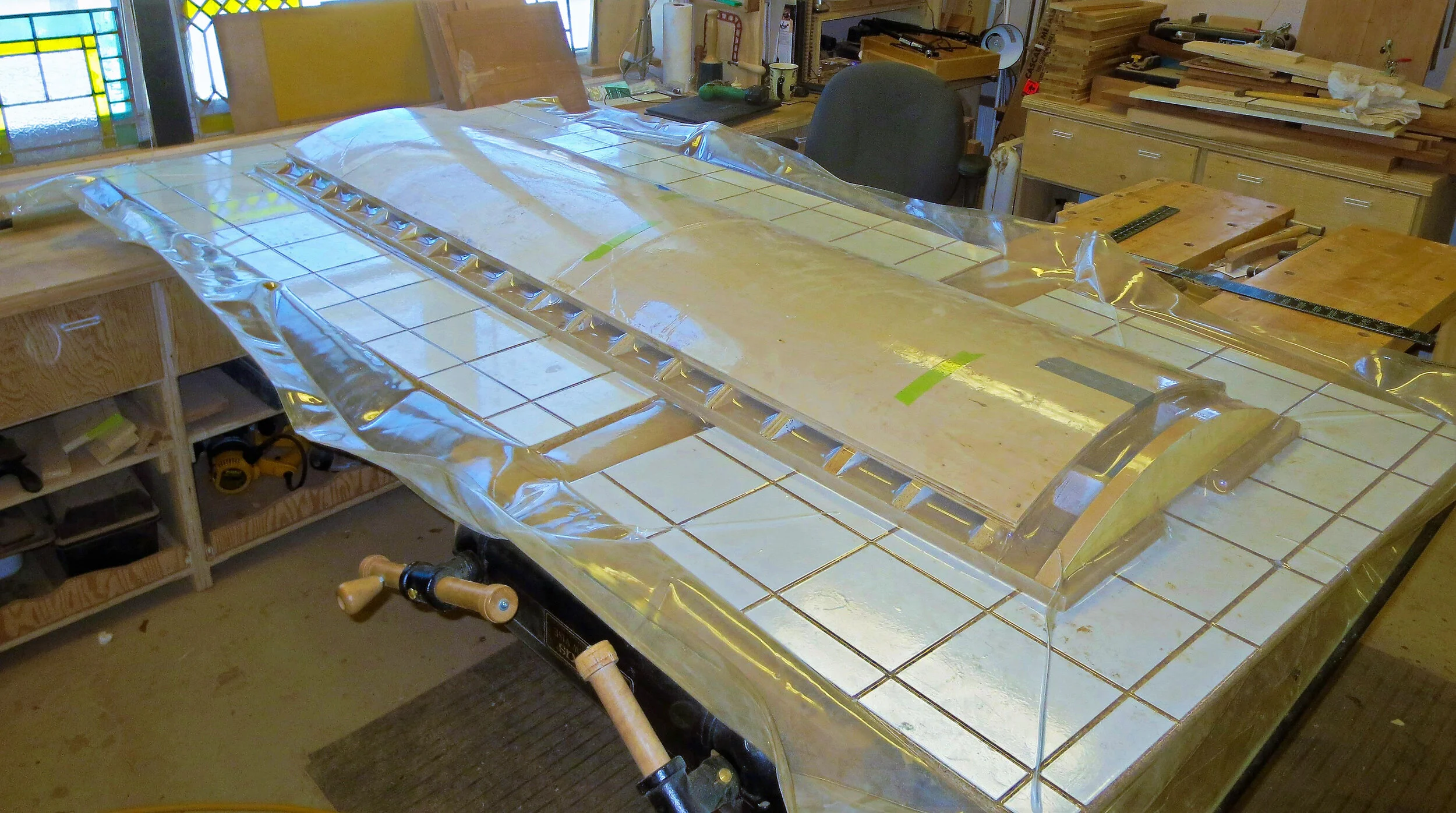

View fullsize Bending jig for laminated panels using the vacuum press.
View fullsize Cauls – provides a wider clamping pressure area reducing the number of clamps needed

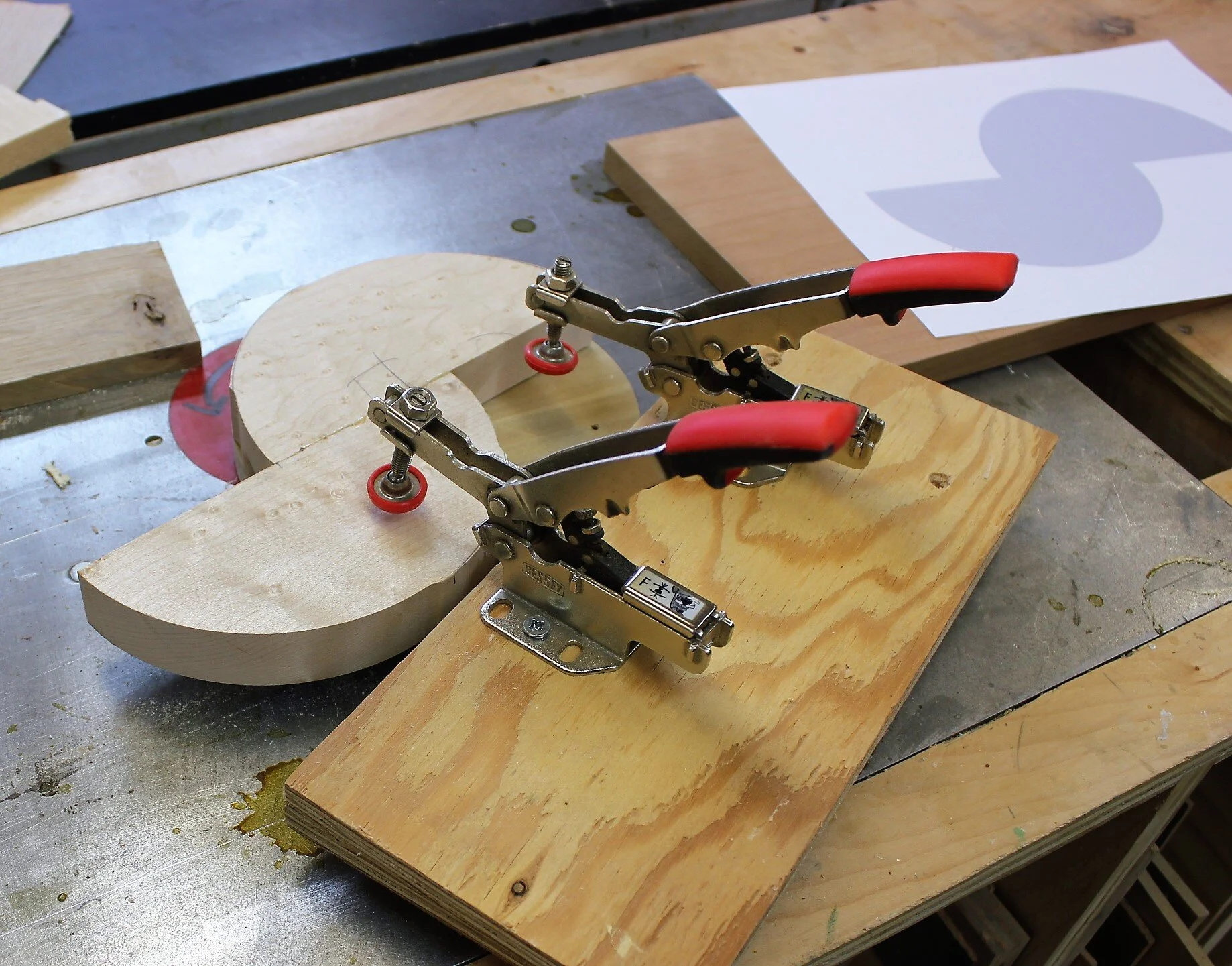

View fullsize Hold downs to secure your piece when shaping

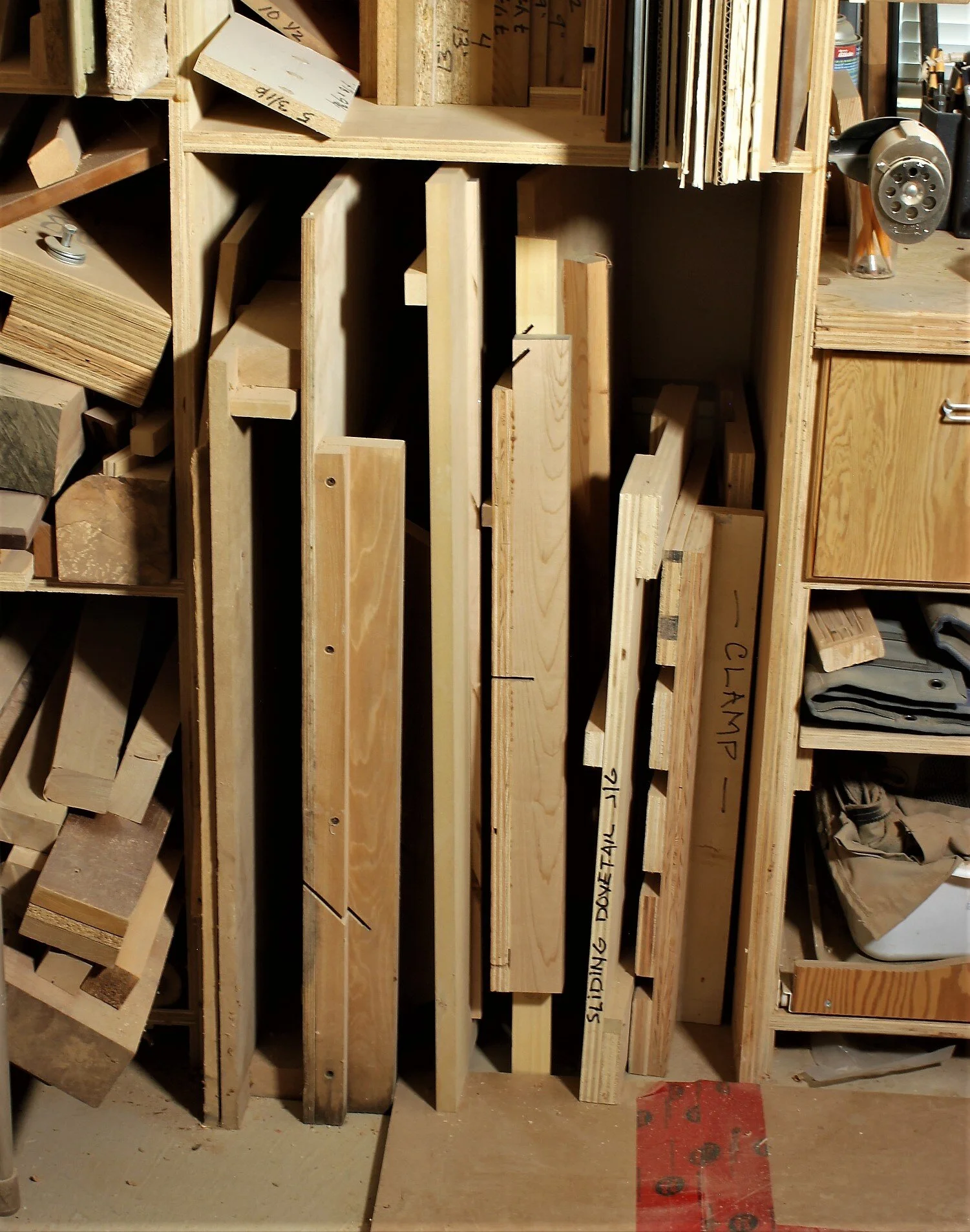

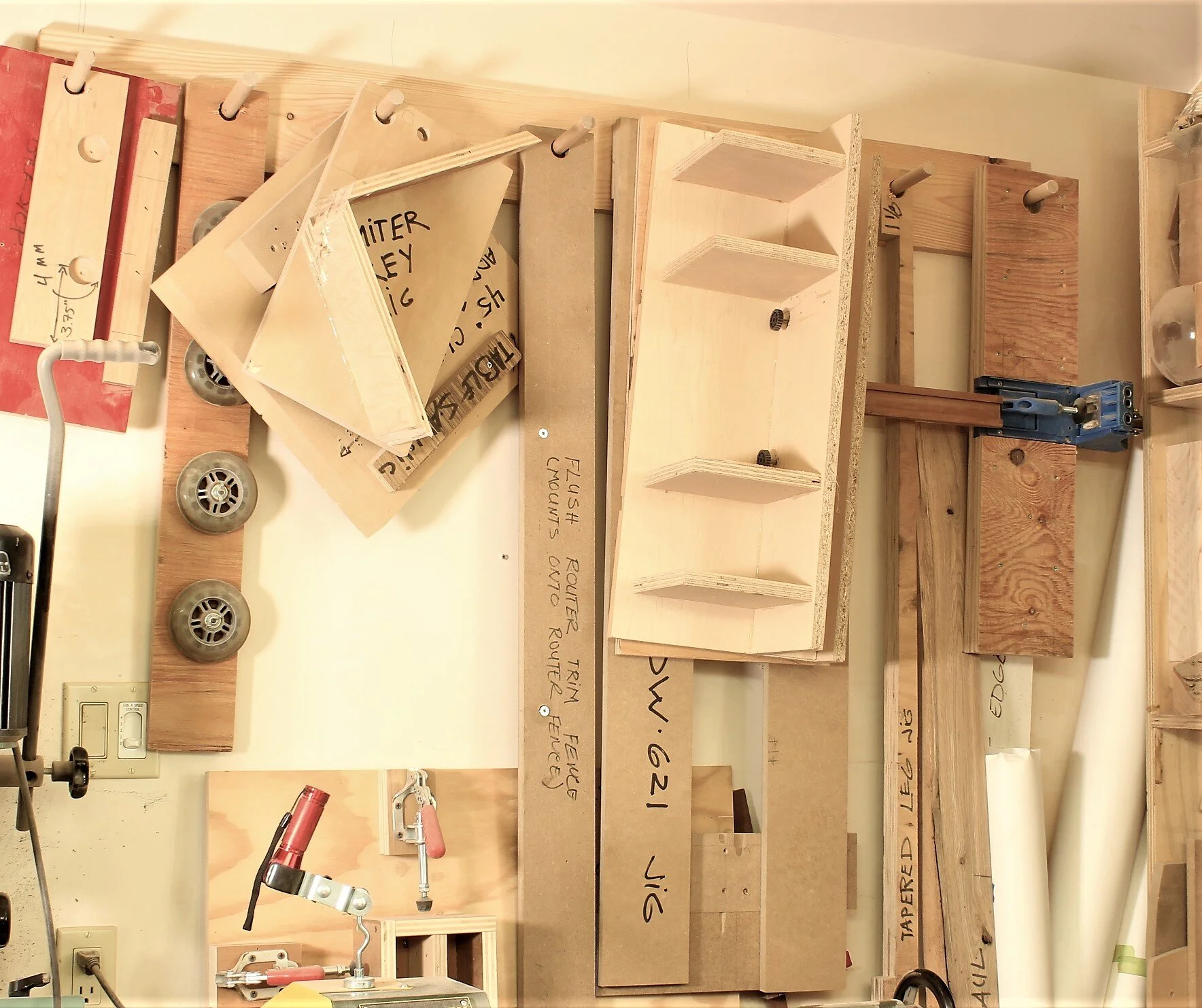

View fullsize Jig wall – they take up space and don’t fit well on shelves
